2011 Kawasaki Vulcan Classic VN900 Front Fork OEM Parts Diagram

Submodel VN900BBFA Vulcan 900 Classic (2011)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

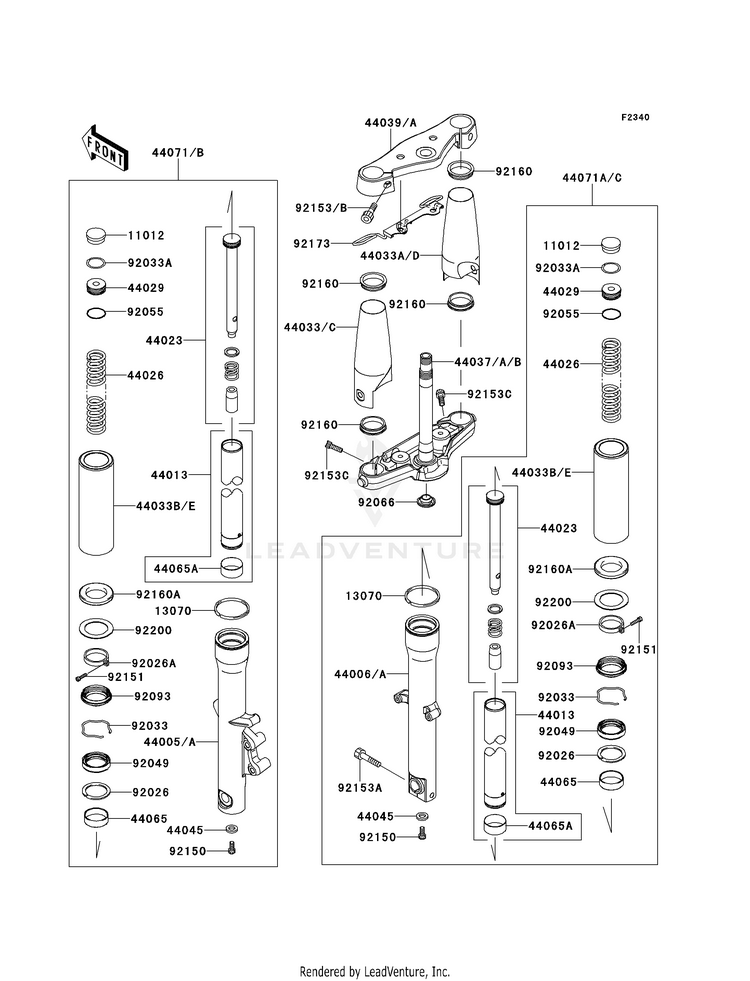

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1561CAP,FORK TOP
Usually ships in 7-10 business days
1307013070-0056GUIDE
Usually ships in 7-10 business days
4400544005-0043PIPE-LEFT FORK OUTER
Usually ships in 7-10 business days
4400644006-0104

(replaces part #
44006-0073)

PIPE-RIGHT FORK OUTER
Usually ships in 7-10 business days
4401344013-0257

(replaces part #
44013-0049)

PIPE-FORK INNER
Usually ships in 7-10 business days
4402344023-0042CYLINDER-SET-FORK
Usually ships in 7-10 business days
4402644026-0074SPRING-FRONT FORK
Usually ships in 7-10 business days
4402944029-0008SEAT-FORK SPRING
Usually ships in 7-10 business days
4403344033-0035COVER-FORK,LH
Usually ships in 7-10 business days
44033A44033-0037COVER-FORK,RH
Usually ships in 7-10 business days
44033B44033-0039COVER-FORK
Usually ships in 7-10 business days
4403744037-0068HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-0062HOLDER-FORK UPPER
Usually ships in 7-10 business days
4404544045-051GASKET,FORK CYLINDER BOLT
10+ In-Stock
4406544065-0019BUSHING-FRONT FORK
Usually ships in 7-10 business days
44065A44065-1087BUSHING-FRONT FORK,INNER PIPE
Usually ships in 7-10 business days
4407144071-1087

(replaces part #
44071-0316)

DAMPER-ASSY,FORK,LH
Usually ships in 7-10 business days
44071A44071-1088

(replaces part #
44071-0662)

DAMPER-ASSY,FORK,RH
Usually ships in 7-10 business days
9202692026-0090SPACER,FORK
Usually ships in 7-10 business days
92026A92026-1515SPACER
Usually ships in 7-10 business days
9203392033-1222RING-SNAP
Usually ships in 7-10 business days
92033A92033-1223RING-SNAP,SPRING SEAT
Usually ships in 7-10 business days
9204992049-0058SEAL-OIL
10+ In-Stock
9205592055-1363RING-O,SPRING SEAT
Usually ships in 7-10 business days
9206692066-0078PLUG
Usually ships in 7-10 business days
9209392093-0035SEAL,DUST
10+ In-Stock
9215092150-1432BOLT,SOCKET,8X18
Usually ships in 7-10 business days
9215192151-1356BOLT,SOCKET,4X16
1 In-Stock
9215392153-0500BOLT,SOCKET,8X30
Usually ships in 7-10 business days
92153A92153-0533BOLT
Usually ships in 7-10 business days
92153C92153-1376BOLT,SOCKET,10X25
Usually ships in 7-10 business days
9216092160-1892DAMPER
Usually ships in 7-10 business days
92160A92160-1927DAMPER
Usually ships in 7-10 business days
9217392173-0165CLAMP
Usually ships in 7-10 business days
9220092200-1417WASHER
Usually ships in 7-10 business days
