2012 Kawasaki Vulcan Classic LT VN900 Rear Master Cylinder OEM Parts Diagram

Submodel VN900DCF Vulcan 900 Classic LT (2012)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR MASTER CYLINDER

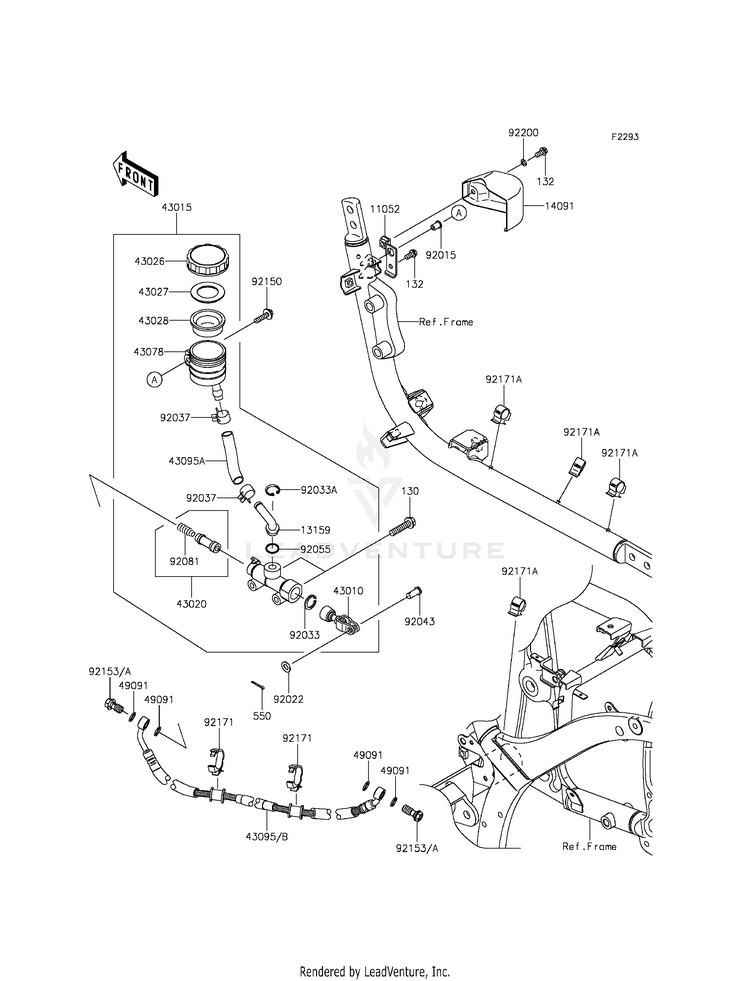

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105211052-1305BRACKET,RESERVOIR TANK
Usually ships in 7-10 business days
130130BB0835BOLT-FLANGED,8X35
Usually ships in 7-10 business days
1315913159-1052CONNECTOR,RR MASTER CYLINDER
Usually ships in 7-10 business days
132132BB0612BOLT-FLANGED-SMALL,6X12
10+ In-Stock
1409114091-0536-18RCOVER,RESERVOIR TANK,F.S.BLACK
Usually ships in 7-10 business days
4301043010-1062ROD-ASSY-BRAKE
Usually ships in 7-10 business days
4301543015-0081CYLINDER-ASSY-MASTER,RR
Usually ships in 7-10 business days
4302043020-1057PISTON-COMP-BRAKE
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$29.55$28.0710+ In-Stock
4302643026-1051CAP-BRAKE
Usually ships in 7-10 business days
4302743027-1051PLATE-DIAPHRAGM
2 In-Stock
4302843028-1057DIAPHRAGM,MASTER CYLINDER
2 In-Stock
4307843078-1178RESERVOIR,RR MASTER CYLINDER
Usually ships in 7-10 business days
43095A43095-0306HOSE-BRAKE,RR MASTER CYLINDER
Usually ships in 7-10 business days
43095B43095-2163

(replaces part #
43095-0682)

HOSE-BRAKE,RR
Usually ships in 7-10 business days
4909149091-0001WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
550550AA2015PIN-COTTER,2.0X15
10+ In-Stock
9201592015-1700NUT
5 In-Stock
92022410AA0800

(replaces part #
92022-1582)

WASHER-PLAIN-SMALL,8MM
10+ In-Stock
9203392033-0079RING-SNAP,20.9X24.6X1.2
8 In-Stock
92033A92033-1186RING-SNAP,20.5MM
7 In-Stock
9203792037-1547CLAMP,BRAKE HOSE
Usually ships in 7-10 business days
9204392043-1013PIN,8X16
2 In-Stock
9205592055-0741RING-O,14.8X2.4
10+ In-Stock
9208192081-1737SPRING,MASTER CYLINDER
Usually ships in 7-10 business days
9215092150-1829BOLT,6X25
Usually ships in 7-10 business days
92153A92153-1419BOLT,OIL,L=23
10+ In-Stock
9217192171-0782CLAMP
Usually ships in 7-10 business days
92171A92171-1424CLAMP,15MM DIA.
3 In-Stock
9220092200-1465WASHER,6.2X10X1
3 In-Stock
