2013 Kawasaki Vulcan Classic LT VN900 Chassis Electrical Equipment OEM Parts Diagram

Submodel VN900DDF Vulcan 900 Classic LT (2013)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CHASSIS ELECTRICAL EQUIPMENT

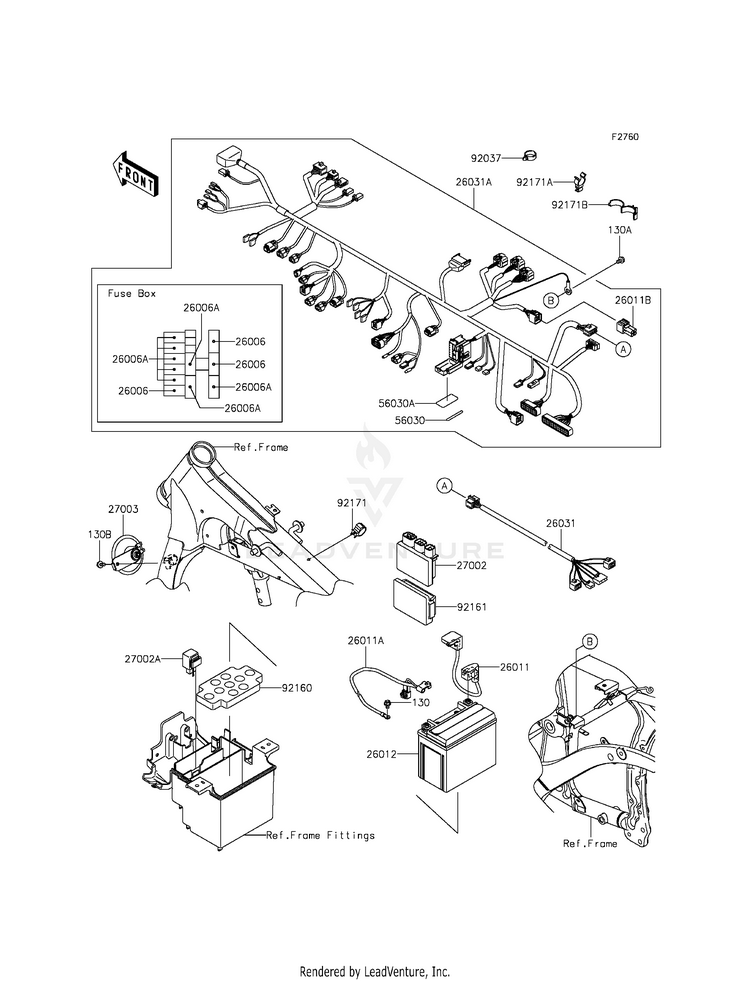

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0610BOLT-FLANGED,6X10
10+ In-Stock
130A130BB0610BOLT-FLANGED,6X10
10+ In-Stock
130B130BB0612BOLT-FLANGED,6X12
10+ In-Stock
2600626006-0001FUSE,MINI BLADE,15A,BLUE
Usually ships in 7-10 business days
26006A26006-1078FUSE,MINI BLADE,10A,RED
6 In-Stock
2601126011-0089WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
26011A26011-0090WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
26011B26011-0271WIRE-LEAD,CAP
Usually ships in 7-10 business days
2601226012-1253

(replaces part #
26012-0094)

YTX12-BS 0.59L
Usually ships in 7-10 business days
2603126031-0448HARNESS,RR
Usually ships in 7-10 business days
26031A26031-0962HARNESS,MAIN
Usually ships in 7-10 business days
2700227002-0050

(replaces part #
27002-0007)

RELAY-ASSY
4 In-Stock
27002A27002-1101RELAY-ASSY,TURN SIGNAL
Usually ships in 7-10 business days
2700327003-0039HORN
Usually ships in 7-10 business days
5603056030-0016LABEL,FUSE BOX
Usually ships in 7-10 business days
56030A56030-0046LABEL,FUSE BOX
Usually ships in 7-10 business days
9203792037-1827CLAMP,HOSE
10+ In-Stock
9216092160-1635DAMPER,BATTERY
Usually ships in 7-10 business days
9216192161-0203DAMPER,RELAY BOX
Usually ships in 7-10 business days
9217192171-0081CLAMP,20MM DIA.
5 In-Stock
92171A92171-0347CLAMP,CABLE
Usually ships in 7-10 business days
92171B92171-1423CLAMP,10MM DIA.
4 In-Stock
