2013 Kawasaki Vulcan Classic LT VN900 Ignition Switch/Locks/Reflectors OEM Parts Diagram

Submodel VN900DDF Vulcan 900 Classic LT (2013)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

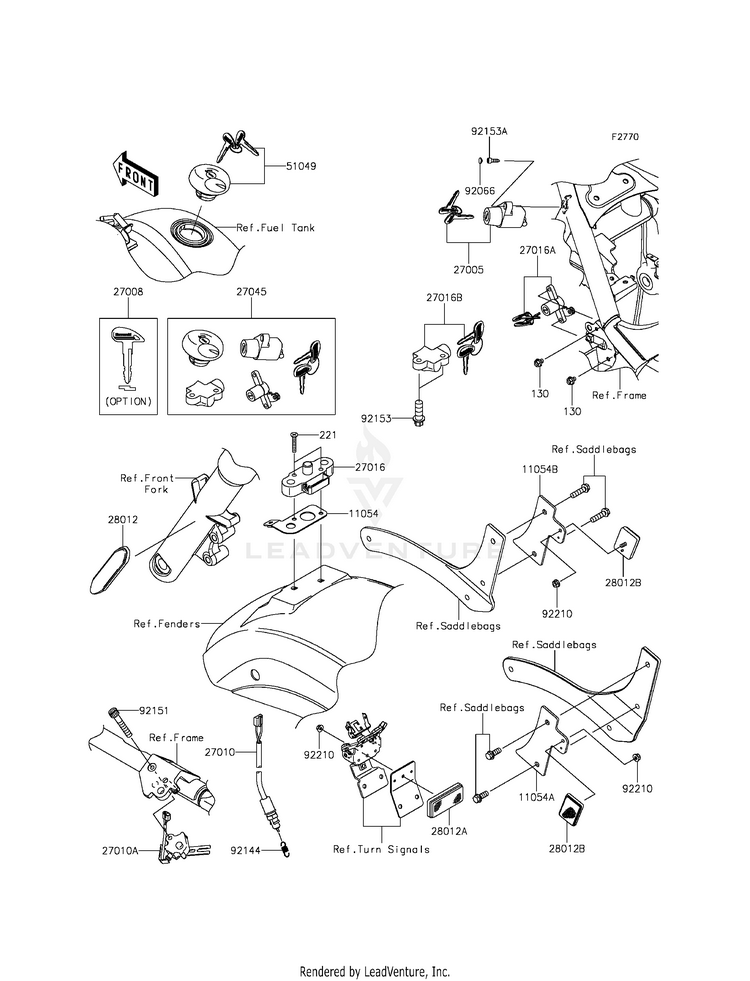

IGNITION SWITCH/LOCKS/REFLECTORS

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105411054-0492BRACKET,SEAT LOCK
Usually ships in 7-10 business days
11054A11054-0809BRACKET,REFLECTOR,RR,LH
Usually ships in 7-10 business days
11054B11054-0810BRACKET,REFLECTOR,RR,RH
Usually ships in 7-10 business days
130130BB0608BOLT-FLANGED,6X8
7 In-Stock
221221AB0635SCREW-CSK-CROS,6X35
Usually ships in 7-10 business days
2700527005-0032SWITCH-ASSY-IGNITION
Usually ships in 7-10 business days
2700827008-0042KEY-LOCK,BLANK | (OPTION)
Usually ships in 7-10 business days
2701027010-0050SWITCH,REAR BRAKE
1 In-Stock
27010A27010-1470SWITCH,SIDE STAND
Usually ships in 7-10 business days
2701627016-1098LOCK-ASSY,SEAT STRIKER
Usually ships in 7-10 business days
27016A27016-5341LOCK-ASSY,SEAT
Usually ships in 7-10 business days
27016B27016-5342LOCK-ASSY,STEERING
Usually ships in 7-10 business days
2704527045-5323SWITCH-ASSY
Usually ships in 7-10 business days
2801228012-0019REFLECTOR-REFLEX
Usually ships in 7-10 business days
28012A28012-1077REFLECTOR-REFLEX
Usually ships in 7-10 business days
28012B28012-1088REFLECTOR-REFLEX
2 In-Stock
5104951049-5001CAP-TANK,FUEL
2 In-Stock
9206692066-1543PLUG
Usually ships in 7-10 business days
9214492144-1141SPRING,REAR BRAKE SWITCH
1 In-Stock
9215192151-1390BOLT,SOCKET,6X35
Usually ships in 7-10 business days
9215392153-1273BOLT,TORX,8X22
Usually ships in 7-10 business days
92153A92153-1685BOLT,SOCKET,5X16
Usually ships in 7-10 business days
9221092210-0007NUT,FLANGED,5MM
3 In-Stock
