2014 Kawasaki Ninja 1000 (ABS) Front Fork OEM Parts Diagram

Submodel ZX1000MEF Ninja 1000 ABS (2014)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

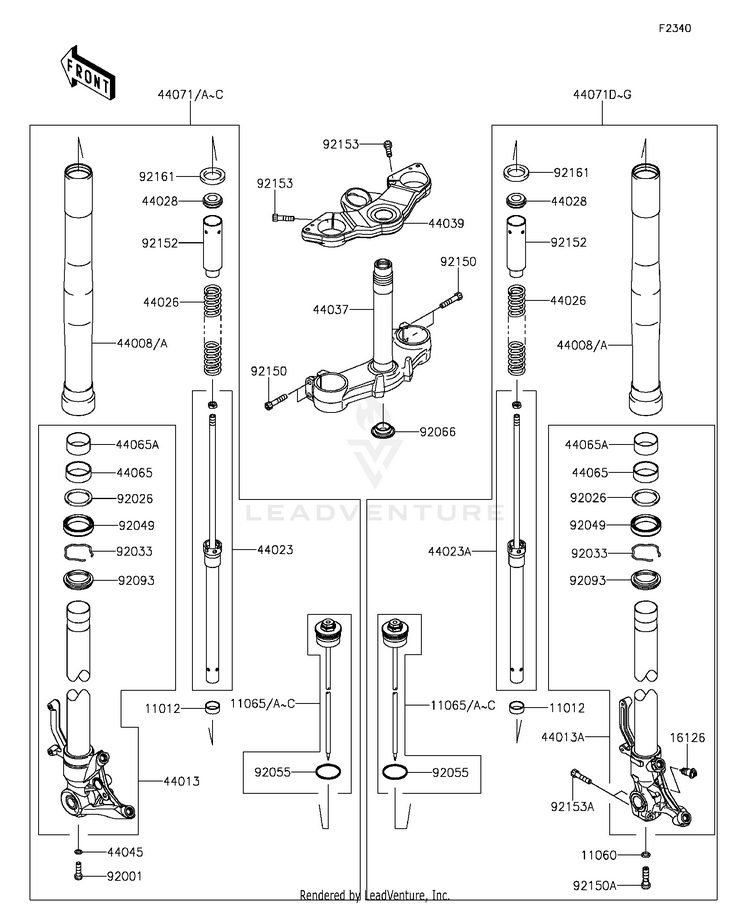

Front Fork

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1761CAP
Usually ships in 7-10 business days
1106011060-1180GASKET,FORK CYLINDER BOLT
7 In-Stock
11065A11065-0372-11GCAP,FORK BOLT COMP,GRAY
Usually ships in 7-10 business days
1612616126-0031VALVE,FORK
Usually ships in 7-10 business days
4401344013-0223PIPE-FORK INNER,LH
Usually ships in 7-10 business days
44013A44013-0224PIPE-FORK INNER,RH
Usually ships in 7-10 business days
4402344023-0117CYLINDER-SET-FORK,LH
Usually ships in 7-10 business days
44023A44023-0118CYLINDER-SET-FORK,RH
Usually ships in 7-10 business days
4402644026-0153SPRING-FRONT FORK
Usually ships in 7-10 business days
4402844028-1083GUIDE-FORK SPRING
Usually ships in 7-10 business days
4403744037-0140-18RHOLDER-FORK UNDER,F.S
Usually ships in 7-10 business days
4403944039-0105-18RHOLDER-FORK UPPER,F.S.BLACK
Usually ships in 7-10 business days
4404544045-051GASKET,FORK CYLINDER BOLT
10+ In-Stock
4406544065-0030BUSHING-FRONT FORK,GUIDE
8 In-Stock
44065A44065-0036BUSHING-FRONT FORK
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$50.00$42.9910+ In-Stock
4407144071-0900-39FDAMPER-ASSY,FORK,LH,G
Usually ships in 7-10 business days
44071D44071-0901-39FDAMPER-ASSY,FORK,RH,G
Usually ships in 7-10 business days
9200192001-1464BOLT,FORK CYLINDER
7 In-Stock
9202692026-1276SPACER,FORK OUTER
Usually ships in 7-10 business days
9203392033-1222RING-SNAP
Usually ships in 7-10 business days
9204992049-0125SEAL-OIL
6 In-Stock
9205592055-0131RING-O
3 In-Stock
9206692066-0032PLUG
Usually ships in 7-10 business days
9209392093-0035SEAL,DUST
10+ In-Stock
92150120CA0840

(replaces part #
92150-1512)

BOLT-SOCKET,8X40
10+ In-Stock
92150A92150-1514BOLT,FORK CYLINDER
Usually ships in 7-10 business days
9215292152-0263COLLAR
Usually ships in 7-10 business days
9215392153-0500BOLT,SOCKET,8X30
Usually ships in 7-10 business days
92153A92153-0537BOLT,SOCKET
Usually ships in 7-10 business days
9216192161-0418DAMPER
Usually ships in 7-10 business days
