2014 Kawasaki Ninja 1000 (ABS) Swingarm OEM Parts Diagram

Submodel ZX1000MEF Ninja 1000 ABS (2014)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

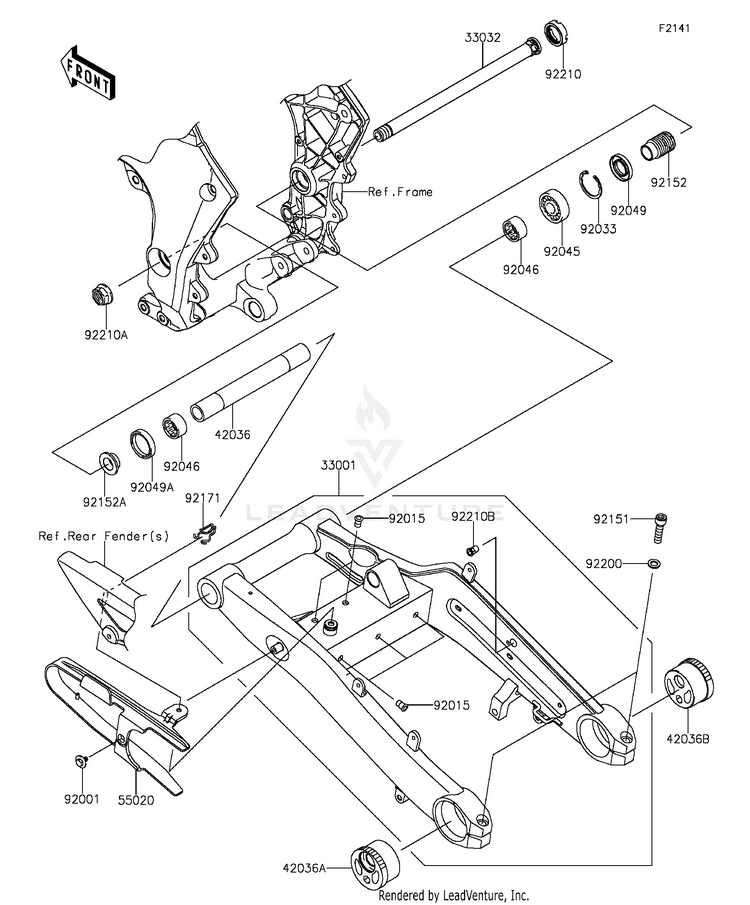

Swingarm

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
3300133001-0758-18R

(replaces part #
33001-0607-18R)

ARM-COMP-SWING,F.S.BLACK
Usually ships in 7-10 business days
3303233032-0044

(replaces part #
33032-0013)

SHAFT-SWING ARM
Usually ships in 7-10 business days
4203642036-0069SLEEVE,20.1X28X226
Usually ships in 7-10 business days
42036A42036-1153-KXSLEEVE,REAR AXLE,LH,SILVER
Usually ships in 7-10 business days
42036B42036-1265-KXSLEEVE,REAR AXLE,RH,SILVER
Usually ships in 7-10 business days
5502055020-0903GUARD,CHAIN
Usually ships in 7-10 business days
9200192001-1771BOLT,6X12
Usually ships in 7-10 business days
9201592015-1792NUT,POP,6MM,L=16.5
10+ In-Stock
9203392033-1041RING-SNAP,42MM
10+ In-Stock
9204592045-0017BEARING-BALL,6004UL11
2 In-Stock
9204692046-0008BEARING-NEEDLE,7E-HVS 28X34X17
7 In-Stock
9204992049-1314SEAL-OIL,MHSA25X42X6
10+ In-Stock
92049A92049-1352SEAL-OIL,MHSA25X34X7
1 In-Stock
9215192151-1899BOLT,SOCKET,10X40
Usually ships in 7-10 business days
9215292152-2980

(replaces part #
92152-0154)

COLLAR,SWING ARM,L=47
Usually ships in 7-10 business days
92152A92152-3997

(replaces part #
92152-1234)

COLLAR,SWING ARM,L=12.5
Usually ships in 7-10 business days
9217192171-0907CLAMP
Usually ships in 7-10 business days
9220092200-0531WASHER,10.5X18X2.0
Usually ships in 7-10 business days
9221092210-0134NUT,30MM
Usually ships in 7-10 business days
92210A92210-0320NUT,FLANGED,20MM
1 In-Stock
92210B92210-1397NUT,POP,6MM,L=15
Usually ships in 7-10 business days
