2014 Kawasaki Vulcan Classic LT VN900 Fenders OEM Parts Diagram

Submodel VN900DEF Vulcan 900 Classic LT (2014)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDERS

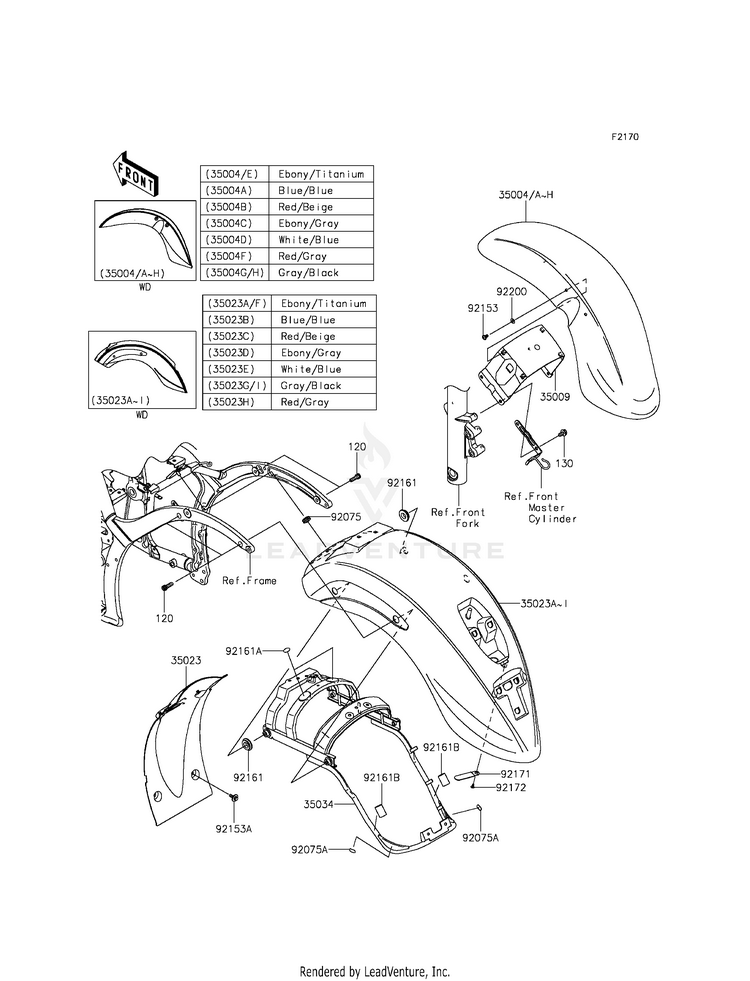

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CA0825BOLT-SOCKET,8X25
Usually ships in 7-10 business days
130130BB0814BOLT-FLANGED,8X14
7 In-Stock
35004F35004-5388-46CFENDER-FRONT,RED/GRAY
Usually ships in 7-10 business days
35004G35004-5389-46BFENDER-FRONT,GRAY/BLA
Usually ships in 7-10 business days
3500935009-0014BRACE,FRONT FENDER
Usually ships in 7-10 business days
3502335023-0073FENDER-REAR,INNER
Usually ships in 7-10 business days
35023G35023-5225-46BFENDER-REAR,GRAY/BLAC
Usually ships in 7-10 business days
35023H35023-5240-46CFENDER-REAR,RED/GRAY
Usually ships in 7-10 business days
3503435034-0090REINFORCE,REAR FENDER
Usually ships in 7-10 business days
9207592075-1067DAMPER
6 In-Stock
92075A92075-1841DAMPER
Usually ships in 7-10 business days
9215392153-0817BOLT,SOCKET,6X16
5 In-Stock
92153A92153-1599BOLT,6X20
Usually ships in 7-10 business days
9216192161-0375DAMPER
Usually ships in 7-10 business days
92161A92161-0406DAMPER
Usually ships in 7-10 business days
92161B92161-0459DAMPER
Usually ships in 7-10 business days
9217192171-0181CLAMP
Usually ships in 7-10 business days
9217292172-0172SCREW,TAPPING,4X10
Usually ships in 7-10 business days
9220092200-1388WASHER,6.5X14X1
10+ In-Stock
