2014 Kawasaki Vulcan Classic LT VN900 Rear Wheel/Chain OEM Parts Diagram

Submodel VN900DEF Vulcan 900 Classic LT (2014)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR WHEEL/CHAIN

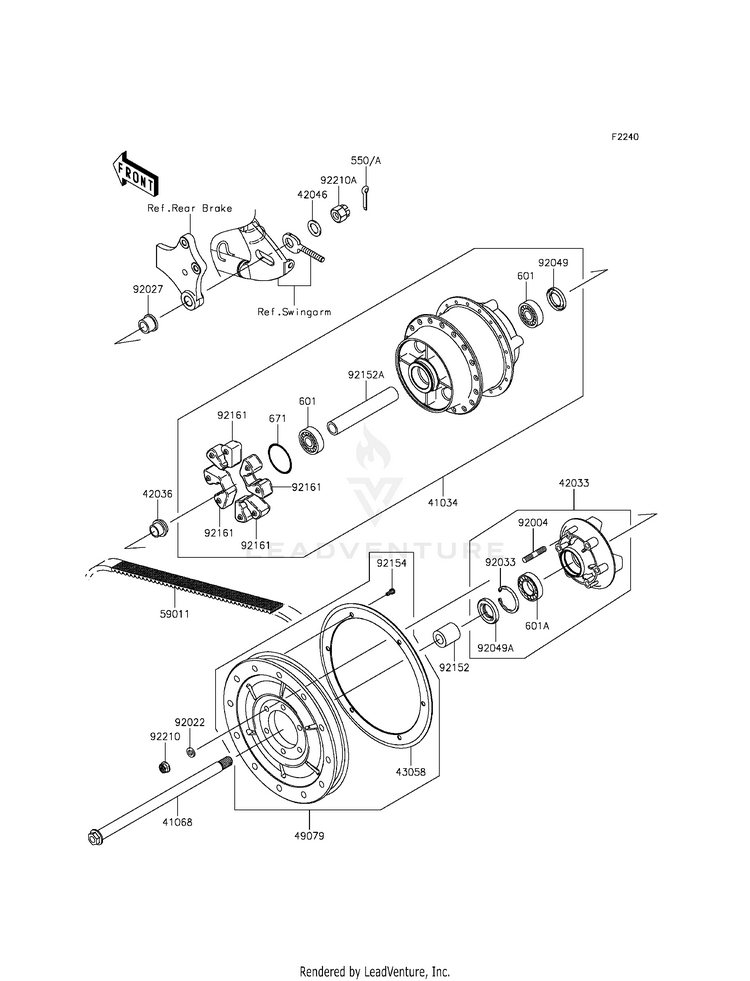

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
4103441034-0047DRUM-ASSY,REAR BRAKE
Usually ships in 7-10 business days
4106841068-0598

(replaces part #
41068-0057)

AXLE,RR,20X362.5
Usually ships in 7-10 business days
4203342033-0037COUPLING-ASSY,RR HUB
Usually ships in 7-10 business days
4203642036-1251SLEEVE,RR HUB,L=23
Usually ships in 7-10 business days
4204642046-003WASHER,21X33X2.6
Usually ships in 7-10 business days
4305843058-0011RING,REAR PULLEY
Usually ships in 7-10 business days
4907949079-0011PULLEY-BELT
Usually ships in 7-10 business days
550550AA4035PIN-COTTER,4.0X35
10+ In-Stock
5901159011-0062

(replaces part #
59011-0021)

BELT,DRIVE,153T
Usually ships in 7-10 business days
601601B6204UUBEARING-BALL,6204UUC3
5 In-Stock
601A601B6205UUBEARING-BALL
8 In-Stock
671671B2560O RING,60MM
2 In-Stock
9200492004-0016STUD,10X35
Usually ships in 7-10 business days
9202292022-1820WASHER,10.5X19X3.2
Usually ships in 7-10 business days
9202792027-1902COLLAR,RR AXLE,L=21.5
Usually ships in 7-10 business days
9203392033-1043RING-SNAP,52MM
4 In-Stock
9204992049-1056SEAL-OIL,BJN28475
1 In-Stock
92049A92049-1287SEAL-OIL
6 In-Stock
9215292152-0350COLLAR,RR AXLE,LH,L=38.6
Usually ships in 7-10 business days
92152A92152-0351COLLAR,REAR BRAKE DRUM,L=166.4
Usually ships in 7-10 business days
9215492154-0346BOLT,FLANGED,6X12
Usually ships in 7-10 business days
9216192161-0466DAMPER,SHOCK,RR HUB
Usually ships in 7-10 business days
9221092210-0276NUT,LOCK,FLANGED,10MM
10+ In-Stock
92210A92210-1134NUT,CASTLE,18MM
Usually ships in 7-10 business days
