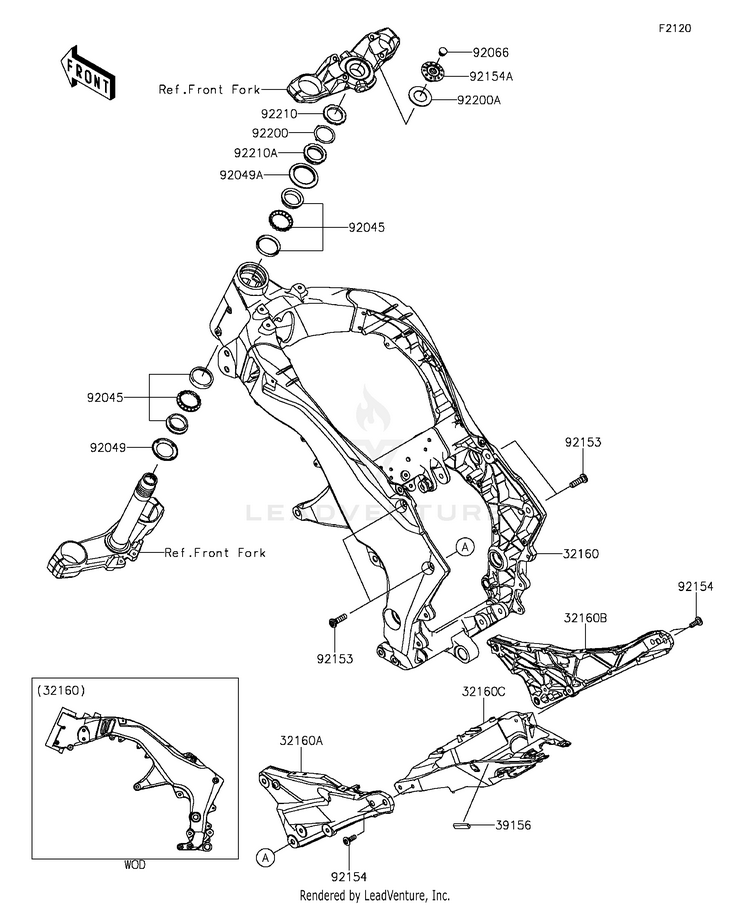

2014 Kawasaki Z1000 (ABS) Frame OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
32160	32160-0694-18R	FRAME-COMP,MAIN,F.S.BLACK	Usually ships in 7-10 business days
32160A	32160-0695-18R	FRAME-COMP,RR,LH,F.S.BLACK	Usually ships in 7-10 business days
32160B	32160-0696-18R	FRAME-COMP,RR,RH,F.S.BLACK	Usually ships in 7-10 business days
32160C	32160-0697	FRAME-COMP,RR	Usually ships in 7-10 business days
39156	39156-1811	PAD,10X34X5	Usually ships in 7-10 business days
92045	92045-1384	BEARING-BALL,SF07A17PX1V1	3 In-Stock
92049	92049-0022	SEAL-OIL,DS35X55X4	2 In-Stock
92049A	92049-0742	SEAL-OIL,43X55.5X8.6	Usually ships in 7-10 business days
92066	92066-0071	PLUG	Usually ships in 7-10 business days
92153	92153-1442	BOLT,SOCKET,10X35	Usually ships in 7-10 business days
92154	92154-0379	BOLT,SOCKET,8X23	Usually ships in 7-10 business days
92154A	92154-1243	BOLT,TOP	Usually ships in 7-10 business days
92200	92200-0036	WASHER	1 In-Stock
92200A	92200-0892	WASHER,27X48X2.3	Usually ships in 7-10 business days
92210	92210-0095	NUT,35MM	Usually ships in 7-10 business days
92210A	92210-0823	NUT,35MM	Usually ships in 7-10 business days
