2015 Kawasaki Ninja ZX-10R Engine Cover(S) OEM Parts Diagram

Submodel ZX1000JFF Ninja ZX-10R (2015)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ENGINE COVER(S)

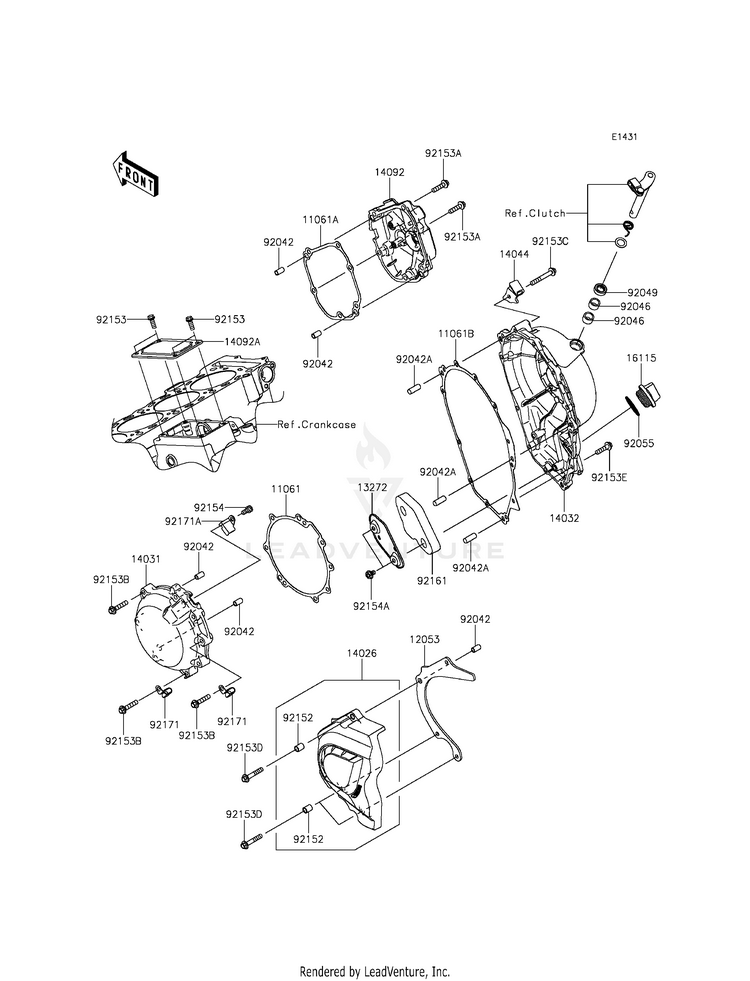

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106111061-0441GASKET,GENERATOR COVER
Usually ships in 7-10 business days
11061A11061-0442GASKET,PULSER COVER
Usually ships in 7-10 business days
11061B11061-0735GASKET
Usually ships in 7-10 business days
1205312053-0176GUIDE-CHAIN
Usually ships in 7-10 business days
1327213272-0892PLATE
Usually ships in 7-10 business days
1402614026-0083COVER-CHAIN
Usually ships in 7-10 business days
1403114031-0555COVER-GENERATOR
Usually ships in 7-10 business days
1403214032-0560COVER-CLUTCH
Usually ships in 7-10 business days
1404414044-0046HOLDER-CABLE
Usually ships in 7-10 business days
1409214093-1150

(replaces part #
14092-0152)

COVER,PULSER
Usually ships in 7-10 business days
14092A14092-0153COVER,STARTER
Usually ships in 7-10 business days
1611516115-1009CAP-OIL FILLER
4 In-Stock
9204292042-007PIN,DOWEL,6.3X8X14
10+ In-Stock
92042A92042-044PIN,DOWEL,8X22
Usually ships in 7-10 business days
9204692046-0034BEARING-NEEDLE,HK1210FM
10+ In-Stock
9204992049-1475SEAL-OIL,CLUTCH RELEASE
10+ In-Stock
9205592055-049RING-O,31.5X2.6
10+ In-Stock
9215292152-0887COLLAR,7.5X9.5X12
Usually ships in 7-10 business days
9215392153-0695BOLT,6X16
10+ In-Stock
92153A92153-1569BOLT,FLANGED,6X25
10+ In-Stock
92153B92153-1574BOLT,FLANGED,6X30
Usually ships in 7-10 business days
92153C92153-1575BOLT,FLANGED,6X45
Usually ships in 7-10 business days
92153D92153-1579BOLT,FLANGED,6X35
Usually ships in 7-10 business days
92153E92153-1716BOLT,FLANGED,6X25
Usually ships in 7-10 business days
9215492154-0040BOLT,SOCKET,6X12
Usually ships in 7-10 business days
92154A92154-0492BOLT,FLANGED,6X10
Usually ships in 7-10 business days
9216192161-0873DAMPER,CLUTCH COVER
Usually ships in 7-10 business days
9217192171-0534CLAMP
Usually ships in 7-10 business days
92171A92171-0938CLAMP
Usually ships in 7-10 business days
