2015 Kawasaki Ninja ZX-14R Clutch Master Cylinder OEM Parts Diagram

Submodel ZX1400EFFA Ninja ZX-14R (2015)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH MASTER CYLINDER

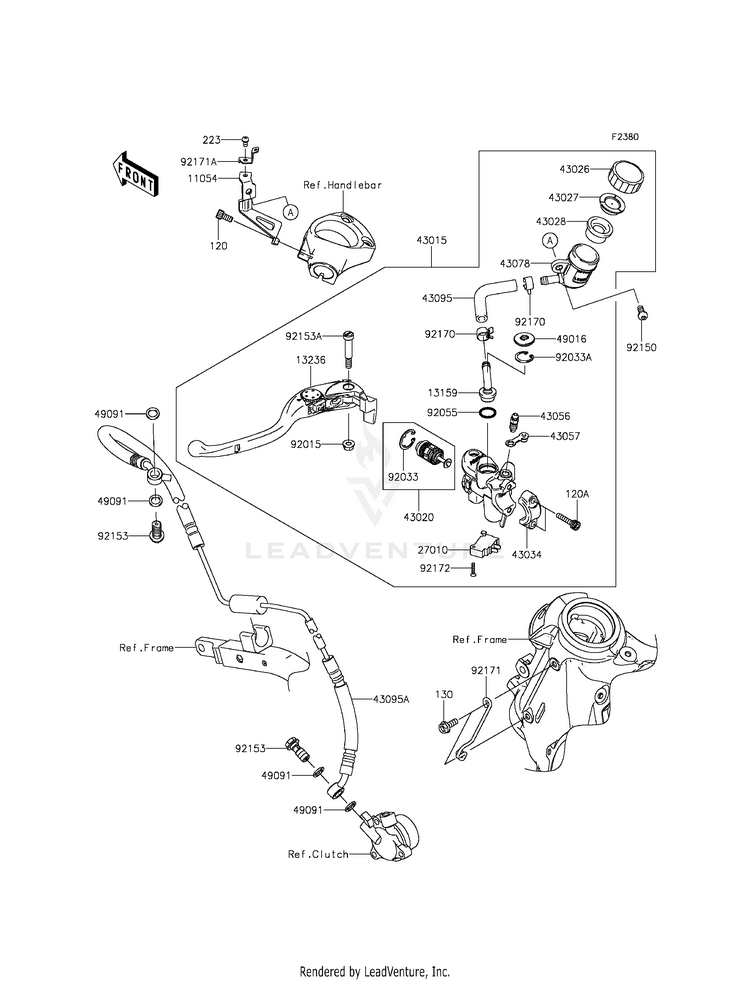

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105411054-0207BRACKET,CLUTCH RESERV
Usually ships in 7-10 business days
120120CA0612BOLT-SOCKET,6X12
10+ In-Stock
120A120CB0622BOLT-SOCKET,6X22
Usually ships in 7-10 business days
130130BA0616BOLT-FLANGED,6X16
7 In-Stock
1315913159-1061CONNECTOR
3 In-Stock
1323613236-0104LEVER-COMP,CLUTCH
Usually ships in 7-10 business days
223223AA0408SCREW-PAN-WS-CROS,4X8
4 In-Stock
2701027010-0051SWITCH,CLUTCH
Usually ships in 7-10 business days
4301543015-0151CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-0013PISTON-COMP-BRAKE
Usually ships in 7-10 business days
4302643026-1070CAP-BRAKE
Usually ships in 7-10 business days
4302743027-1054PLATE-DIAPHRAGM
Usually ships in 7-10 business days
4302843028-1073DIAPHRAGM
Usually ships in 7-10 business days
4303443034-0056HOLDER-BRAKE,MASTER CYLINDER
Usually ships in 7-10 business days
4305643056-1056BREATHER-BRAKE
10+ In-Stock
4305743057-1001CAP-BREATHER
10+ In-Stock
4307843078-1102RESERVOIR
Usually ships in 7-10 business days
4309543095-0040HOSE-BRAKE,FR MASTER CYLINDER
Usually ships in 7-10 business days
43095A43095-0410HOSE-BRAKE,CLUTCH
Usually ships in 7-10 business days
4901649016-1147COVER-SEAL
1 In-Stock
4909149091-0001WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
9201592015-1528NUT,FLANGED,6MM
10+ In-Stock
9203392033-0034RING-SNAP
Usually ships in 7-10 business days
92033A92033-1186RING-SNAP,20.5MM
7 In-Stock
9205592055-0741RING-O,14.8X2.4
10+ In-Stock
9215092150-1836BOLT,SOCKET,6X14
9 In-Stock
9215392153-0627BOLT,OIL,L=23
10+ In-Stock
92153A92153-0868BOLT,LEVER
Usually ships in 7-10 business days
9217092170-1091CLAMP,HOSE
Usually ships in 7-10 business days
9217192171-0633CLAMP,CLUTCH HOSE
Usually ships in 7-10 business days
92171A92171-0637CLAMP,RESERVOIR CAP
Usually ships in 7-10 business days
9217292172-0349SCREW,3X16
Usually ships in 7-10 business days
