2015 Kawasaki Ninja ZX-14R Front Fork OEM Parts Diagram

Submodel ZX1400EFFA Ninja ZX-14R (2015)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

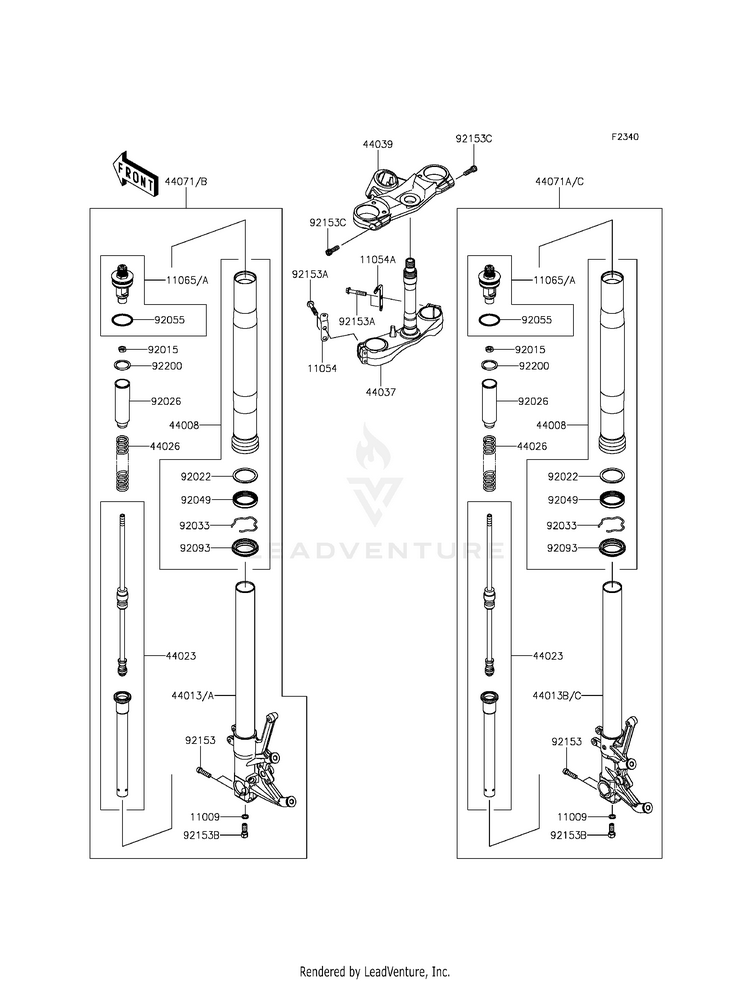

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100944045-057

(replaces part #
11009-1325)

GASKET,FORK CYLINDER
10+ In-Stock
1105411054-0480BRACKET,HARNESS CLAMP,LH
Usually ships in 7-10 business days
11054A11054-0481BRACKET,UNDER BRACKET,RH
Usually ships in 7-10 business days
11065A11065-0757-44FCAP,P.AJ G.B.GRN+T.AJ SIL
Usually ships in 7-10 business days
4400844008-0052-499PIPE-FORK OUTER,A.BLACK
Usually ships in 7-10 business days
44013A44013-0185-44GPIPE-FORK INNER,LH,BLACK+
Usually ships in 7-10 business days
44013C44013-0186-44GPIPE-FORK INNER,RH,BLACK+
Usually ships in 7-10 business days
4402344023-0096CYLINDER-SET-FORK
Usually ships in 7-10 business days
4402644026-0160SPRING-FRONT FORK
Usually ships in 7-10 business days
4403744037-0039HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-0113-40SHOLDER-FORK UPPER,F.S.BLA
Usually ships in 7-10 business days
4407144071-0773-50JDAMPER-ASSY,FORK,A.BLACK,
Usually ships in 7-10 business days
44071A44071-0774-50JDAMPER-ASSY,FORK,A.BLACK,
Usually ships in 7-10 business days
9201592015-1905NUT
Usually ships in 7-10 business days
9202292022-1299WASHER
10+ In-Stock
9202692026-0736SPACER
Usually ships in 7-10 business days
9203392033-1077RING-SNAP
10+ In-Stock
9204992049-1522SEAL-OIL,FORK OUTER TUBE
10+ In-Stock
9205592055-1333RING-O,FORK,AIR TUBE
8 In-Stock
9209392093-1480SEAL,FORK OUTER TUBE
10+ In-Stock
9215392153-0006BOLT,SOCKET,8X40
8 In-Stock
92153A92153-0484BOLT,FLANGED,8X40
10+ In-Stock
92153B92153-0548BOLT,SOCKET,10X25
Usually ships in 7-10 business days
92153C92153-1625BOLT,SOCKET,8X25
1 In-Stock
9220092200-0085WASHER
Usually ships in 7-10 business days
