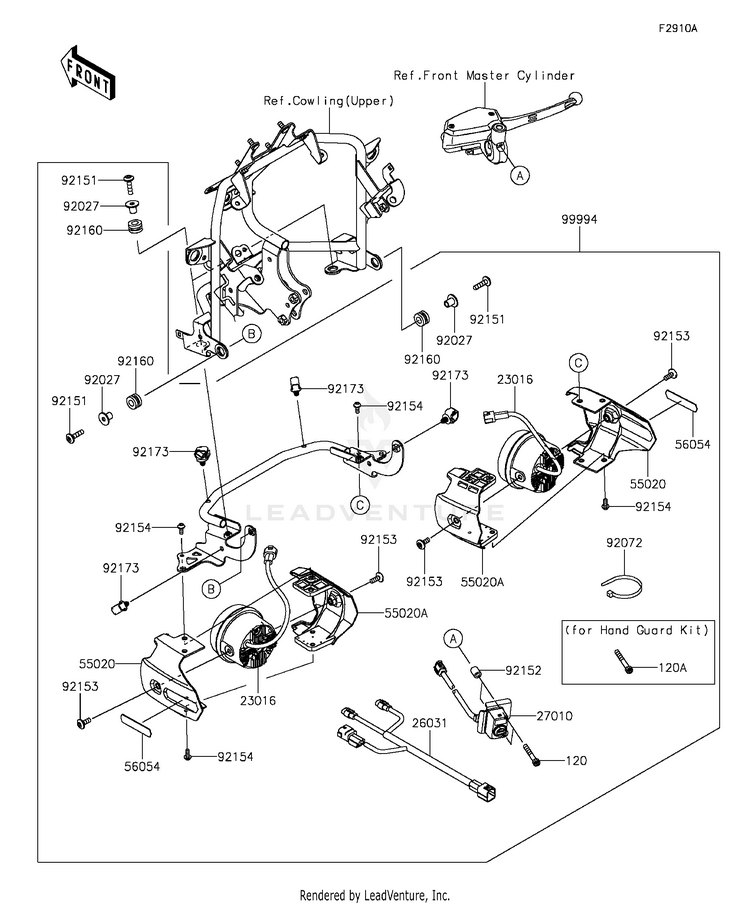

2015 Kawasaki Versys 1000 LT KLZ1000B Accessory(Fog Lamp) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
120	120CB0640	BOLT-SOCKET,6X40	Usually ships in 7-10 business days
120A	120CB0645	BOLT-SOCKET,6X45	2 In-Stock
23016	23016-0571	LAMP-ASSY,FOG LAMP,LED	Usually ships in 7-10 business days
26031	26031-1756	HARNESS,FOG LAMP	Usually ships in 7-10 business days
27010	27010-0761	SWITCH,SUB LAMP	Usually ships in 7-10 business days
55020	55020-1825	GUARD,OUTER	5 In-Stock
55020A	55020-1826	GUARD,INNER	5 In-Stock
56054	56054-1695	MARK,FOG LAMP,KAWASAKI	4 In-Stock
92027	92027-1183	COLLAR,6.5X10X14.1	10+ In-Stock
92072	92072-3874	BAND,L=152	Usually ships in 7-10 business days
92151	92151-1611	BOLT,SOCKET,6X25	4 In-Stock
92152	92152-1965	COLLAR,6.3X11X14	Usually ships in 7-10 business days
92153	92153-1526	BOLT,SOCKET,6X16	8 In-Stock
92154	92154-0917	BOLT,SOCKET,5X12	Usually ships in 7-10 business days
92160	92160-1167	DAMPER,10X20X12	10+ In-Stock
92173	92173-0736	CLAMP,12MM DIA.	6 In-Stock
99994	99994-0487	LED LIGHT BAR	Usually ships in 7-10 business days
