2015 Kawasaki Versys 1000 LT KLZ1000B Cowling Lowers OEM Parts Diagram

Submodel KLZ1000BFF Versys 1000 LT (2015)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

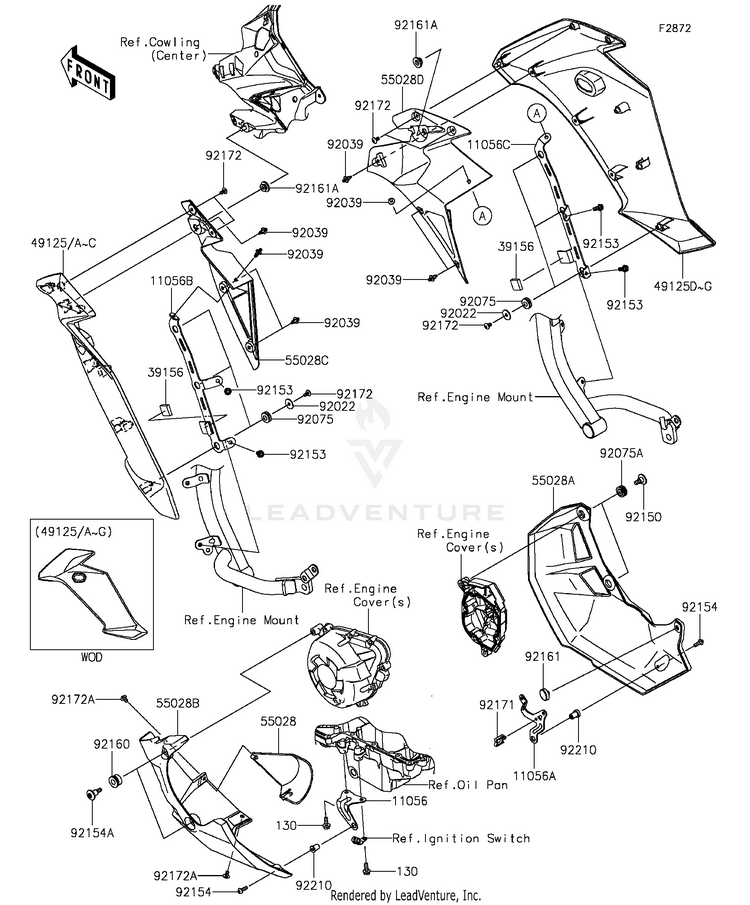

Cowling Lowers

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-1308BRACKET,LWR COWLING,LH
Usually ships in 7-10 business days
11056A11056-1481BRACKET,LWR COWLING,RH
Usually ships in 7-10 business days
11056B11056-4219BRACKET,SIDE COWL.,LH
Usually ships in 7-10 business days
11056C11056-4220BRACKET,SIDE COWL.,RH
Usually ships in 7-10 business days
130130CC0616BOLT-FLANGED,6X16
Usually ships in 7-10 business days
3915639156-0548PAD,RUBBER
Usually ships in 7-10 business days
4912549125-0588-17LSHROUD,SIDE,LH,C.B.OR
Usually ships in 7-10 business days
49125A49125-0588-45LSHROUD,SIDE,LH,F.EBON | CA,US
Usually ships in 7-10 business days
49125D49125-0589-17LSHROUD,SIDE,RH,C.B.OR
Usually ships in 7-10 business days
49125E49125-0589-45LSHROUD,SIDE,RH,F.EBON | CA,US
Usually ships in 7-10 business days
5502855028-0400-18TCOWLING,FILTER GUARD,
Usually ships in 7-10 business days
55028A55028-0412-18TCOWLING,LWR,RH,F.S.BL
Usually ships in 7-10 business days
55028B55028-0423-18TCOWLING,LWR,LH,F.S.BL
Usually ships in 7-10 business days
55028C55028-0531COWLING,SIDE,LH
Usually ships in 7-10 business days
55028D55028-0532COWLING,SIDE,RH
Usually ships in 7-10 business days
9202292022-1405WASHER,5.5X20X1.2
3 In-Stock
9203992039-0068RIVET
10+ In-Stock
9207592075-051DAMPER
10+ In-Stock
92075A92075-1634DAMPER
10+ In-Stock
9215092150-1154BOLT,SOCKET,6MM
Usually ships in 7-10 business days
9215392153-0759BOLT,6X12
Usually ships in 7-10 business days
9215492154-0209BOLT,SOCKET,5X16
10+ In-Stock
92154A92154-0348BOLT,6X24
Usually ships in 7-10 business days
9216092160-1141DAMPER
Usually ships in 7-10 business days
9216192161-0516DAMPER,8X22X6
Usually ships in 7-10 business days
92161A92161-1531DAMPER
9 In-Stock
9217192171-0290CLAMP
Usually ships in 7-10 business days
9217292172-0262SCREW,TAPPING,5X10
10+ In-Stock
92172A92172-0335SCREW,TAPPING,5X10
3 In-Stock
9221092210-0001NUT,5MM
7 In-Stock
