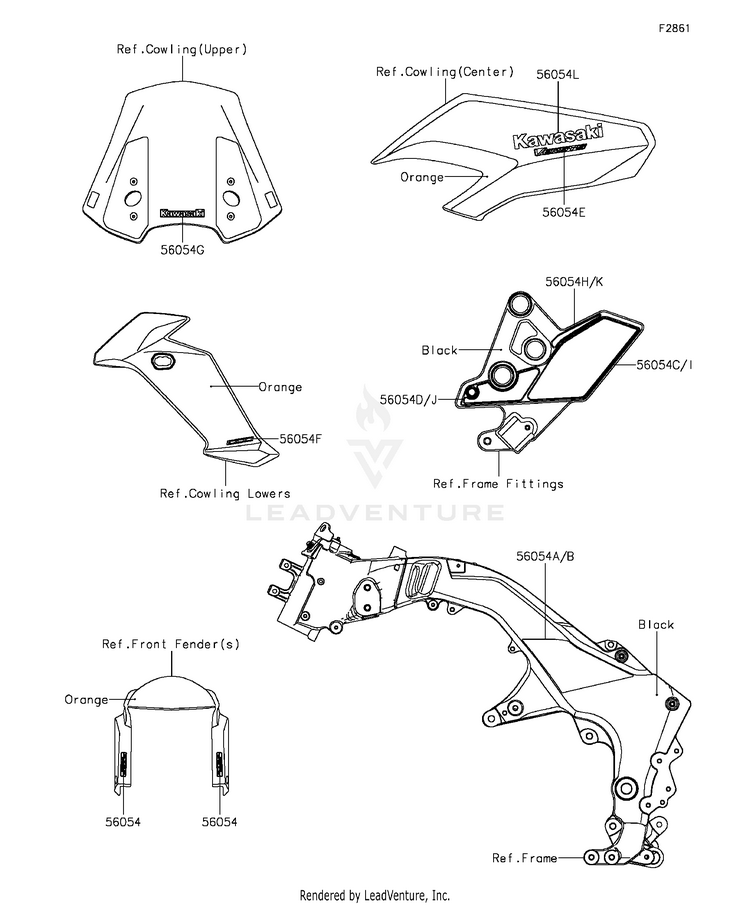

2015 Kawasaki Versys 1000 LT KLZ1000B Decals(Orange)(Bff) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
56054	56054-1115	MARK,FR FENDER,KTRC ABS	Usually ships in 7-10 business days
56054A	56054-1116	MARK,FRAME PAD,LH	Usually ships in 7-10 business days
56054B	56054-1117	MARK,FRAME PAD,RH	Usually ships in 7-10 business days
56054C	56054-1548	MARK,STEP STAY,LH,RR	Usually ships in 7-10 business days
56054D	56054-1549	MARK,STEP STAY,LH,FR	Usually ships in 7-10 business days
56054E	56054-1706	MARK,SIDE COWL.,VERSY	Usually ships in 7-10 business days
56054F	56054-1708	MARK,SHROUD,1000	Usually ships in 7-10 business days
56054G	56054-1709	MARK,WINDSHIELD,KAWAS	Usually ships in 7-10 business days
56054H	56054-1710	MARK,STEP STAY,LH,SIDE	Usually ships in 7-10 business days
56054I	56054-1711	MARK,STEP STAY,RH,RR	Usually ships in 7-10 business days
56054J	56054-1712	MARK,STEP STAY,RH,FR	Usually ships in 7-10 business days
56054K	56054-1713	MARK,STEP STAY,RH,SIDE	Usually ships in 7-10 business days
56054L	56054-1748	MARK,SIDE COWL.,KAWAS	Usually ships in 7-10 business days
