2015 Kawasaki Versys 1000 LT KLZ1000B Fuel Tank OEM Parts Diagram

Submodel KLZ1000BFF Versys 1000 LT (2015)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Fuel Tank

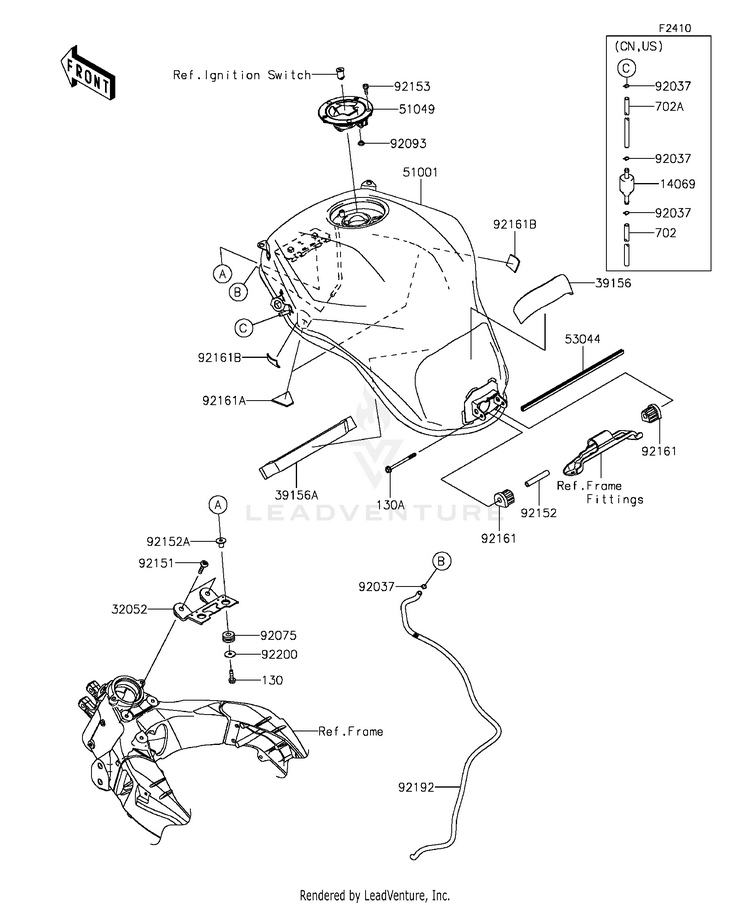

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0622BOLT-FLANGED,6X22
Usually ships in 7-10 business days
130A130BB0670BOLT-FLANGED,6X70
Usually ships in 7-10 business days
1406914069-0008BREATHER,TANK | CN,US
Usually ships in 7-10 business days
3205232052-0749-18RBRACKET-TANK,F.S.BLACK
Usually ships in 7-10 business days
3915639156-0982PAD,FUEL TANK,RR
Usually ships in 7-10 business days
39156A39156-1866PAD,25X260X10
Usually ships in 7-10 business days
5100151001-0816-660TANK-COMP-FUEL,M.S.BL
Usually ships in 7-10 business days
5104951049-0744

(replaces part #
51049-0039)

CAP-TANK,FUEL
Usually ships in 7-10 business days
5304453044-1296TRIM
Usually ships in 7-10 business days
702702A06200TUBE-RUBBER,6X200 | CN,US
Usually ships in 7-10 business days
702A702A06450TUBE-RUBBER,6X9X450 | CN,US
Usually ships in 7-10 business days
9203792037-010CLAMP,TUBE | CN,US
10+ In-Stock
9207592075-1690DAMPER,10X24X12
10+ In-Stock
9209392093-1030SEAL,FUEL TANK CAP
9 In-Stock
9215192151-1605BOLT,SOCKET,6X30
10+ In-Stock
9215292152-1182COLLAR,6.8X10X60
Usually ships in 7-10 business days
92152A92152-1847COLLAR,6.3X9.5X14.1
Usually ships in 7-10 business days
9215392153-1616BOLT,SOCKET,5X16
10+ In-Stock
9216192161-1330DAMPER,FUEL TANK,RR
Usually ships in 7-10 business days
92161A92161-1768DAMPER,30X48X3
Usually ships in 7-10 business days
92161B92161-1770DAMPER,25X25X2
Usually ships in 7-10 business days
9219292192-1024TUBE,6X9X926(30)
Usually ships in 7-10 business days
9220092200-1087WASHER,6.5X22X1.6
6 In-Stock
