2015 Kawasaki Versys 1000 LT KLZ1000B Transmission OEM Parts Diagram

Submodel KLZ1000BFF Versys 1000 LT (2015)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Transmission

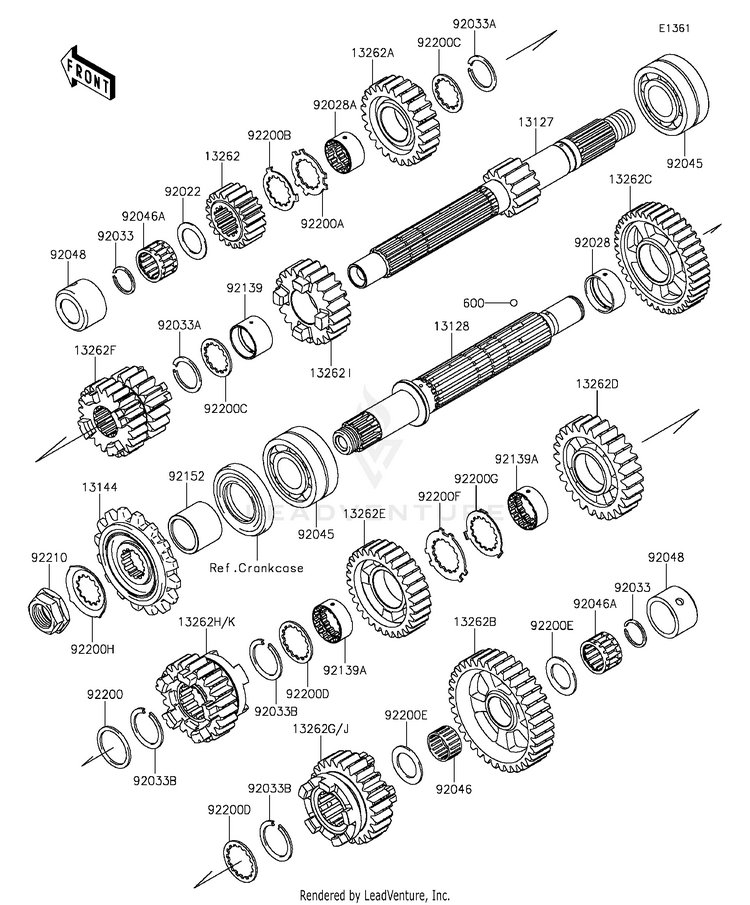

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1312713127-0635SHAFT-TRANSMISSION IN
Usually ships in 7-10 business days
1312813128-0054SHAFT-TRANSMISSION OUTPUT
Usually ships in 7-10 business days
1314413144-0579

(replaces part #
13144-0070)

SPROCKET-OUTPUT,15T
Usually ships in 7-10 business days
1326213262-0753GEAR,INPUT 2ND,20T
Usually ships in 7-10 business days
13262A13262-0884GEAR,INPUT TOP,24T
Usually ships in 7-10 business days
13262B13262-0885GEAR,OUTPUT LOW,35T
Usually ships in 7-10 business days
13262C13262-0886GEAR,OUTPUT 2ND,39T
Usually ships in 7-10 business days
13262D13262-0887GEAR,OUTPUT 3RD,26T
Usually ships in 7-10 business days
13262E13262-0888GEAR,OUTPUT 4TH,30T
Usually ships in 7-10 business days
13262F13262-1137GEAR,INPUT 3RD&4TH,17
Usually ships in 7-10 business days
13262G13262-1138GEAR,OUTPUT 5TH,25T
Usually ships in 7-10 business days
13262H13262-1139GEAR,OUTPUT TOP,23T
Usually ships in 7-10 business days
13262I13262-1159GEAR,INPUT 5TH,22T
Usually ships in 7-10 business days
600600A0500BALL-STEEL,5/32
Usually ships in 7-10 business days
9202292022-112WASHER,20.5X30X1,STEEL
1 In-Stock
9202892028-1739BUSHING,OUTPUT,2ND
Usually ships in 7-10 business days
92028A92028-1915BUSHING,INPUT TOP GEAR
Usually ships in 7-10 business days
9203392033-015RING-SNAP,20MM
2 In-Stock
92033A92033-026RING-SNAP,24MM
10+ In-Stock
92033B92033-1249RING-SNAP,T=1.5
6 In-Stock
9204592045-0003BEARING-BALL,DAC2557NSSH
Usually ships in 7-10 business days
9204692046-1219BEARING-NEEDLE,K20X24X13
Usually ships in 7-10 business days
92046A92046-1303BEARING-NEEDLE,PK20X27X17X3
Usually ships in 7-10 business days
9204892048-0016RACE
Usually ships in 7-10 business days
9213992139-0280BUSHING,25X28X17.8
Usually ships in 7-10 business days
92139A92139-0281BUSHING,OUTPUT,3RD&4TH
1 In-Stock
9215292152-0812COLLAR,SPROCKET
Usually ships in 7-10 business days
9220092200-0228WASHER,28.1X34.0X1.6
Usually ships in 7-10 business days
92200A92200-0520WASHER,25.2X34.2X1.5
Usually ships in 7-10 business days
92200B92200-0521WASHER,25.2X32X1
Usually ships in 7-10 business days
92200C92200-1239WASHER,25.2X31.0X1.5
Usually ships in 7-10 business days
92200D92200-1240WASHER,28.5X34.0X1.5
3 In-Stock
92200E92200-1375WASHER,20.5X31X1.5
Usually ships in 7-10 business days
92200F92200-1522WASHER,25.8X40.5X1.5
Usually ships in 7-10 business days
92200G92200-1523WASHER,25.2X37.0X1.0
Usually ships in 7-10 business days
92200H92200-1720WASHER
3 In-Stock
9221092210-0850NUT,20MM
4 In-Stock
