2016 Kawasaki BRUTE FORCE 750 4x4i Drive Converter OEM Parts Diagram

Submodel KVF750LGF Brute Force 750 4x4i (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Drive Converter

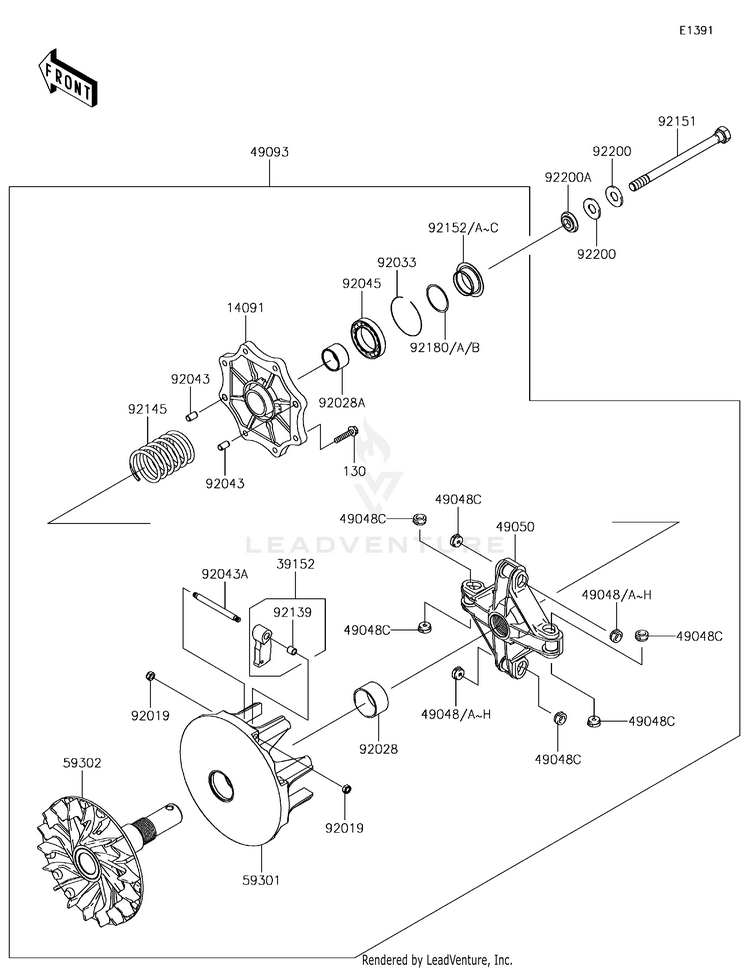

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA0630BOLT-FLANGED,6X30
10+ In-Stock
1409114091-1804COVER
Usually ships in 7-10 business days
3915239152-0034WEIGHT-RAMP
Usually ships in 7-10 business days
4904849048-1087SHOE,T=7.2
8 In-Stock
49048A49048-1088SHOE,T=7.3
8 In-Stock
49048B49048-1089SHOE,T=7.4
8 In-Stock
49048C49048-1090SHOE,T=7.5
10+ In-Stock
49048D49048-1091SHOE,T=7.6
10+ In-Stock
49048E49048-1092SHOE,T=7.7
10+ In-Stock
49048F49048-1093SHOE,T=7.8
10+ In-Stock
49048G49048-1094SHOE,T=7.9
10+ In-Stock
49048H49048-1095SHOE,T=8.0
7 In-Stock
4905049050-0010SPIDER
2 In-Stock
4909349093-0087

(replaces part #
49093-0040)

CONVERTER-ASSY-DRIVE
Usually ships in 7-10 business days
5930159301-0007SHEAVE-MOVABLE
Usually ships in 7-10 business days
5930259302-0078SHEAVE-COMP,FIXED
Usually ships in 7-10 business days
9201992019-008NUT,LOCK,6MM
10+ In-Stock
9202892139-1244

(replaces part #
92028-1975)

BUSHING
5 In-Stock
92028A92139-1243

(replaces part #
92028-1980)

BUSHING
3 In-Stock
9203392033-0063RING-SNAP
Usually ships in 7-10 business days
9204392043-1263PIN,6.2X8X14
10+ In-Stock
92043A92043-1688PIN
10+ In-Stock
9204592045-1453BEARING-BALL,6907DDG8C4 S6NS
Usually ships in 7-10 business days
9213992139-0215BUSHING
8 In-Stock
9214592145-0794SPRING
Usually ships in 7-10 business days
9215192151-1393BOLT,12X165
2 In-Stock
9215292152-1436COLLAR,T=1.6
Usually ships in 7-10 business days
92152A92152-1437COLLAR,T=3.0
Usually ships in 7-10 business days
92152B92152-1438COLLAR,T=2.3
Usually ships in 7-10 business days
92152C92152-1440COLLAR,T=3.7
Usually ships in 7-10 business days
9218092180-1378SHIM,35X40X0.10
Usually ships in 7-10 business days
92180A92180-1379SHIM,35X40X0.20
Usually ships in 7-10 business days
92180B92180-1380SHIM,35X40X0.30
Usually ships in 7-10 business days
9220092200-1504WASHER,SPRING
4 In-Stock
92200A92200-1634WASHER
2 In-Stock
