2016 Kawasaki BRUTE FORCE 750 4x4i Drive Shaft-Front OEM Parts Diagram

Submodel KVF750GGF Brute Force 750 4x4i EPS (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Drive Shaft-Front

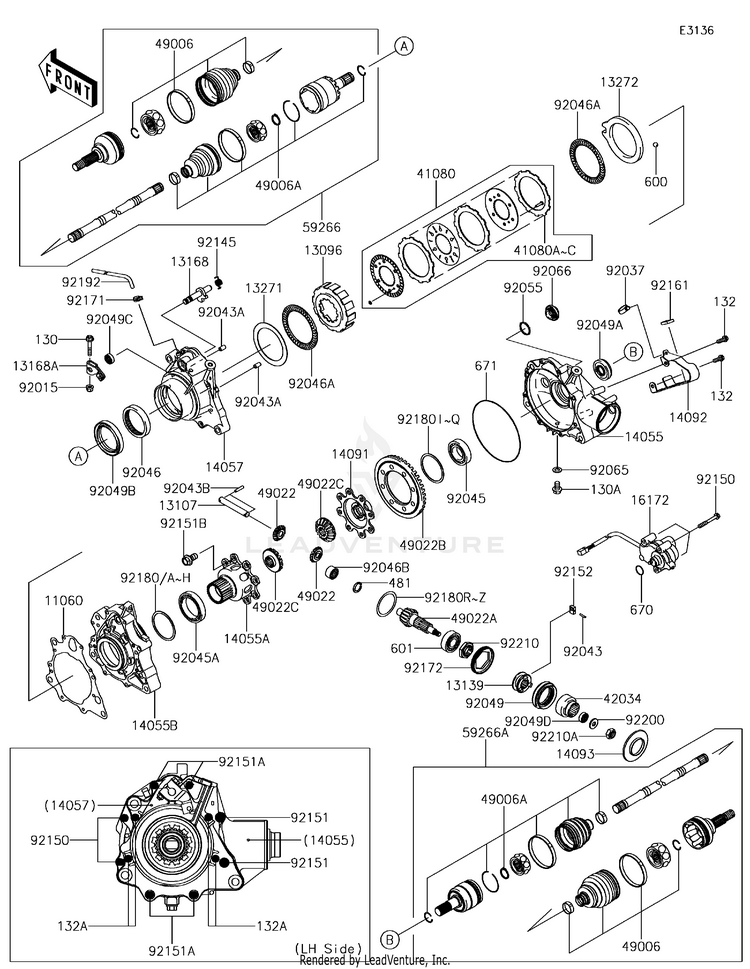

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-1982GASKET,DIFF CASE
3 In-Stock
130130BA0635BOLT-FLANGED,6X35
3 In-Stock
1309613096-1163HOUSING-CLUTCH,DISC
Usually ships in 7-10 business days
130A130BA0814BOLT-FLANGED,8X14
10+ In-Stock
1310713107-0923

(replaces part #
13107-0123)

SHAFT,CROSS
1 In-Stock
1313913139-1097SHIFTER,DIFFERENTIAL
Usually ships in 7-10 business days
1316813168-1724LEVER,DIFF
Usually ships in 7-10 business days
13168A13168-1725LEVER,DIFFERENTIAL
Usually ships in 7-10 business days
132132BA0616BOLT-FLANGED-SMALL,6X16
10+ In-Stock
1327113271-1503PLATE,DISC
Usually ships in 7-10 business days
1327213272-0848PLATE,CAM
Usually ships in 7-10 business days
132A132BA0630BOLT-FLANGED-SMALL,6X30
10+ In-Stock
1405514055-0627

(replaces part #
14055-0046)

CASE-GEAR
Usually ships in 7-10 business days
14055A14055-0601CASE-GEAR,BEVEL,LH
Usually ships in 7-10 business days
14055B14055-0629

(replaces part #
14055-1155)

CASE-GEAR,CENTER
Usually ships in 7-10 business days
1405714057-0014CASE-COMP-GEAR,DIFF,LH
Usually ships in 7-10 business days
1409114091-1197COVER,BEVEL,RH
Usually ships in 7-10 business days
1409214092-0202COVER
Usually ships in 7-10 business days
1409314093-0020COVER,COUPLING
Usually ships in 7-10 business days
1617216172-0039ACTUATOR
6 In-Stock
4108041080-0609DISC ASSY,DIFFERENTIAL LOCK
1 In-Stock
41080A41080-1499DISC,T=1.20
Usually ships in 7-10 business days
41080B41080-1500DISC,T=1.80
Usually ships in 7-10 business days
41080C41080-1501DISC,T=2.40
Usually ships in 7-10 business days
4203442034-0767

(replaces part #
42034-0721)

COUPLING
Usually ships in 7-10 business days
481481J2500CIRCLIP-TYPE-C,25MM
9 In-Stock
4900649006-0073BOOT,UJ
Usually ships in 7-10 business days
49006A49006-0074BOOT,DOJ
Usually ships in 7-10 business days
4902249022-0575GEAR-BEVEL,10T
Usually ships in 7-10 business days
49022A49022-0611

(replaces part #
49022-0590)

GEAR-BEVEL,8T
Usually ships in 7-10 business days
49022B49022-0610

(replaces part #
49022-0591)

GEAR-BEVEL,35T
Usually ships in 7-10 business days
49022C49022-1178GEAR-BEVEL,16T
Usually ships in 7-10 business days
5926659266-0799

(replaces part #
59266-0024)

JOINT-BALL
Usually ships in 7-10 business days
59266A59266-0025JOINT-BALL
Usually ships in 7-10 business days
600600A1100BALL-STEEL,11/32
10+ In-Stock
601601A6305BEARING-BALL,#6305
2 In-Stock
670670D3022O RING
3 In-Stock
671671D25145O RING
3 In-Stock
9201592015-1339NUT,LOCK,FLANGED,6MM
10+ In-Stock
9203792037-1827CLAMP,HOSE
10+ In-Stock
9204392043-0083PIN,2X10.5
7 In-Stock
92043A92043-1263PIN,6.2X8X14
10+ In-Stock
92043B92043-1575PIN
4 In-Stock
9204592045-1393BEARING-BALL,60/32
Usually ships in 7-10 business days
92045A92045-1394BEARING-BALL,6910
Usually ships in 7-10 business days
9204692046-0028BEARING-NEEDLE
3 In-Stock
92046A92046-1286BEARING-NEEDLE,AK1116
Usually ships in 7-10 business days
92046B92046-1297BEARING-NEEDLE,AJ501515W
3 In-Stock
9204992049-0754SEAL-OIL,TC9Y 48X65X9X15.3
5 In-Stock
92049A92049-1534SEAL-OIL,SDD7 22X48X7HS
4 In-Stock
92049B92049-1536SEAL-OIL,HTCY 62X81X10.5
6 In-Stock
92049C92049-1550SEAL-OIL,TC 12X22X7
2 In-Stock
92049D92049-1572SEAL-OIL,KB 13X19X13
3 In-Stock
9205592055-0122RING-O
6 In-Stock
9206592065-023GASKET,8.5X16X1
10+ In-Stock
9206692066-1303PLUG
1 In-Stock
9214592145-1344SPRING,DIFF RETURN
Usually ships in 7-10 business days
92150132BB0645

(replaces part #
92150-1884)

BOLT-FLANGED-SMALL,6X45
3 In-Stock
9215192151-1794BOLT,8X50
Usually ships in 7-10 business days
92151A92151-1795BOLT,6X60
Usually ships in 7-10 business days
92151B92154-4340

(replaces part #
92151-1910)

BOLT,10X19.5
Usually ships in 7-10 business days
9215292152-1349COLLAR
3 In-Stock
9216192161-1387DAMPER,20X20X5
Usually ships in 7-10 business days
9217192171-0515CLAMP
Usually ships in 7-10 business days
9217292172-0719SCREW,SET,64X10
Usually ships in 7-10 business days
9218092180-1390SHIM,62X71X0.15
Usually ships in 7-10 business days
92180A92180-1391SHIM,62X71X0.20
Usually ships in 7-10 business days
92180B92180-1392SHIM,62X71X0.50
Usually ships in 7-10 business days
92180C92180-1393SHIM,62X71X0.70
Usually ships in 7-10 business days
92180D92180-1394SHIM,62X71X0.80
Usually ships in 7-10 business days
92180E92180-1395SHIM,62X71X0.90
Usually ships in 7-10 business days
92180F92180-1396SHIM,62X71X1.00
Usually ships in 7-10 business days
92180G92180-1397SHIM,62X71X1.10
Usually ships in 7-10 business days
92180H92180-1398SHIM,62X71X1.20
Usually ships in 7-10 business days
92180I92180-1399SHIM,32X42X0.15
Usually ships in 7-10 business days
92180J92180-1400SHIM,32X42X0.20
Usually ships in 7-10 business days
92180K92180-1401SHIM,32X42X0.50
Usually ships in 7-10 business days
92180L92180-1402SHIM,32X42X0.70
Usually ships in 7-10 business days
92180M92180-1403SHIM,32X42X0.80
Usually ships in 7-10 business days
92180N92180-1404SHIM,32X42X0.90
Usually ships in 7-10 business days
92180O92180-1405SHIM,32X42X1.00
Usually ships in 7-10 business days
92180P92180-1406SHIM,32X42X1.10
Usually ships in 7-10 business days
92180Q92180-1407SHIM,32X42X1.20
Usually ships in 7-10 business days
92180R92180-1408SHIM,50X61X0.15
Usually ships in 7-10 business days
92180S92180-1409SHIM,50X61X0.20
Usually ships in 7-10 business days
92180T92180-1410SHIM,50X61X0.50
Usually ships in 7-10 business days
92180U92180-1411SHIM,50X61X0.70
Usually ships in 7-10 business days
92180V92180-1412SHIM,50X61X0.80
Usually ships in 7-10 business days
92180W92180-1413SHIM,50X61X0.90
Usually ships in 7-10 business days
92180X92180-1414SHIM,50X61X1.00
Usually ships in 7-10 business days
92180Y92180-1415SHIM,50X61X1.10
1 In-Stock
92180Z92180-1416SHIM,50X61X1.20
1 In-Stock
9219292192-0716TUBE,7X12X760
2 In-Stock
9220092200-1635WASHER,10X24X2.5
3 In-Stock
9221092210-1225NUT,25MM
Usually ships in 7-10 business days
92210A92210-1351NUT,LOCK,10MM
10+ In-Stock
