2016 Kawasaki BRUTE FORCE 750 4x4i Fuel Tank OEM Parts Diagram

Submodel KVF750GGF Brute Force 750 4x4i EPS (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Fuel Tank

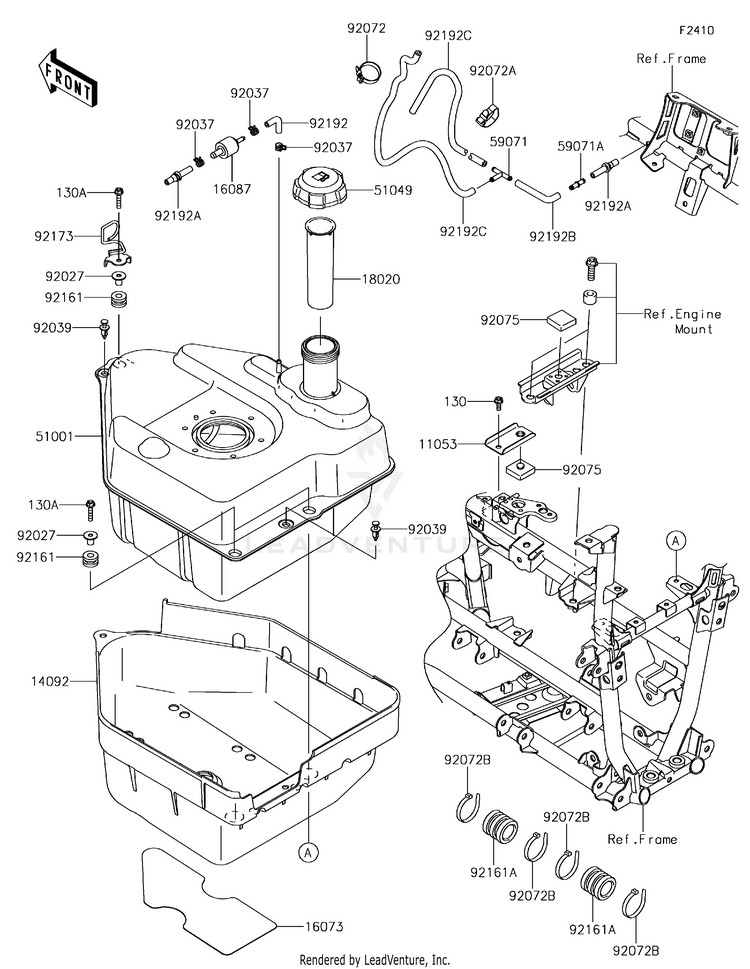

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105311053-0936BRACKET,FUEL TANK,TOP
Usually ships in 7-10 business days
130130BA0616BOLT-FLANGED,6X16
7 In-Stock
130A130BA0630BOLT-FLANGED,6X30
10+ In-Stock
1409214092-0186COVER,FUEL TANK,LWR
Usually ships in 7-10 business days
1607316073-0925

(replaces part #
16073-0034)

INSULATOR,FUEL TANK COVER,LWR
Usually ships in 7-10 business days
1608716087-0008VALVE-CHECK
4 In-Stock
1802018020-0008BAFFLE,FUEL TANK
Usually ships in 7-10 business days
5100151001-0237TANK-COMP-FUEL
Usually ships in 7-10 business days
5104951049-0718CAP-TANK,FUEL
3 In-Stock
5907159071-3705JOINT
1 In-Stock
59071A59071-3717JOINT
Usually ships in 7-10 business days
9202792027-1847COLLAR,L=16.1
6 In-Stock
9203792037-1461CLAMP,TUBE
8 In-Stock
9203992039-0865

(replaces part #
92039-0776)

RIVET
10+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
9207292072-031BAND,L=149
6 In-Stock
92072A92072-056BAND,L=186
10+ In-Stock
92072B92072-1239BAND,L=188
9 In-Stock
9207592075-1882DAMPER
10+ In-Stock
9216192161-0106DAMPER
6 In-Stock
92161A92161-1111DAMPER,FUEL TANK,RR
Usually ships in 7-10 business days
9217392173-0872CLAMP,FUEL TUBE
Usually ships in 7-10 business days
9219292192-0067TUBE,FUEL TANK-CHECK VALVE
2 In-Stock
92192A92192-0068TUBE,FRAME PIPE-CHECK VALVE
Usually ships in 7-10 business days
92192B92192-0992TUBE,5X10X80/22
Usually ships in 7-10 business days
92192C92192-0993TUBE,5X10X470
Usually ships in 7-10 business days
