2016 Kawasaki BRUTE FORCE 750 4x4i Gear Change Mechanism OEM Parts Diagram

Submodel KVF750GGF Brute Force 750 4x4i EPS (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

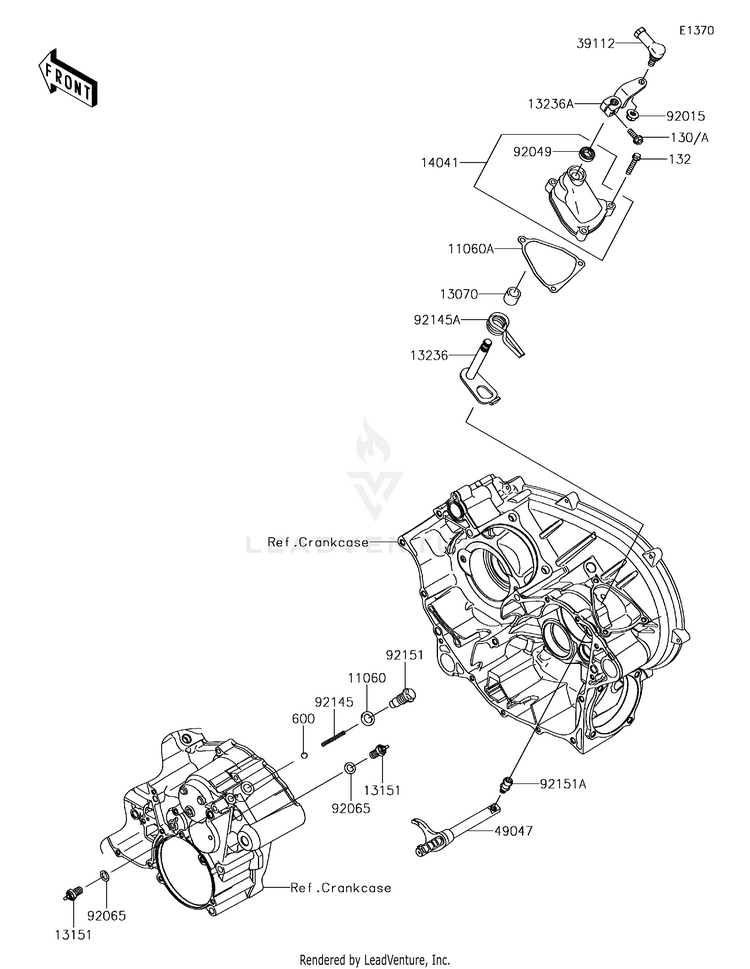

Gear Change Mechanism

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-1287GASKET,14X20X2
10+ In-Stock
11060A11060-1956GASKET,CHANGE LEVER COVER
4 In-Stock
130130CA0620BOLT-FLANGED,6X20
10+ In-Stock
1307013070-1352GUIDE
Usually ships in 7-10 business days
1315113151-1080SWITCH-COMP,NEUTRAL
7 In-Stock
132132BA0630BOLT-FLANGED-SMALL,6X30
10+ In-Stock
1323613236-0051LEVER-COMP,CHANGE
3 In-Stock
13236A13236-1343LEVER-COMP,CHANGE LEVER
Usually ships in 7-10 business days
1404114041-1136COVER-COMP,CHANGE LEVER
Usually ships in 7-10 business days
3911239112-0018RODEND-TIE,CHANGE LEVER
Usually ships in 7-10 business days
4904749047-1104ROD-SHIFT
Usually ships in 7-10 business days
600600A1000BALL-STEEL,5/16
10+ In-Stock
9201592015-1432NUT,8MM
10+ In-Stock
9204992049-1271SEAL-OIL,TB12205.5
10+ In-Stock
9206592065-058GASKET,10.5X16X1
10+ In-Stock
9214592145-1297SPRING,CHANGE POSITION
8 In-Stock
92145A92145-1299SPRING,CHANGE LEVER
Usually ships in 7-10 business days
9215192151-1687BOLT,CHANGE POSITION
Usually ships in 7-10 business days
92151A92151-1699BOLT,SHIFT ROD
Usually ships in 7-10 business days
