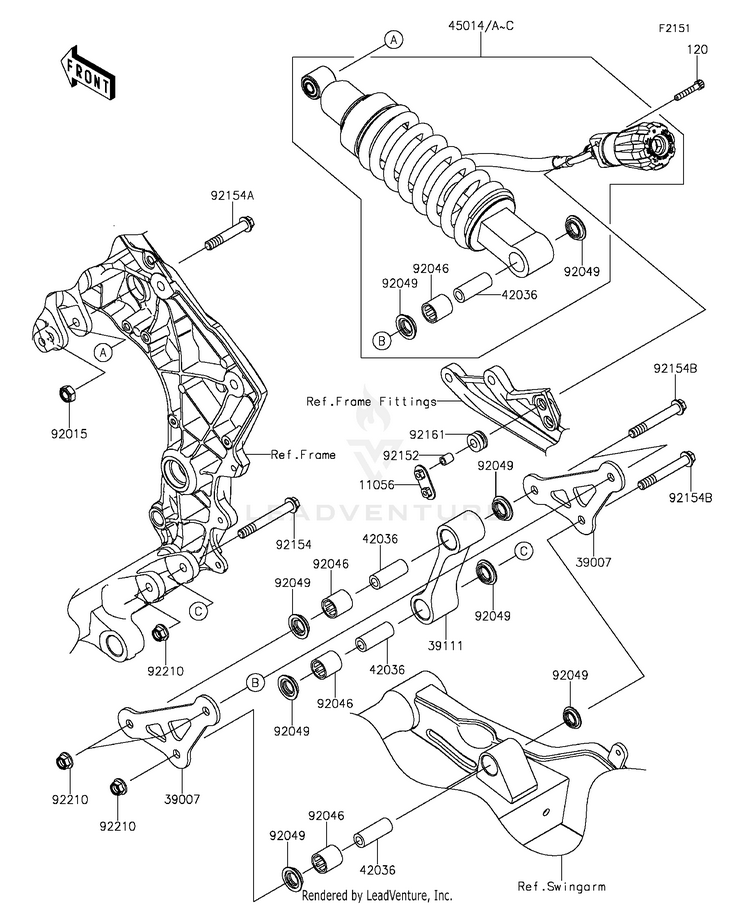

2016 Kawasaki Ninja 1000 (ABS) Suspension/Shock Absorber OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11056	11056-1914	BRACKET	Usually ships in 7-10 business days
120	120CA0635	BOLT-SOCKET,6X35	10+ In-Stock
39007	39007-0156-458	ARM-SUSP,UNI TRAK,P.S	Usually ships in 7-10 business days
39111	39111-0069-18R	ROD-TIE,SUSPENSION,F.	Usually ships in 7-10 business days
42036	42036-1342	SLEEVE,10.1X17X44.5	Usually ships in 7-10 business days
45014	45014-0457-37Q	SHOCKABSORBER,SPG SIL \| CA,US	Usually ships in 7-10 business days
45014C	45014-0457-52F	SHOCKABSORBER,P.SILVE	Usually ships in 7-10 business days
92015	92015-1189	NUT,LOCK,10MM,BLACK	7 In-Stock
92046	92046-1273	BEARING-NEEDLE,SFYZM172425	Usually ships in 7-10 business days
92049	92049-1223	SEAL-OIL,MHA17245.7F	10+ In-Stock
92152	92152-1628	COLLAR,6.4X10X12	Usually ships in 7-10 business days
92154	92154-0262	BOLT,FLANGED,10X77	Usually ships in 7-10 business days
92154A	92154-0263	BOLT,FLANGED,10X60	Usually ships in 7-10 business days
92154B	92154-0264	BOLT,FLANGED,10X67	Usually ships in 7-10 business days
92161	92161-0036	DAMPER	5 In-Stock
92210	92210-1139	NUT,LOCK,FLANGED,10MM	4 In-Stock
