2016 Kawasaki Vulcan Classic LT VN900 Fuel Tank OEM Parts Diagram

Submodel VN900DGF Vulcan 900 Classic LT (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Fuel Tank

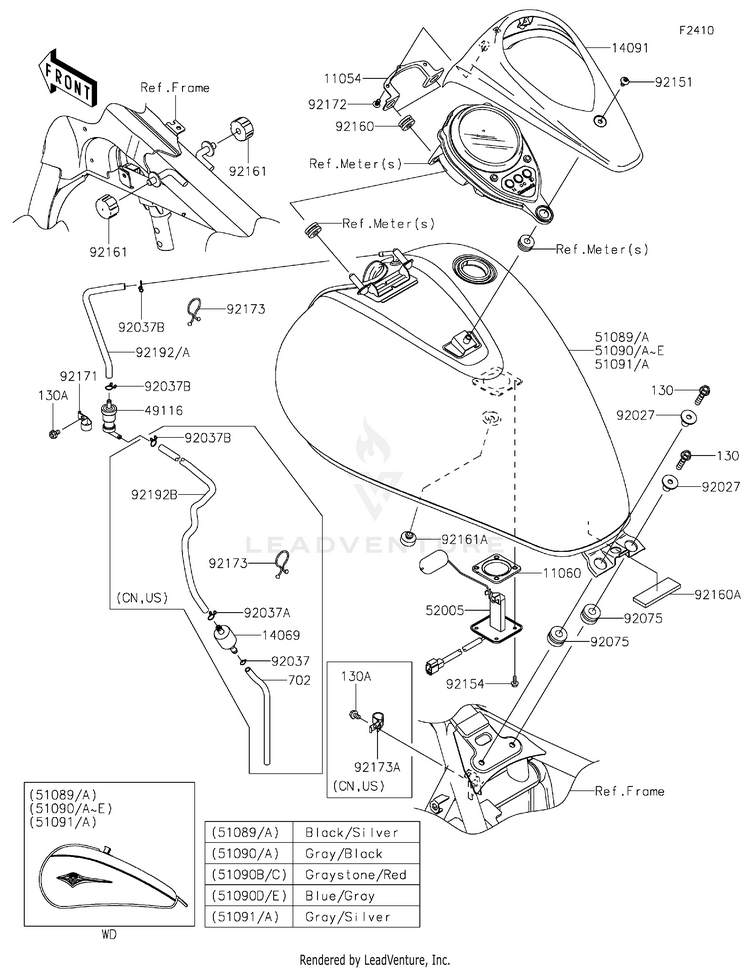

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105411054-0034BRACKET,METER,FR
Usually ships in 7-10 business days
1106011060-1952GASKET,FUEL GAUGE
1 In-Stock
1406914069-1004BREATHER,FUEL TANK | CN,US
Usually ships in 7-10 business days
1409114091-0516COVER,METER
Usually ships in 7-10 business days
4911649116-0014VALVE-ASSY,CHECK
Usually ships in 7-10 business days
5108951089-5366-54ATANK-COMP-FUEL,BLACK/SILVER | CN,US
Usually ships in 7-10 business days
51089A51089-5392-54ATANK-COMP-FUEL,BLACK/SILVER | CA
Usually ships in 7-10 business days
5109051090-5023-27UTANK-COMP-FUEL,P.M.GRAY+BLK | CN,US
Usually ships in 7-10 business days
51090A51090-5024-27UTANK-COMP-FUEL,P.M.GRAY+BLK | CA
Usually ships in 7-10 business days
51090B51090-5182-62BTANK-COMP-FUEL,M.GRAYSTONE+RED | CN,US
Usually ships in 7-10 business days
51090C51090-5183-62BTANK-COMP-FUEL,M.GRAYSTONE+RED | CA
Usually ships in 7-10 business days
51090D51090-5384-62STANK-COMP-FUEL,C.I.BLUE+GRY | CN,US
Usually ships in 7-10 business days
51090E51090-5385-62STANK-COMP-FUEL,C.I.BLUE+GRY | CA
Usually ships in 7-10 business days
5109151091-5070-65JTANK-COMP-FUEL,M.C.GRAY+SIL | CN,US
Usually ships in 7-10 business days
51091A51091-5071-65JTANK-COMP-FUEL,M.C.GRAY+SIL | CA
Usually ships in 7-10 business days
5200552005-0718GAUGE,FUEL
Usually ships in 7-10 business days
9202792027-1780COLLAR,L=19.3
7 In-Stock
9203792037-010CLAMP,TUBE | CN,US
10+ In-Stock
92037A92037-1104CLAMP,HOSE | CN,US
2 In-Stock
92037B92037-147CLAMP,TUBE | CN,US
10+ In-Stock
9207592075-1736DAMPER
6 In-Stock
9215192151-1940BOLT,SOCKET,6X12
1 In-Stock
9215492154-1856BOLT,FLANGED,5X12
Usually ships in 7-10 business days
9216092160-1162DAMPER
10+ In-Stock
92160A92160-1323DAMPER
Usually ships in 7-10 business days
