2016 Kawasaki Vulcan Classic LT VN900 Handlebar OEM Parts Diagram

Submodel VN900DGF Vulcan 900 Classic LT (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

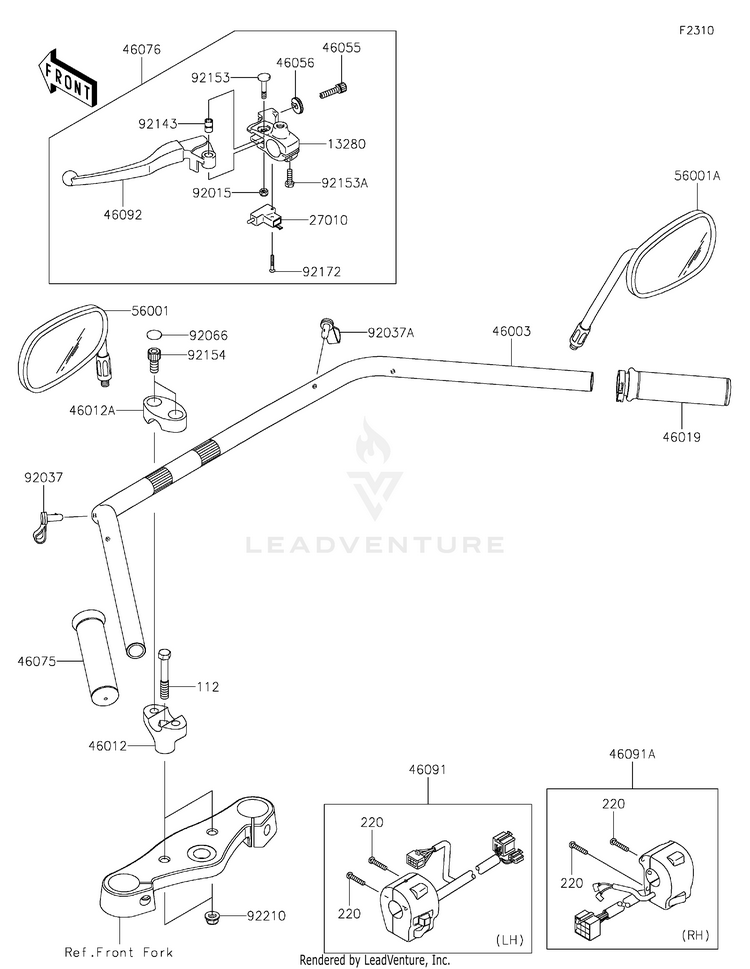

Handlebar

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
112112BA1065BOLT-UPSET,10X65
Usually ships in 7-10 business days
1328013280-1101HOLDER,CLUTCH LEVER
Usually ships in 7-10 business days
220220R0525SCREW-PAN-CROS,5X25
Usually ships in 7-10 business days
2701027010-1268SWITCH,CLUTCH
Usually ships in 7-10 business days
4600346003-0155HANDLE
Usually ships in 7-10 business days
4601246012-0085HOLDER-HANDLE,LWR
Usually ships in 7-10 business days
46012A46012-1273HOLDER-HANDLE,UPP
1 In-Stock
4601946019-1123GRIP-ASSY,THROTTLE
Usually ships in 7-10 business days
4605546055-003SCREW,CABLE ADJUST,8MM
6 In-Stock
4605646056-005NUT,CABLE ADJUST LOCK,8MM
4 In-Stock
4607546075-1212GRIP,LH
1 In-Stock
4607646076-0075LEVER-ASSY-GRIP,CLUTCH
Usually ships in 7-10 business days
4609146091-0230HOUSING-ASSY-CONTROL,LH
Usually ships in 7-10 business days
46091A46091-0231HOUSING-ASSY-CONTROL,RH
Usually ships in 7-10 business days
4609246092-1204LEVER-GRIP,CLUCTH
Usually ships in 7-10 business days
5600156001-0282MIRROR-ASSY,LH
Usually ships in 7-10 business days
56001A56001-0283MIRROR-ASSY,RH
Usually ships in 7-10 business days
9201592210-0006

(replaces part #
92015-1191)

NUT,LOCK,6MM
3 In-Stock
9203792037-1163CLAMP,SPEED,L=58
10+ In-Stock
92037A92037-1903CLAMP,SPEED,L=80.5
10+ In-Stock
9206692066-1285PLUG
1 In-Stock
9214392143-1351COLLAR
Usually ships in 7-10 business days
9215392153-0716BOLT,LEVER SET
Usually ships in 7-10 business days
92153A92153-0721BOLT,6X20
Usually ships in 7-10 business days
9215492154-0350BOLT,SOCKET,10X25
Usually ships in 7-10 business days
9217292172-0164SCREW,3X20
Usually ships in 7-10 business days
9221092210-1139NUT,LOCK,FLANGED,10MM
4 In-Stock
