2016 Kawasaki Vulcan Classic LT VN900 Water Pipe OEM Parts Diagram

Submodel VN900DGF Vulcan 900 Classic LT (2016)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Water Pipe

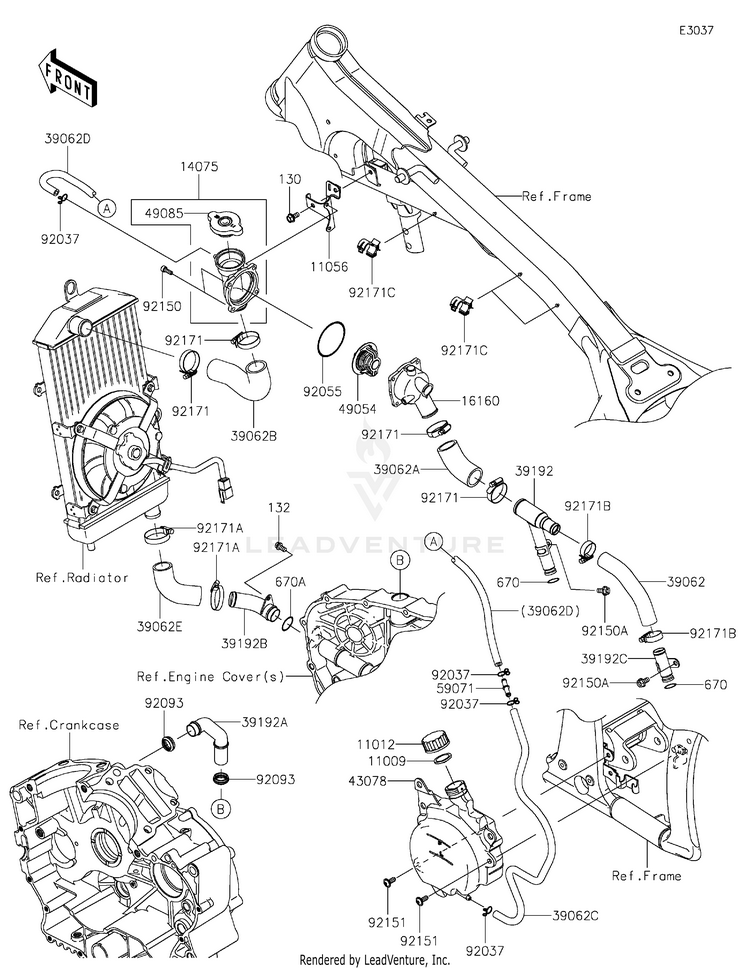

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1145GASKET,RESERVOIR TANK CAP
3 In-Stock
1101211012-1084CAP
10+ In-Stock
1105611056-1356BRACKET
Usually ships in 7-10 business days
130130BA0614BOLT-FLANGED,6X14
10+ In-Stock
132132BA0612BOLT-FLANGED-SMALL,6X12
10+ In-Stock
1407514075-0001CAP-ASSY
Usually ships in 7-10 business days
1616016160-0781BODY
Usually ships in 7-10 business days
3906239062-0118HOSE-COOLING,RR HEAD-PIPE
Usually ships in 7-10 business days
39062A39062-0120HOSE-COOLING,PIPE-THERMO
Usually ships in 7-10 business days
39062B39062-0121HOSE-COOLING,THERMO-RAD
Usually ships in 7-10 business days
39062C39062-0124HOSE-COOLING,RESERVOIR-JOINT
Usually ships in 7-10 business days
39062D39062-0132HOSE-COOLING,JOINT-THERMO
Usually ships in 7-10 business days
39062E39062-0717HOSE-COOLING,PIPE-WATER PUMP
Usually ships in 7-10 business days
3919239192-0042PIPE-WATER,FR HEAD
Usually ships in 7-10 business days
39192A39192-0043PIPE-WATER
Usually ships in 7-10 business days
39192B39192-0044PIPE-WATER
Usually ships in 7-10 business days
39192C39192-0048PIPE-WATER,RR HEAD
Usually ships in 7-10 business days
4307843078-0045RESERVOIR
Usually ships in 7-10 business days
4905449054-0004THERMOSTAT
10+ In-Stock
4908549085-1066CAP-ASSY-PRESSURE
7 In-Stock
5907159071-3717JOINT
Usually ships in 7-10 business days
670670B2014O RING,14MM
10+ In-Stock
670A670B2021O RING,21MM
5 In-Stock
9203792037-147CLAMP,TUBE
10+ In-Stock
9205592055-0831RING-O,53.5X2.6
7 In-Stock
9209392093-1427SEAL
6 In-Stock
9215092150-1180BOLT,SOCKET,5X14
Usually ships in 7-10 business days
92150A92150-1826BOLT,FLANGED,6X12
Usually ships in 7-10 business days
9215192151-1654BOLT,SOCKET,6X14
10+ In-Stock
9217192171-0179CLAMP
10+ In-Stock
92171A92171-0261CLAMP
10+ In-Stock
92171B92171-0338CLAMP
10+ In-Stock
92171C92171-1424CLAMP,15MM DIA.
3 In-Stock
