2017 Kawasaki Ninja ZX-6R KRT Edition Clutch OEM Parts Diagram

Submodel ZX636EHFA Ninja ZX-6R KRT Edition (2017)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Clutch

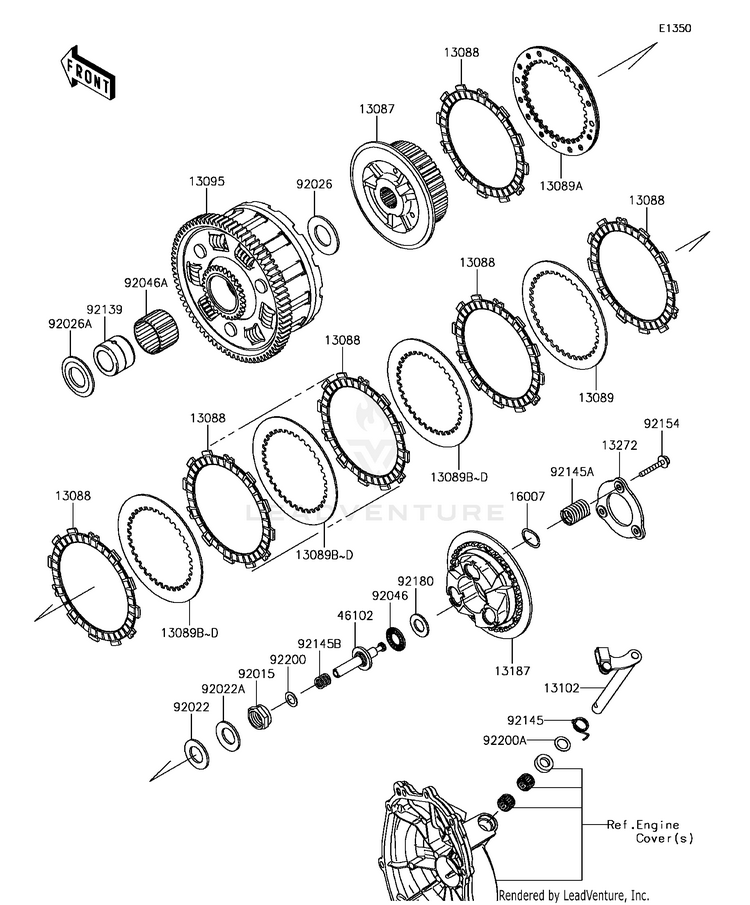

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1308713087-0561HUB-CLUTCH
1 In-Stock
1308813088-0560PLATE-FRICTION
Usually ships in 7-10 business days
1308913089-0023PLATE-CLUTCH,T=2.3
Usually ships in 7-10 business days
13089A13089-0024PLATE-CLUTCH,SPG COMP
Usually ships in 7-10 business days
13089B13089-1073PLATE-CLUTCH,T=2.0
10+ In-Stock
13089C13089-1084PLATE-CLUTCH,T=2.3
Usually ships in 7-10 business days
13089D13089-1115PLATE-CLUTCH,T=2.6
Usually ships in 7-10 business days
1309513095-0570HOUSING-COMP-CLUTCH
Usually ships in 7-10 business days
1310213102-0032RELEASE-COMP-CLUTCH
Usually ships in 7-10 business days
1318713187-0021PLATE-CLUTCH OPERATING
Usually ships in 7-10 business days
1327213272-1413PLATE
Usually ships in 7-10 business days
1600716007-0711SEAT-SPRING
6 In-Stock
4610246102-0090ROD
Usually ships in 7-10 business days
9201592015-1555NUT,20MM
7 In-Stock
9202292022-1116WASHER,20.3X36X2.3
2 In-Stock
92022A92022-1868WASHER,20.3X36X3.7
7 In-Stock
9202692026-022SPACER,25.5X47X2.5
Usually ships in 7-10 business days
92026A92026-1356SPACER
Usually ships in 7-10 business days
9204692046-1052BEARING-NEEDLE,AXK1102
10+ In-Stock
92046A92046-1263BEARING-NEEDLE,K38X43X28.8X
Usually ships in 7-10 business days
9213992139-0067BUSHING,25X38X29.05
Usually ships in 7-10 business days
9214592145-1741

(replaces part #
92145-0485)

SPRING
Usually ships in 7-10 business days
92145A92145-0937SPRING
Usually ships in 7-10 business days
92145B92145-1159SPRING,ROD
Usually ships in 7-10 business days
9215492154-1116BOLT,FLANGED,6X35
Usually ships in 7-10 business days
9218092180-0149SHIM,15.3X27.5X2.0
Usually ships in 7-10 business days
9220092200-1423WASHER,11.2X18X0.5
Usually ships in 7-10 business days
92200A92200-1487WASHER,12X18.5X0.5
7 In-Stock
