2017 Kawasaki Ninja ZX-6R KRT Edition Front Fork OEM Parts Diagram

Submodel ZX636EHFA Ninja ZX-6R KRT Edition (2017)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

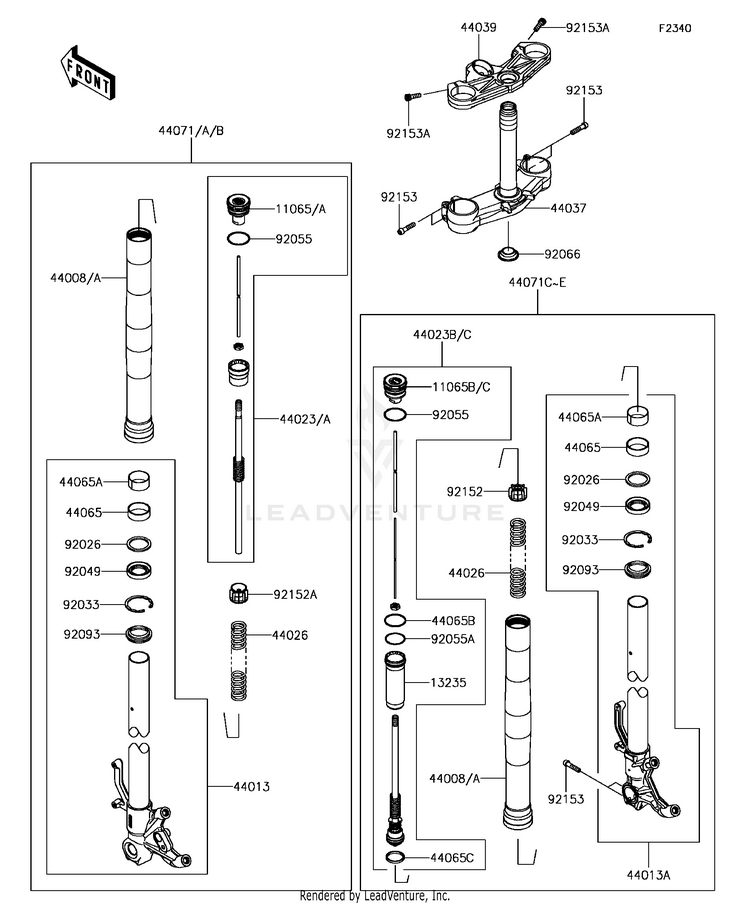

Front Fork

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0793-10BCAP,LH,P.RED
Usually ships in 7-10 business days
11065B11065-0794-10BCAP,RH,P.RED
Usually ships in 7-10 business days
1323513235-0008GUIDE-COMP,ROD
Usually ships in 7-10 business days
44008A44008-0063-499PIPE-FORK OUTER,A.BLACK
Usually ships in 7-10 business days
4401344013-0206PIPE-FORK INNER,LH
Usually ships in 7-10 business days
44013A44013-0207PIPE-FORK INNER,RH
Usually ships in 7-10 business days
4402344023-0110-10BCYLINDER-SET-FORK,LH,P.RED
Usually ships in 7-10 business days
44023B44023-0114-10BCYLINDER-SET-FORK,RH,P.RED
Usually ships in 7-10 business days
4402644026-0174SPRING-FRONT FORK
Usually ships in 7-10 business days
4403744037-0136HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-0123-499HOLDER-FORK UPPER,A.BLACK
Usually ships in 7-10 business days
4406544065-0030BUSHING-FRONT FORK,GUIDE
8 In-Stock
44065A44065-0031BUSHING-FRONT FORK,SLIDE
Usually ships in 7-10 business days
44065B44065-0033BUSHING-FRONT FORK
5 In-Stock
44065C44065-0045BUSHING-FRONT FORK
Usually ships in 7-10 business days
4407144071-0834-39VDAMPER-ASSY,LH,BLACK+RED
Usually ships in 7-10 business days
44071C44071-0911-39VDAMPER-ASSY,RH,BLACK+RED
Usually ships in 7-10 business days
9202692026-1276SPACER,FORK OUTER
Usually ships in 7-10 business days
9203392033-0729RING-SNAP
Usually ships in 7-10 business days
9204992049-0125SEAL-OIL
6 In-Stock
9205592055-0142RING-O
Usually ships in 7-10 business days
92055A92055-0174RING-O
Usually ships in 7-10 business days
9206692066-0032PLUG
Usually ships in 7-10 business days
9209392093-0035SEAL,DUST
10+ In-Stock
9215292152-0757COLLAR
Usually ships in 7-10 business days
92152A92152-1888COLLAR
Usually ships in 7-10 business days
9215392153-0854BOLT,SOCKET,8X35
10+ In-Stock
92153A92153-1625BOLT,SOCKET,8X25
1 In-Stock
