2018 Kawasaki BRUTE FORCE 750 4x4i Crankcase OEM Parts Diagram

Submodel KVF750JJF Brute Force 750 4x4i EPS (2018)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Crankcase

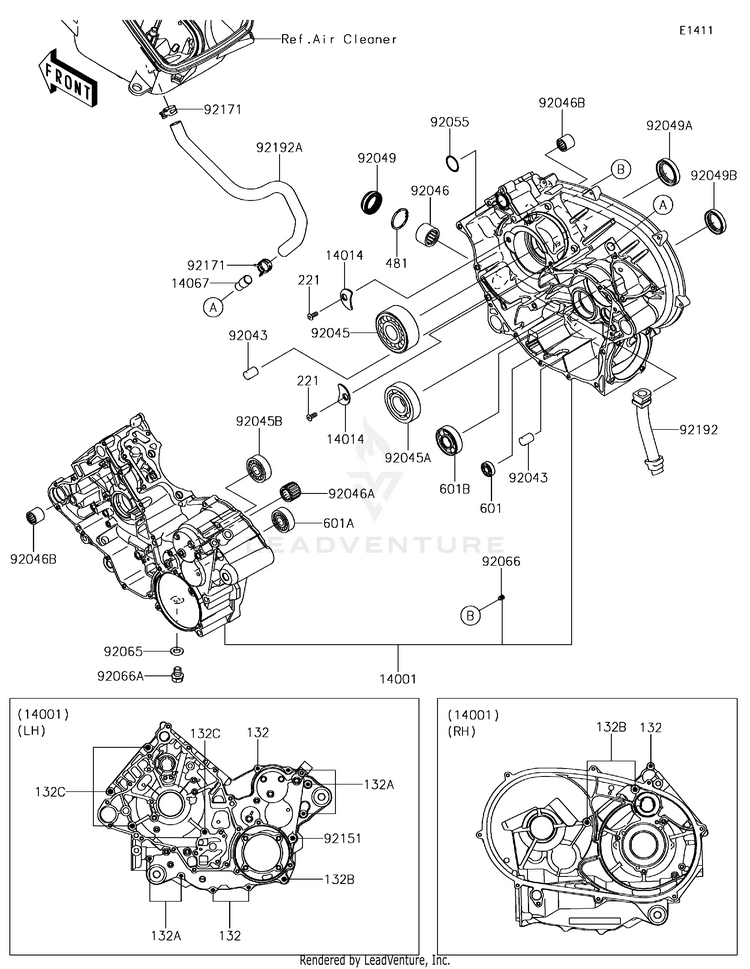

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
132132BD0640BOLT-FLANGED-SMALL,6X40
10+ In-Stock
132A132BD0665BOLT-FLANGED-SMALL,6X65
10+ In-Stock
132B132BD08110BOLT-FLANGED-SMALL,8X110
Usually ships in 7-10 business days
132C132BD0875BOLT-FLANGED-SMALL,8X75
Usually ships in 7-10 business days
1400114101-0045

(replaces part #
14001-0562)

SET-CRANKCASE
Usually ships in 7-10 business days
1401414014-0006PLATE-POSITION
2 In-Stock
1406714067-006FITTING,BREATHER
3 In-Stock
221221AA0616SCREW-CSK-CROS,6X16
10+ In-Stock
481481J3700CIRCLIP-TYPE-C,37MM
6 In-Stock
601601A6000BEARING-BALL
5 In-Stock
601A92045-0076

(replaces part #
601A6004)

BEARING-BALL,#6004
10+ In-Stock
601B601A6304BEARING-BALL,#6304
3 In-Stock
9204392043-1506PIN,10X14
10+ In-Stock
9204592045-0012BEARING-BALL,5208X2-A-ECG45
3 In-Stock
92045A92045-1190BEARING-BALL,6306SH2
3 In-Stock
92045B92045-1389BEARING-BALL,6303LUA
2 In-Stock
9204692046-0022BEARING-NEEDLE
5 In-Stock
92046A92046-0039BEARING-NEEDLE
4 In-Stock
92046B92046-1118BEARING-NEEDLE,TA202715ZE
10+ In-Stock
9204992049-0755SEAL-OIL,TC9Y 28X42X8X12
3 In-Stock
92049A92049-1452SEAL-OIL,TC 35X50X8
10+ In-Stock
92049B92049-1575SEAL-OIL,HTC 30X45X8
10+ In-Stock
9205592055-1136RING-O,25.7X2.4
10+ In-Stock
9206592065-097GASKET,12X22X2
10+ In-Stock
9206692066-1012PLUG,OIL LINE,7.2X8
7 In-Stock
92066A92066-1174PLUG,OIL DRAIN,12X15
10+ In-Stock
AFTERMARKET ALTERNATIVE
$11.99$9.9910+ In-Stock
9215192151-1689BOLT,8X110
Usually ships in 7-10 business days
9217192171-0329CLAMP
2 In-Stock
9219292192-0970TUBE,OIL RETURN
Usually ships in 7-10 business days
92192A92192-1157TUBE,CRANKCASE-A/C
Usually ships in 7-10 business days
