2018 Kawasaki Ninja 1000 (ABS) Accessory(Slider) OEM Parts Diagram

Submodel ZX1000WJF Ninja 1000 ABS (2018)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Accessory(Slider)

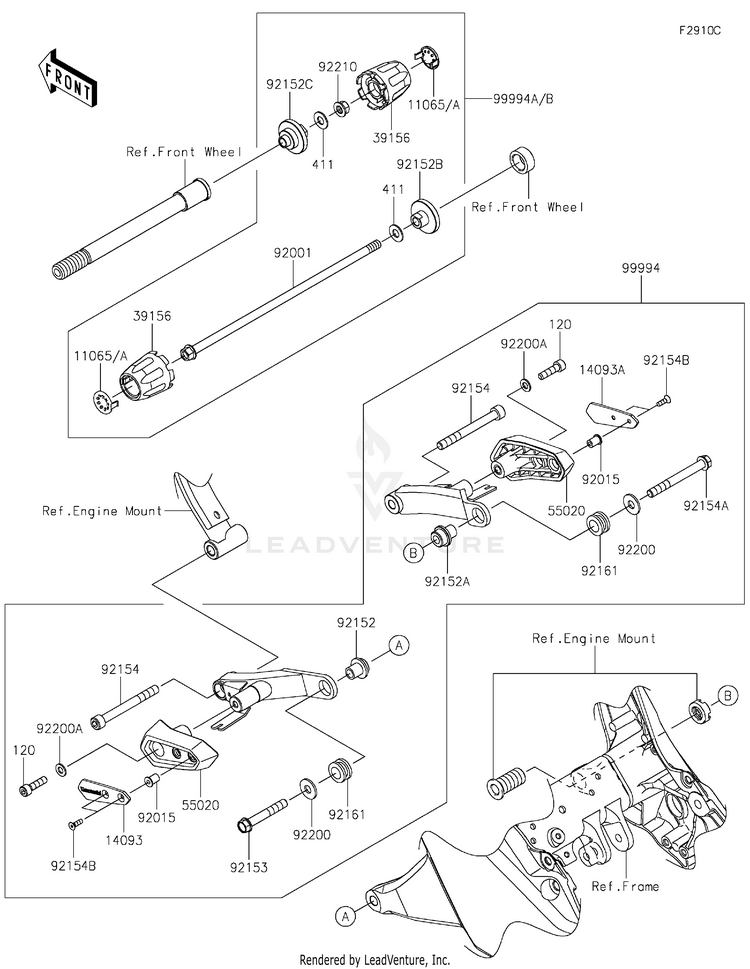

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0960-54NCAP,B.SILVER
Usually ships in 7-10 business days
11065A11065-1313-54NCAP,B.SILVER
Usually ships in 7-10 business days
120120CA0830BOLT-SOCKET,8X30
10+ In-Stock
1409314093-0350COVER,SLIDER,LH
Usually ships in 7-10 business days
14093A14093-0351COVER,SLIDER,RH
Usually ships in 7-10 business days
3915639156-2212PAD,AXLE SLIDER
Usually ships in 7-10 business days
411411AA1000WASHER-PLAIN,10MM
10+ In-Stock
5502055020-1997GUARD
Usually ships in 7-10 business days
9200192001-1624BOLT,FLANGED,10X320,BLACK
Usually ships in 7-10 business days
9201592015-1757NUT,WELL,5MM
10+ In-Stock
9215292152-1519COLLAR,RR,LH
Usually ships in 7-10 business days
92152A92152-1520COLLAR,RR,RH
Usually ships in 7-10 business days
92152B92152-2305COLLAR,LH,L=25.5
Usually ships in 7-10 business days
92152C92152-2307COLLAR,RH,L=34.1
Usually ships in 7-10 business days
9215392153-1931BOLT,FLANGED,10X65
Usually ships in 7-10 business days
9215492154-0447BOLT,SOCKET,10X95
Usually ships in 7-10 business days
92154A92154-0448BOLT,FLANGED,10X90
Usually ships in 7-10 business days
92154B92154-1014BOLT,SOCKET,5X16
Usually ships in 7-10 business days
9216192161-1361DAMPER,15.5X26X14.5
Usually ships in 7-10 business days
9220092200-0088WASHER,10.5X26X2.3
Usually ships in 7-10 business days
92200A92200-0807WASHER,8.4X16X1.6
Usually ships in 7-10 business days
9221092210-1139NUT,LOCK,FLANGED,10MM
4 In-Stock
9999499994-0864SLIDER KIT
Usually ships in 7-10 business days
99994A99994-1276

(replaces part #
99994-0865)

KIT,FRONT AXLE SLIDER
Usually ships in 7-10 business days
99994B99994-1276KIT,FRONT AXLE SLIDER
Usually ships in 7-10 business days
