2018 Kawasaki Ninja 1000 (ABS) Chassis Electrical Equipment OEM Parts Diagram

Submodel ZX1000WJF Ninja 1000 ABS (2018)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Chassis Electrical Equipment

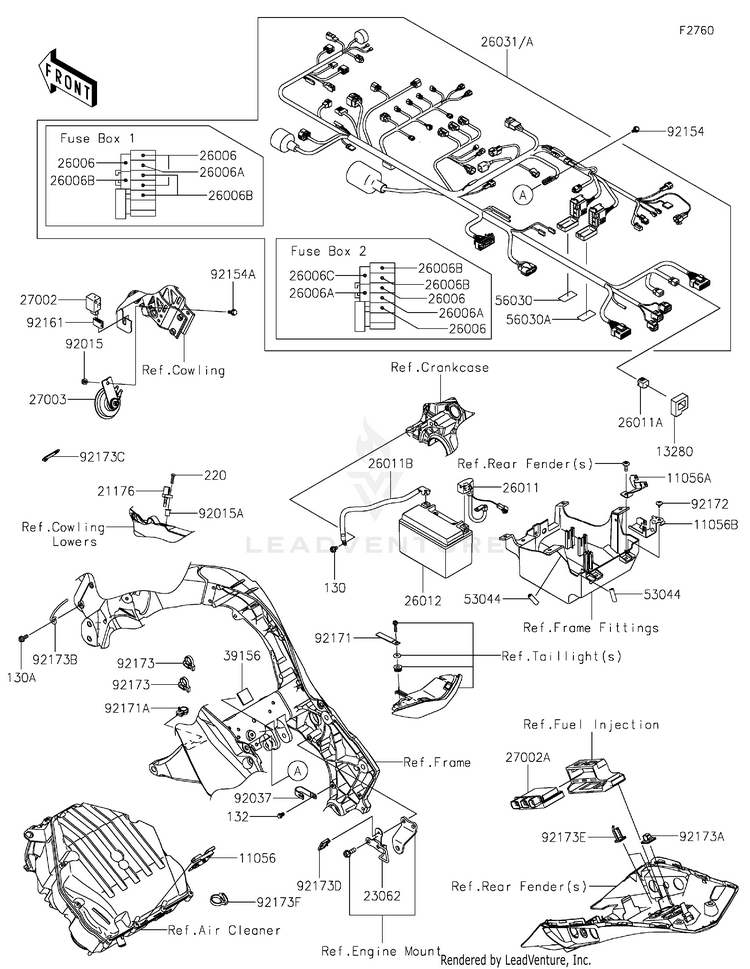

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-2434BRACKET,SPEED SENSOR
Usually ships in 7-10 business days
11056A11056-2992BRACKET,RR SIGNAL
Usually ships in 7-10 business days
11056B11056-3924BRACKET,BATTERY(+)
Usually ships in 7-10 business days
1328013280-0907HOLDER
Usually ships in 7-10 business days
2117621176-0048SENSOR,AIR TEMPERATURE
4 In-Stock
2306223062-0811BRACKET-COMP,CABLE GUIDE
Usually ships in 7-10 business days
2600626006-0001FUSE,MINI BLADE,15A,BLUE
Usually ships in 7-10 business days
26006A26006-0020FUSE,MINI BLADE,25A,NATURAL
Usually ships in 7-10 business days
26006B26006-0055FUSE,MINI BLADE,7.5A,BROWN
Usually ships in 7-10 business days
26006C26006-1080FUSE,MINI BLADE,30A,GREEN
Usually ships in 7-10 business days
2601126011-0252WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
26011A26011-0275WIRE-LEAD,CONNECTOR COVER
Usually ships in 7-10 business days
26011B26011-0822WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
2601226012-1524

(replaces part #
26012-0838)

BATTERY,YTX9-BS,12V 8AH
Usually ships in 7-10 business days
2603126031-2301HARNESS,MAIN | CN,US
Usually ships in 7-10 business days
26031A26031-2302HARNESS,MAIN | CA
Usually ships in 7-10 business days
2700227002-0006RELAY-ASSY,SIGNAL LAMP
1 In-Stock
27002A27002-0050

(replaces part #
27002-0025)

RELAY-ASSY
4 In-Stock
2700327003-0126HORN
Usually ships in 7-10 business days
3915639156-1766PAD,30X30X3
Usually ships in 7-10 business days
5304453044-0001TRIM,L=30
2 In-Stock
5603056030-0878LABEL,FUSE BOX2
Usually ships in 7-10 business days
56030A56030-0985LABEL,FUSE BOX1
Usually ships in 7-10 business days
9201592015-1367NUT,FLANGED,6MM
10+ In-Stock
92015A92015-1757NUT,WELL,5MM
10+ In-Stock
9203792037-2014CLAMP,CABLE,STEEL SHEET
Usually ships in 7-10 business days
9215492154-0551BOLT,FLANGED,6X16
8 In-Stock
92154A92154-1851BOLT,FLANGED,6X16
10+ In-Stock
9216192161-0283DAMPER,SIGNAL RELAY
Usually ships in 7-10 business days
9217192171-0652CLAMP,L=60
10+ In-Stock
92171A92171-1722CLAMP,EDGE CLIP
Usually ships in 7-10 business days
9217292172-0003SCREW,TAPPING,6X12
4 In-Stock
9217392173-0970CLAMP,SNAPPER
Usually ships in 7-10 business days
92173A92173-1055CLAMP,DRAIN
Usually ships in 7-10 business days
92173B92173-1199CLAMP,IRON WIRE
Usually ships in 7-10 business days
92173C92173-1229CLAMP,RUBBER PLATE
Usually ships in 7-10 business days
92173D92173-1242CLAMP,CABLE CLIP
Usually ships in 7-10 business days
92173E92173-1269CLAMP,LOCKING WIRE SADDLE
Usually ships in 7-10 business days
