2019 Kawasaki BRUTE FORCE 750 4x4i Front Bevel Gear OEM Parts Diagram

Submodel KVF750LKF Brute Force 750 4x4i (2019)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

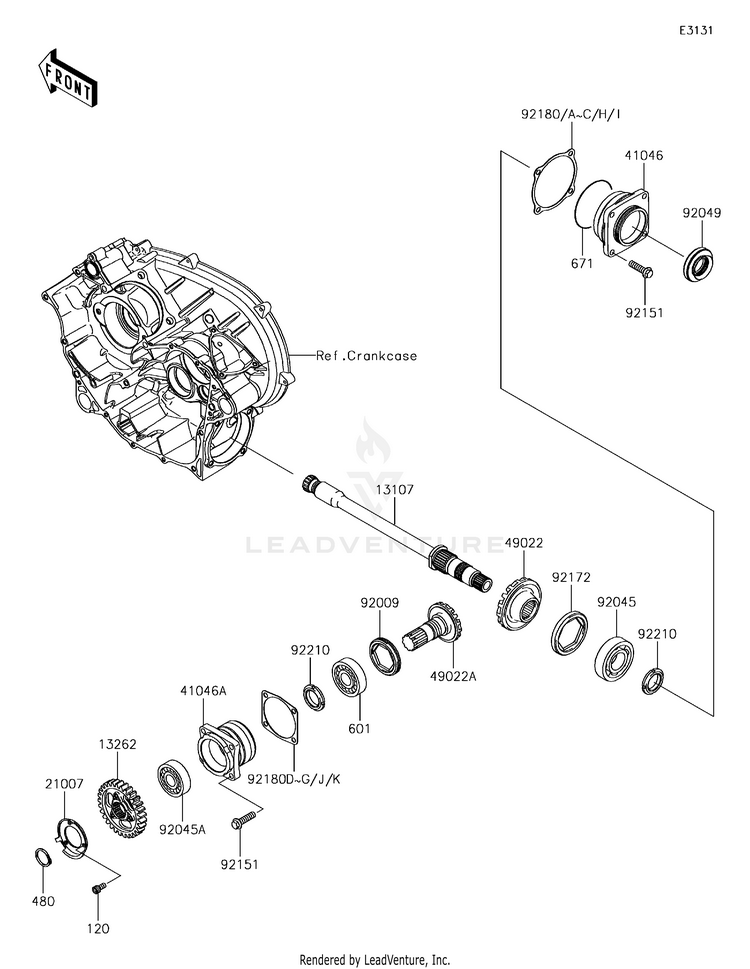

Front Bevel Gear

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CA0612BOLT-SOCKET,6X12
10+ In-Stock
1310713107-0727SHAFT,F/R OUTPUT
Usually ships in 7-10 business days
1326213262-0960GEAR,OUTPUT,29T
Usually ships in 7-10 business days
2100721007-1416ROTOR,REVERSE SENSOR
Usually ships in 7-10 business days
4104641046-0025HOUSING-BEARING
Usually ships in 7-10 business days
41046A41046-1101HOUSING-BEARING
Usually ships in 7-10 business days
480480J2800CIRCLIP-TYPE-C,28MM
9 In-Stock
4902249022-0011GEAR-BEVEL,DRIVEN,20T
Usually ships in 7-10 business days
49022A49022-1192GEAR-BEVEL,DRIVE,12T
Usually ships in 7-10 business days
60192045-0110

(replaces part #
601B6206)

BEARING-BALL,6206-9C3
Usually ships in 7-10 business days
671671D2585O RING
10+ In-Stock
9200992009-1914SCREW,64MM
Usually ships in 7-10 business days
9204592045-1190BEARING-BALL,6306SH2
3 In-Stock
92045A92045-1207BEARING-BALL,62/28
2 In-Stock
9204992049-0160SEAL-OIL
8 In-Stock
9215192151-1688BOLT-FLANGED-SMALL,8X30
Usually ships in 7-10 business days
9217292172-0371SCREW,SET,75X10
Usually ships in 7-10 business days
9218092180-1307SHIM,DRIVEN,T=0.15
3 In-Stock
92180A92180-1308SHIM,DRIVEN,T=0.20
1 In-Stock
92180B92180-1309SHIM,DRIVEN,T=0.50
1 In-Stock
92180C92180-1310SHIM,DRIVEN,T=0.80
1 In-Stock
92180D92180-1311SHIM,DRIVE,T=0.15
2 In-Stock
92180E92180-1312SHIM,DRIVE,T=0.20
3 In-Stock
92180F92180-1313SHIM,DRIVE,T=0.50
2 In-Stock
92180G92180-1314SHIM,DRIVE,T=0.80
1 In-Stock
92180H92180-1349SHIM,DRIVEN,T=1.00
2 In-Stock
92180I92180-1350SHIM,DRIVEN,T=1.20
2 In-Stock
92180J92180-1351SHIM,DRIVE,T=1.00
2 In-Stock
92180K92180-1352SHIM,DRIVE,T=1.20
3 In-Stock
9221092210-1294NUT,30MM
Usually ships in 7-10 business days
