2019 Kawasaki BRUTE FORCE 750 4x4i Throttle OEM Parts Diagram

Submodel KVF750LKF Brute Force 750 4x4i (2019)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Throttle

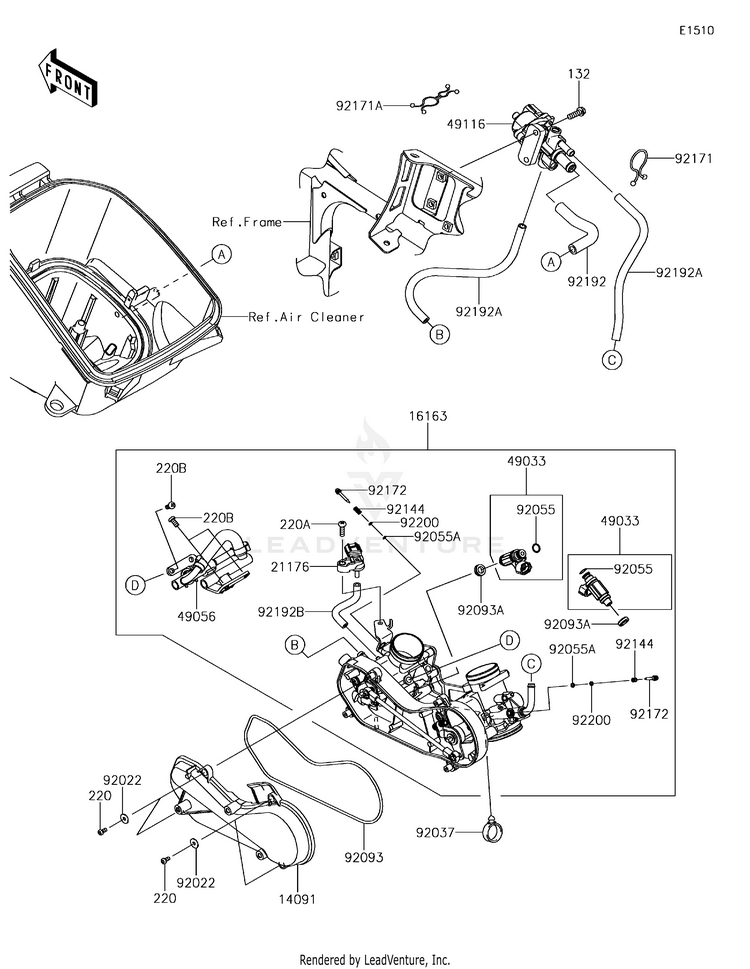

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
132132BD0618BOLT-FLANGED-SMALL,6X18
Usually ships in 7-10 business days
1409114091-1731COVER,THROTTLE LINK
Usually ships in 7-10 business days
1616316163-0792THROTTLE-ASSY
Usually ships in 7-10 business days
2117621176-0111SENSOR,PRESSURE
Usually ships in 7-10 business days
220220AA0408SCREW-PAN-CROS,4X8
10+ In-Stock
220A220AA0516SCREW-PAN-CROS,5X16
5 In-Stock
220B220AA0612

(replaces part #
220D0612)

SCREW-PAN-CROS,6X12
10+ In-Stock
4903349033-0011NOZZLE-INJECTION
3 In-Stock
4905649056-0034PIPE-INJECTION
Usually ships in 7-10 business days
4911649116-0021VALVE-ASSY,ISC
1 In-Stock
9202292022-1380WASHER,5.2X13X1
10+ In-Stock
9203792037-1827CLAMP,HOSE
10+ In-Stock
9205592055-1622RING-O,INJECTION NOZZLE
10+ In-Stock
92055A92055-1658RING-O,AIR SCREW
5 In-Stock
9209392093-0082SEAL
Usually ships in 7-10 business days
92093A92093-0127SEAL
4 In-Stock
9214492144-1674SPRING
Usually ships in 7-10 business days
9217192171-1185CLAMP
Usually ships in 7-10 business days
92171A92171-1438CLAMP
Usually ships in 7-10 business days
9217292172-0156SCREW
Usually ships in 7-10 business days
9219292192-0437TUBE
Usually ships in 7-10 business days
92192A92192-0439TUBE
Usually ships in 7-10 business days
92192B92192-0914TUBE
Usually ships in 7-10 business days
9220092200-1564WASHER,PILOT AIR SCREW
8 In-Stock
