2019 Kawasaki MULE Pro-FXT 820 EPS Taillight(S) OEM Parts Diagram

Submodel KAF820BKF Mule PRO-FXT EPS (2019)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Taillight(s)

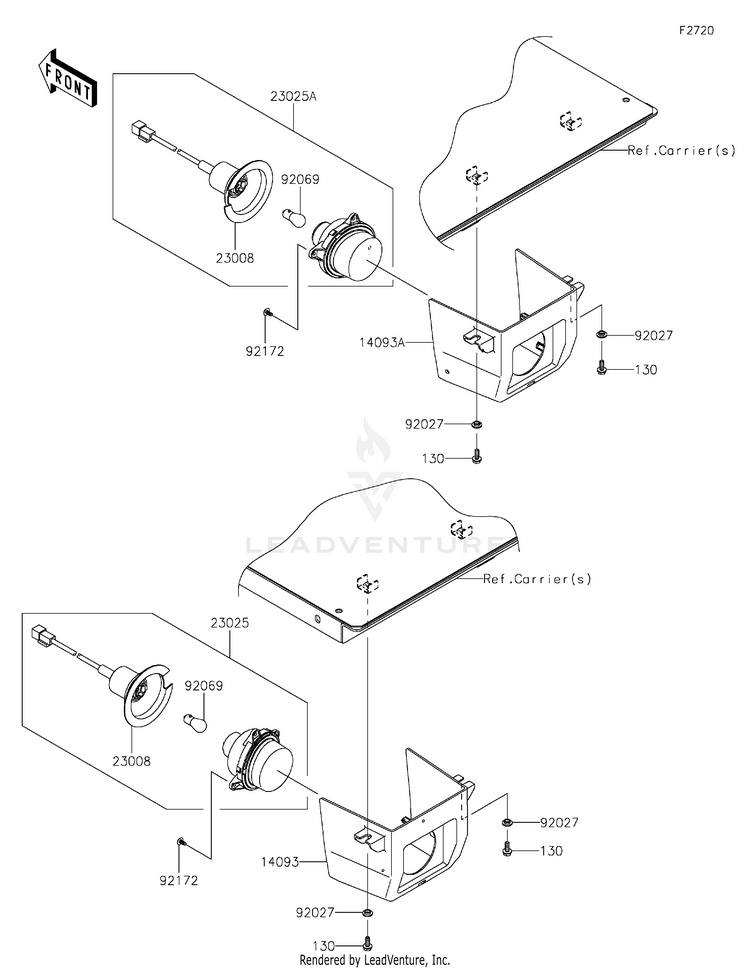

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA0616BOLT-FLANGED,6X16
Usually ships in 7-10 business days
1409314093-0580COVER,TAIL LAMP,LH
Usually ships in 7-10 business days
14093A14093-0581COVER,TAIL LAMP,RH
Usually ships in 7-10 business days
2300823008-0162SOCKET-ASSY
Usually ships in 7-10 business days
2302523025-0334LAMP-TAIL,LH
Usually ships in 7-10 business days
23025A23025-0341LAMP-TAIL,RH
Usually ships in 7-10 business days
9202792027-1168COLLAR,L=4.6
10+ In-Stock
9206992069-Y001

(replaces part #
92069-0072)

BULB
6 In-Stock
9217292172-0262SCREW,TAPPING,5X10
10+ In-Stock
