2019 Kawasaki MULE SX 400 4x4 XC Headlight(S) OEM Parts Diagram

Submodel KAF400KKF Mule SX 4X4 XC (2019)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Headlight(s)

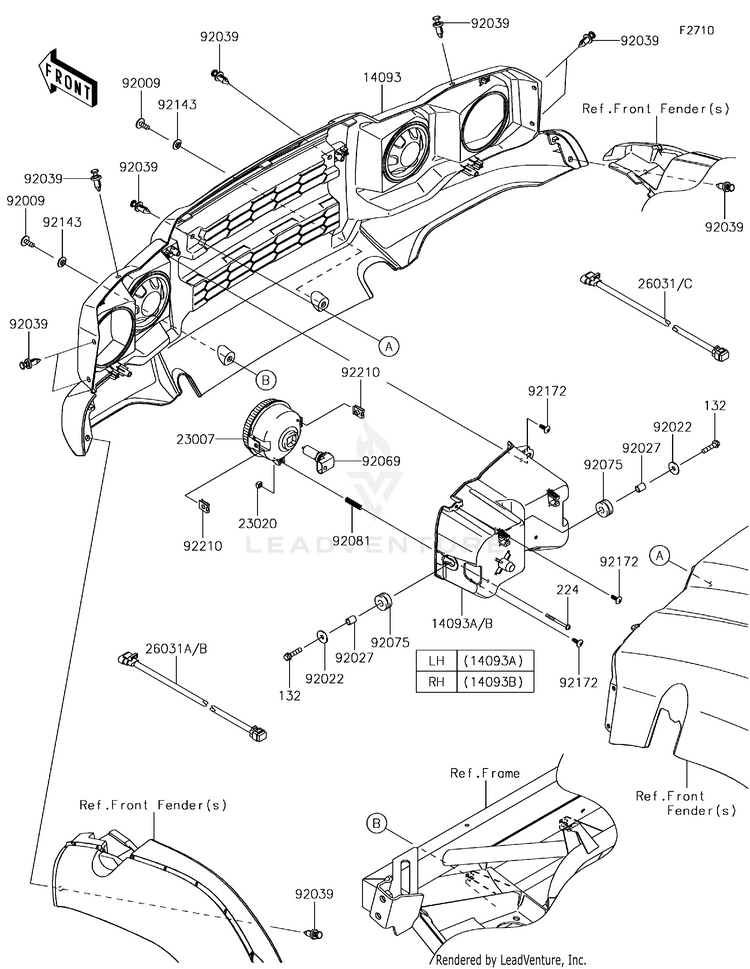

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13292153-1148

(replaces part #
132BA0625)

BOLT,6X25
10+ In-Stock
1409314093-0392COVER,FR GRILLE
Usually ships in 7-10 business days
14093A14093-0394COVER,HEAD LAMP,LH
Usually ships in 7-10 business days
14093B14093-0395COVER,HEAD LAMP,RH
Usually ships in 7-10 business days
224224AA0445SCREW-PAN-WP-CROS,4X45
9 In-Stock
2300723007-0096LENS-COMP,HEAD LAMP
5 In-Stock
2302023020-018NUT,4MM,FOCUS ADJUST
2 In-Stock
2603126031-1830HARNESS,SUB,RH
Usually ships in 7-10 business days
26031A26031-1982HARNESS,SUB,LH
Usually ships in 7-10 business days
26031B26031-2384HARNESS,HEAD LAMP,LH
Usually ships in 7-10 business days
26031C26031-2385HARNESS,HEAD LAMP,RH
1 In-Stock
9200992009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
9202292200-0283

(replaces part #
92022-125)

WASHER,6.5X20X1.6
10+ In-Stock
9202792027-162COLLAR,6.8X10X12
10+ In-Stock
9203992039-0865

(replaces part #
92039-0776)

RIVET
10+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
9206992069-0019BULB,12V 35/35W
10+ In-Stock
9207592075-1690DAMPER,10X24X12
10+ In-Stock
9208192081-1896SPRING,FOCUS ADJUST
4 In-Stock
9214392143-1087COLLAR
10+ In-Stock
9217292172-0265SCREW,TAPPING,5X14
10+ In-Stock
9221092210-1125NUT
10+ In-Stock
