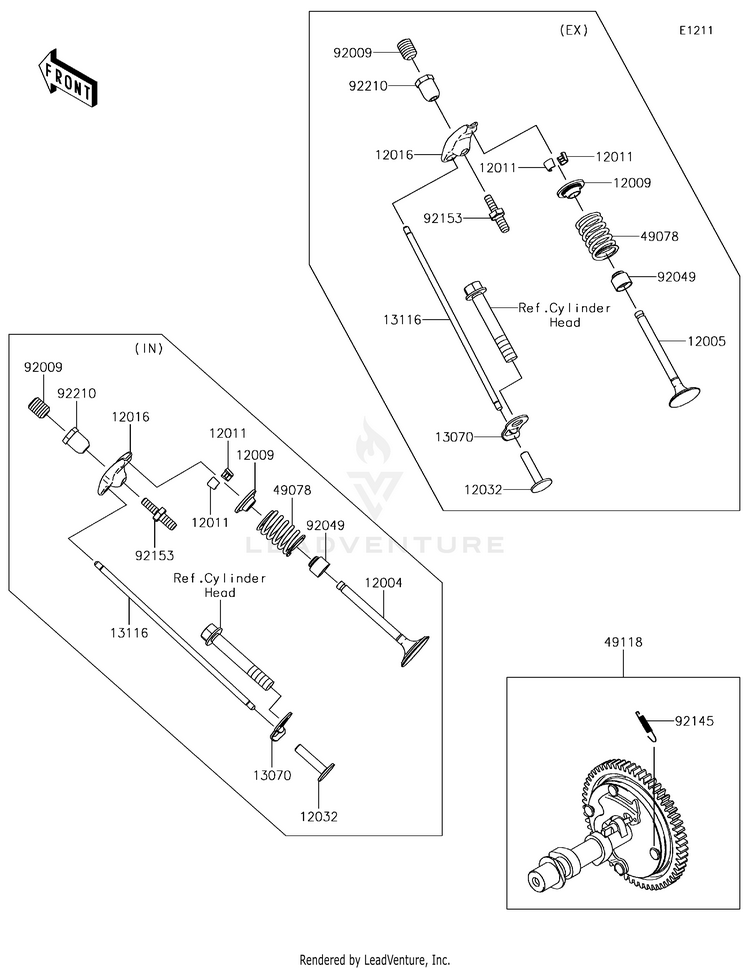

2019 Kawasaki MULE SX 400 4x4 XC Valve(S)/Camshaft(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
12004	12004-7004	VALVE-INTAKE	3 In-Stock
12005	12005-7013	VALVE-EXHAUST	4 In-Stock
12009	12009-7004	RETAINER-VALVE SPRING	Usually ships in 7-10 business days
12011	12011-2052	COLLET	Usually ships in 7-10 business days
12016	12016-7007	ARM-ROCKER	Usually ships in 7-10 business days
12032	12032-7001	TAPPET	Usually ships in 7-10 business days
13070	13070-7012	GUIDE,ROD-PUSH	Usually ships in 7-10 business days
13116	13116-7004	ROD-PUSH	2 In-Stock
49078	49078-7003	SPRING-ENGINE VALVE	4 In-Stock
49118	49118-1319 (replaces part # 49118-0873)	CAMSHAFT-COMP	Usually ships in 7-10 business days
92009	92009-2341	SCREW	4 In-Stock
92049	92049-7020	SEAL-OIL,7X15X13	10+ In-Stock
92145	92145-1653	SPRING	Usually ships in 7-10 business days
92153	92154-7113 (replaces part # 92153-7019)	BOLT	7 In-Stock
92210	92210-7033	NUT,M6	Usually ships in 7-10 business days
