2019 Kawasaki Ninja 1000 (ABS) Ignition Switch/Locks/Reflectors OEM Parts Diagram

Submodel ZX1000WKF Ninja 1000 ABS (2019)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Ignition Switch/Locks/Reflectors

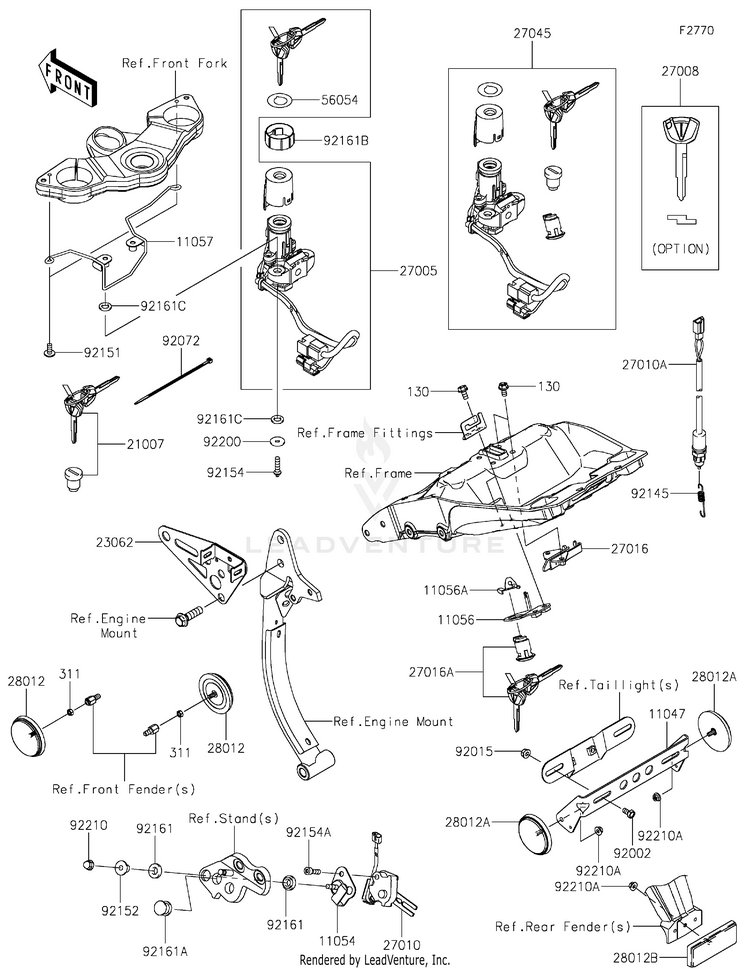

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1104711047-1470BRACKET,REFLECTOR
Usually ships in 7-10 business days
1105411054-1904BRACKET,SIDE STAND SWITCH
Usually ships in 7-10 business days
1105611056-0264BRACKET,KEY CYLINDER
Usually ships in 7-10 business days
11056A11056-1084BRACKET
Usually ships in 7-10 business days
1105711057-0420BRACKET,IG. SWITCH
Usually ships in 7-10 business days
130130BA0612BOLT-FLANGED,6X12
6 In-Stock
2100721007-5068ROTOR,LOCK,TANK CAP
Usually ships in 7-10 business days
2306223062-0902BRACKET-COMP,REGULATOR
Usually ships in 7-10 business days
2700527005-0568SWITCH-ASSY-IGNITION
Usually ships in 7-10 business days
2700827008-0069KEY-LOCK,BLANK
5 In-Stock
2701027010-0112SWITCH,SIDE STAND
Usually ships in 7-10 business days
27010A27010-0749SWITCH,STOP
Usually ships in 7-10 business days
2701627016-1115LOCK-ASSY,SEAT STRIKER
Usually ships in 7-10 business days
27016A27016-5368LOCK-ASSY,SEAT
Usually ships in 7-10 business days
2704527045-5492SWITCH-ASSY
Usually ships in 7-10 business days
2801228012-0001REFLECTOR-REFLEX,FR,SIDE
Usually ships in 7-10 business days
28012A28012-0002REFLECTOR-REFLEX
Usually ships in 7-10 business days
28012B28012-1077REFLECTOR-REFLEX
Usually ships in 7-10 business days
311311AB0500NUT-HEX,5MM
9 In-Stock
5605456054-0969MARK,IGNITION SWITCH
Usually ships in 7-10 business days
92002112BA0612

(replaces part #
92002-1132)

BOLT-UPSET
10+ In-Stock
9201592015-1367NUT,FLANGED,6MM
10+ In-Stock
9207292072-3768BAND,L=148
7 In-Stock
9214592145-0761SPRING,BRAKE LAMP SWITCH
Usually ships in 7-10 business days
9215192151-1654BOLT,SOCKET,6X14
10+ In-Stock
9215292152-1074COLLAR
Usually ships in 7-10 business days
9215492154-1129BOLT,TORX,6X24
Usually ships in 7-10 business days
92154A92154-1898BOLT,SOCKET,6X22
Usually ships in 7-10 business days
9216192161-0117DAMPER
Usually ships in 7-10 business days
92161A92161-0118DAMPER
Usually ships in 7-10 business days
92161B92161-1506DAMPER
Usually ships in 7-10 business days
92161C92161-1507DAMPER,10X17X3
Usually ships in 7-10 business days
9220092200-0212WASHER,6X20X1.6
5 In-Stock
9221092210-0003NUT,CAP,6MM
10+ In-Stock
92210A92210-0007NUT,FLANGED,5MM
3 In-Stock
