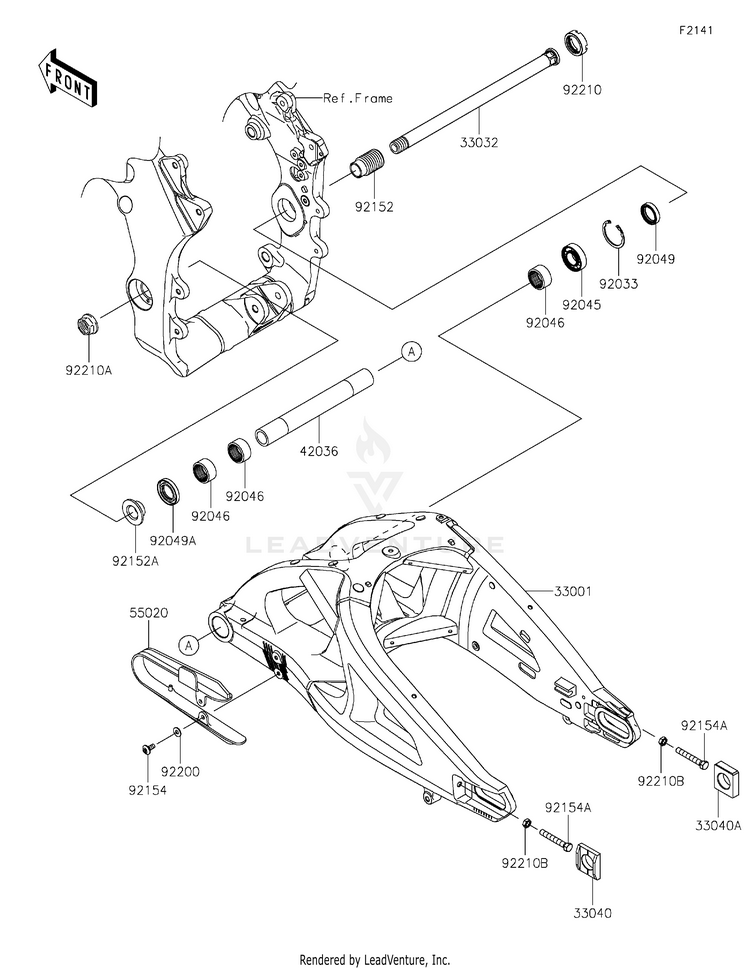

2019 Kawasaki Ninja ZX-10R Swingarm OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
33001	33001-0648	ARM-COMP-SWING	Usually ships in 7-10 business days
33032	33032-0048	SHAFT-SWING ARM	Usually ships in 7-10 business days
33040	33040-0107 (replaces part # 33040-0027)	ADJUSTER-CHAIN,LH	Usually ships in 7-10 business days
33040A	33040-1114	ADJUSTER-CHAIN,RH	Usually ships in 7-10 business days
42036	42036-1341	SLEEVE,SWING ARM PIVOT,L=226	Usually ships in 7-10 business days
55020	55020-0561	GUARD,CHAIN	Usually ships in 7-10 business days
92033	92033-1041	RING-SNAP,42MM	10+ In-Stock
92045	92045-0017	BEARING-BALL,6004UL11	2 In-Stock
92046	92046-0008	BEARING-NEEDLE,7E-HVS 28X34X17	7 In-Stock
92049	92049-1314	SEAL-OIL,MHSA25X42X6	10+ In-Stock
92049A	92049-1352	SEAL-OIL,MHSA25X34X7	1 In-Stock
92152	92152-2980 (replaces part # 92152-0154)	COLLAR,SWING ARM,L=47	Usually ships in 7-10 business days
92152A	92152-2169	COLLAR,20.2X25X15	Usually ships in 7-10 business days
92154	92154-1807	BOLT,SOCKET,6X14	Usually ships in 7-10 business days
92154A	92154-1962	BOLT-SMALL,8X55	Usually ships in 7-10 business days
92200	92200-1762	WASHER,6.2X15X1.2	9 In-Stock
92210	92210-0134	NUT,30MM	Usually ships in 7-10 business days
92210A	92210-0320	NUT,FLANGED,20MM	1 In-Stock
92210B	92210-1459	NUT-HEX-SMALL,8MM	Usually ships in 7-10 business days
