2019 Kawasaki Vulcan Classic VN900 Transmission OEM Parts Diagram

Submodel VN900BKF Vulcan 900 Classic (2019)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Transmission

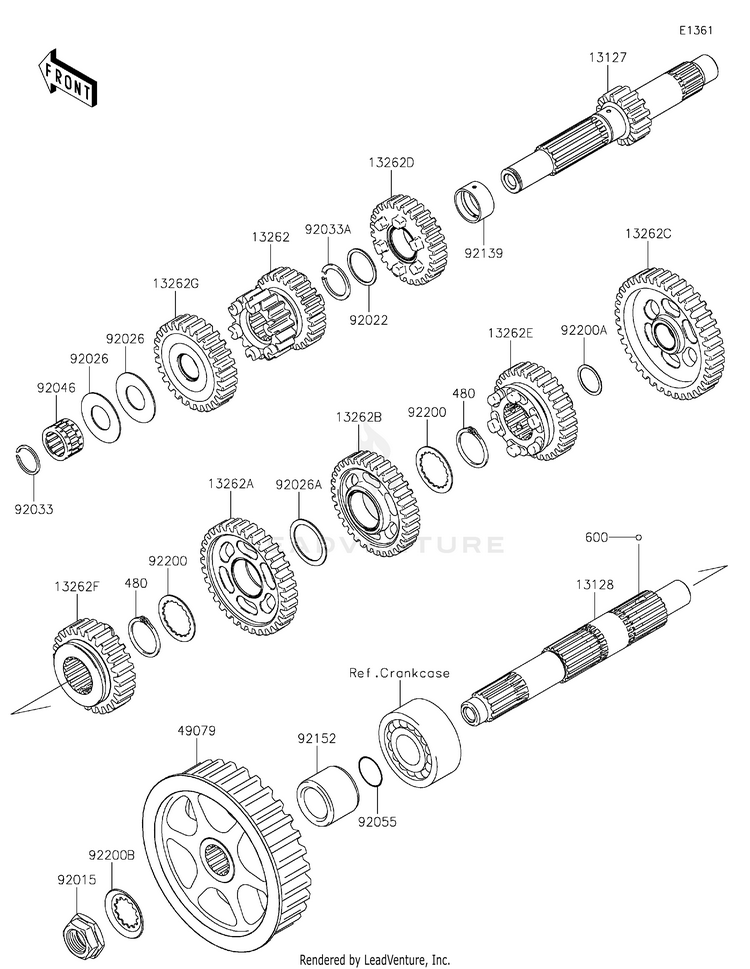

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1312713127-0038SHAFT-TRANSMISSION INPUT,14T
Usually ships in 7-10 business days
1312813128-0025SHAFT-TRANSMISSION OUTPUT
Usually ships in 7-10 business days
1326213262-0315GEAR,INPUT 2ND&3RD,18T&25T
Usually ships in 7-10 business days
13262A13262-0319GEAR,OUTPUT 2ND,34T
Usually ships in 7-10 business days
13262B13262-0320GEAR,OUTPUT 3RD,34T
Usually ships in 7-10 business days
13262C13262-0419GEAR,OUTPUT LOW,39T
Usually ships in 7-10 business days
13262D13262-0496GEAR,INPUT 4TH,28T
Usually ships in 7-10 business days
13262E13262-0497GEAR,OUTPUT 4TH,31T
Usually ships in 7-10 business days
13262F13262-0701GEAR,OUTPUT 5TH,26T
Usually ships in 7-10 business days
13262G13262-0703GEAR,INPUT 5TH,27T
Usually ships in 7-10 business days
480480J2900CIRCLIP
Usually ships in 7-10 business days
4907949079-0016PULLEY-BELT
Usually ships in 7-10 business days
600600A0500BALL-STEEL,5/32
Usually ships in 7-10 business days
9201592015-1963NUT,20MM
10+ In-Stock
9202292022-161WASHER,25.3X30X1
10+ In-Stock
9202692026-0102SPACER,20X51X1
Usually ships in 7-10 business days
92026A92026-079SPACER,30X38X1.0
Usually ships in 7-10 business days
9203392033-015RING-SNAP,20MM
2 In-Stock
92033A92033-026RING-SNAP,24MM
10+ In-Stock
9204692046-1303BEARING-NEEDLE,PK20X27X17X3
Usually ships in 7-10 business days
9205592055-035RING-O
10+ In-Stock
9213992139-0186BUSHING,4TH GEAR
Usually ships in 7-10 business days
9215292152-0335COLLAR
Usually ships in 7-10 business days
9220092200-0222WASHER,30.3X38X1.0
Usually ships in 7-10 business days
92200A92200-0291WASHER,20.2X25.0X0.5
Usually ships in 7-10 business days
92200B92200-0863WASHER
Usually ships in 7-10 business days
