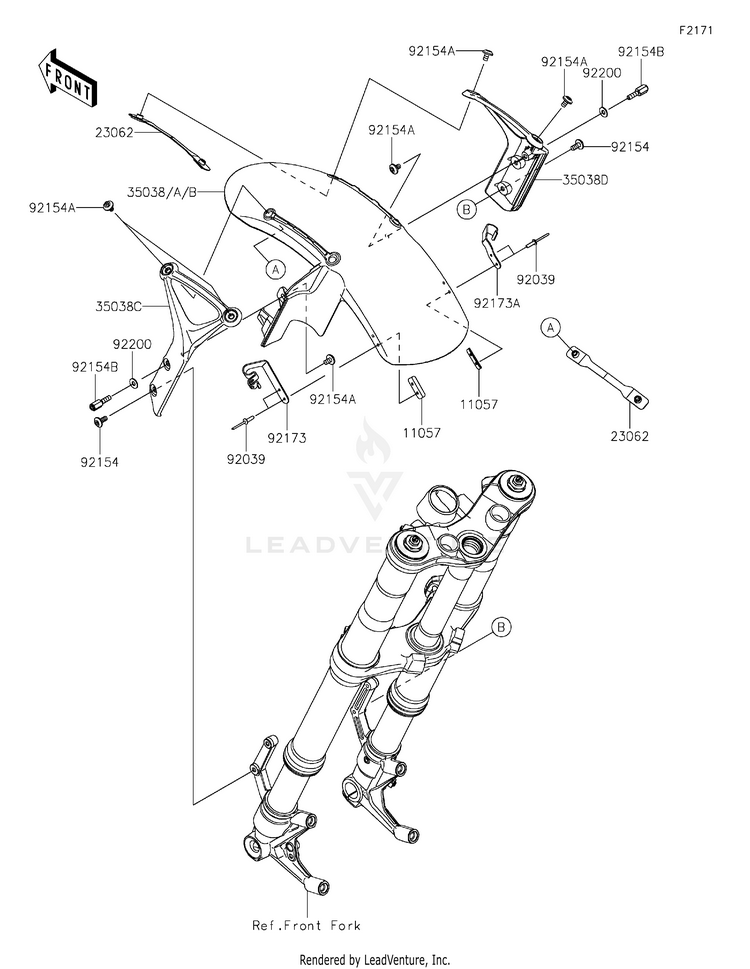

2019 Kawasaki Z900RS Cafe (ABS) Front Fender(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11057	11057-1565	BRACKET	Usually ships in 7-10 business days
23062	23062-0979	BRACKET-COMP	Usually ships in 7-10 business days
35038	35038-0002-45W	FENDER-FRONT,M.G.GRAY	Usually ships in 7-10 business days
35038A	35038-0002-62K	FENDER-FRONT,S.C.BLUE \| CN	Not Shipping
35038B	35038-0002-7F	FENDER-FRONT,V.L.GREEN \| CA,US	Usually ships in 7-10 business days
35038C	35038-0003-18R	FENDER-FRONT,ARM,LH,F.S.BLACK	Usually ships in 7-10 business days
35038D	35038-0004-18R	FENDER-FRONT,ARM,RH,F.S.BLACK	Usually ships in 7-10 business days
92039	92039-0752	RIVET,3.2X9.5	Usually ships in 7-10 business days
92154	92154-1735	BOLT,SOCKET,6X14	8 In-Stock
92154A	92154-1834	BOLT,SOCKET,6X10	Usually ships in 7-10 business days
92154B	92154-3734	BOLT,CONNECTOR	Usually ships in 7-10 business days
92173	92173-1739	CLAMP,LH	Usually ships in 7-10 business days
92173A	92173-1740	CLAMP,RH	Usually ships in 7-10 business days
92200	92200-1762	WASHER,6.2X15X1.2	9 In-Stock
