2020 Kawasaki BRUTE FORCE 750 4x4i Chassis Electrical Equipment OEM Parts Diagram

Submodel KVF750JLF Brute Force 750 4x4i EPS (2020)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Chassis Electrical Equipment

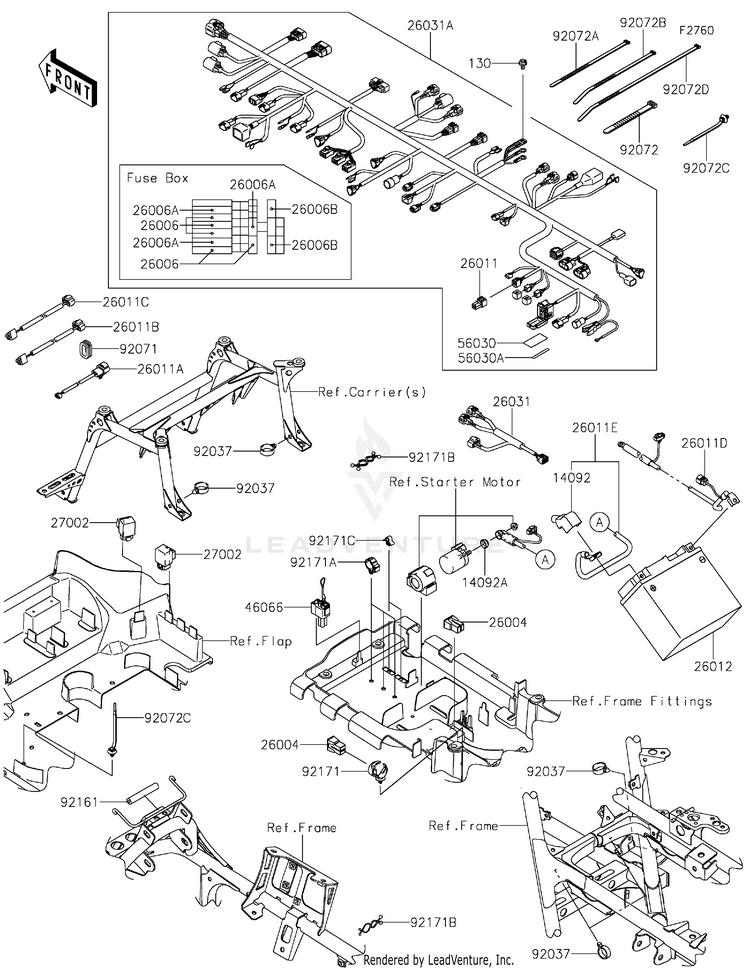

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0610BOLT-FLANGED,6X10
10+ In-Stock
1409214092-0767COVER
Usually ships in 7-10 business days
14092A14092-0851COVER,MAGNETIC SW.
Usually ships in 7-10 business days
2600426004-0035

(replaces part #
26004-1093)

FUSE-ASSY,40A
4 In-Stock
2600626006-0001FUSE,MINI BLADE,15A,BLUE
Usually ships in 7-10 business days
26006A26006-1078

(replaces part #
26006-0009)

FUSE,MINI BLADE,10A,RED
6 In-Stock
26006B26006-1080FUSE,MINI BLADE,30A,GREEN
Usually ships in 7-10 business days
2601126011-0271WIRE-LEAD,CAP
Usually ships in 7-10 business days
26011A26011-0312WIRE-LEAD,EPS EXTENSION
Usually ships in 7-10 business days
26011B26011-0721WIRE-LEAD,HEAD LAMP,RH
Usually ships in 7-10 business days
26011C26011-0743WIRE-LEAD,HEAD LAMP,LH
1 In-Stock
26011D26011-0744WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
26011E26011-0807WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
2601226012-1414BATTERY,MF,KMX14-BS,12V 12AH
2 In-Stock
2603126031-0752HARNESS,SUB
Usually ships in 7-10 business days
26031A26031-1656HARNESS,MAIN
Usually ships in 7-10 business days
2700227002-1062RELAY-ASSY
10+ In-Stock
4606646066-0001CONNECTOR-ASSY,RESET
2 In-Stock
5603056030-0401LABEL,FUSE BOX,10A&15A
Usually ships in 7-10 business days
56030A56030-0404LABEL,FUSE BOX,30A
Usually ships in 7-10 business days
9203792037-1827CLAMP,HOSE
10+ In-Stock
9207192071-0708GROMMET
Usually ships in 7-10 business days
9207292072-030BAND,L=123
7 In-Stock
92072A92072-056BAND,L=186
10+ In-Stock
92072B92072-1239BAND,L=188
9 In-Stock
92072C92072-1414BAND,OS170-FT7(BLACK)
10+ In-Stock
92072D92072-3509BAND,L=292.1
9 In-Stock
9216192161-0988DAMPER,4.5X11X68
Usually ships in 7-10 business days
9217192171-0068CLAMP,CLIP,DIA=20
Usually ships in 7-10 business days
92171A92171-0316CLAMP,BRAKE HOSE
5 In-Stock
92171B92171-0476CLAMP
Usually ships in 7-10 business days
92171C92171-0477CLAMP
Usually ships in 7-10 business days
