2020 Kawasaki BRUTE FORCE 750 4x4i Drive Shaft-Front 2 OEM Parts Diagram

Submodel KVF750JLF Brute Force 750 4x4i EPS (2020)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

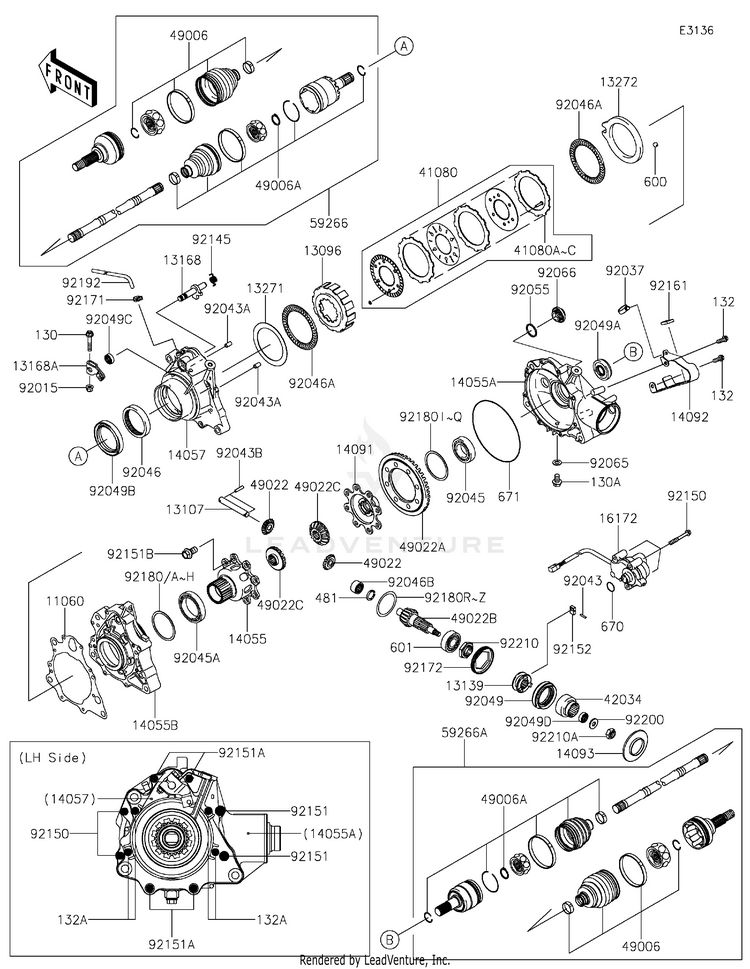

Drive Shaft-Front 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
92049A92049-1534SEAL-OIL,SDD7 22X48X7HS
4 In-Stock
92049B92049-1536SEAL-OIL,HTCY 62X81X10.5
6 In-Stock
92049C92049-1550SEAL-OIL,TC 12X22X7
2 In-Stock
92049D92049-1572SEAL-OIL,KB 13X19X13
3 In-Stock
9205592055-0122RING-O
6 In-Stock
9206592065-023GASKET,8.5X16X1
10+ In-Stock
9206692066-1303PLUG
1 In-Stock
9214592145-1344SPRING,DIFF RETURN
Usually ships in 7-10 business days
92150132BB0645

(replaces part #
92150-1884)

BOLT-FLANGED-SMALL,6X45
3 In-Stock
9215192151-1794BOLT,8X50
Usually ships in 7-10 business days
92151A92151-1795BOLT,6X60
Usually ships in 7-10 business days
92151B92154-4340

(replaces part #
92151-1910)

BOLT,10X19.5
Usually ships in 7-10 business days
9215292152-1349COLLAR
3 In-Stock
9216192161-1387DAMPER,20X20X5
Usually ships in 7-10 business days
9217192171-0515CLAMP
Usually ships in 7-10 business days
9217292172-0719SCREW,SET,64X10
Usually ships in 7-10 business days
9218092180-1390SHIM,62X71X0.15
Usually ships in 7-10 business days
92180A92180-1391SHIM,62X71X0.20
Usually ships in 7-10 business days
92180B92180-1392SHIM,62X71X0.50
Usually ships in 7-10 business days
92180C92180-1393SHIM,62X71X0.70
Usually ships in 7-10 business days
92180D92180-1394SHIM,62X71X0.80
Usually ships in 7-10 business days
92180E92180-1395SHIM,62X71X0.90
Usually ships in 7-10 business days
92180F92180-1396SHIM,62X71X1.00
Usually ships in 7-10 business days
92180G92180-1397SHIM,62X71X1.10
Usually ships in 7-10 business days
92180H92180-1398SHIM,62X71X1.20
Usually ships in 7-10 business days
92180I92180-1399SHIM,32X42X0.15
Usually ships in 7-10 business days
92180J92180-1400SHIM,32X42X0.20
Usually ships in 7-10 business days
92180K92180-1401SHIM,32X42X0.50
Usually ships in 7-10 business days
92180L92180-1402SHIM,32X42X0.70
Usually ships in 7-10 business days
92180M92180-1403SHIM,32X42X0.80
Usually ships in 7-10 business days
92180N92180-1404SHIM,32X42X0.90
Usually ships in 7-10 business days
92180O92180-1405SHIM,32X42X1.00
Usually ships in 7-10 business days
92180P92180-1406SHIM,32X42X1.10
Usually ships in 7-10 business days
92180Q92180-1407SHIM,32X42X1.20
Usually ships in 7-10 business days
92180R92180-1408SHIM,50X61X0.15
Usually ships in 7-10 business days
92180S92180-1409SHIM,50X61X0.20
Usually ships in 7-10 business days
92180T92180-1410SHIM,50X61X0.50
Usually ships in 7-10 business days
92180U92180-1411SHIM,50X61X0.70
Usually ships in 7-10 business days
92180V92180-1412SHIM,50X61X0.80
Usually ships in 7-10 business days
92180W92180-1413SHIM,50X61X0.90
Usually ships in 7-10 business days
