2020 Kawasaki BRUTE FORCE 750 4x4i Engine Cover(S) OEM Parts Diagram

Submodel KVF750LLF Brute Force 750 4x4i (2020)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Engine Cover(s)

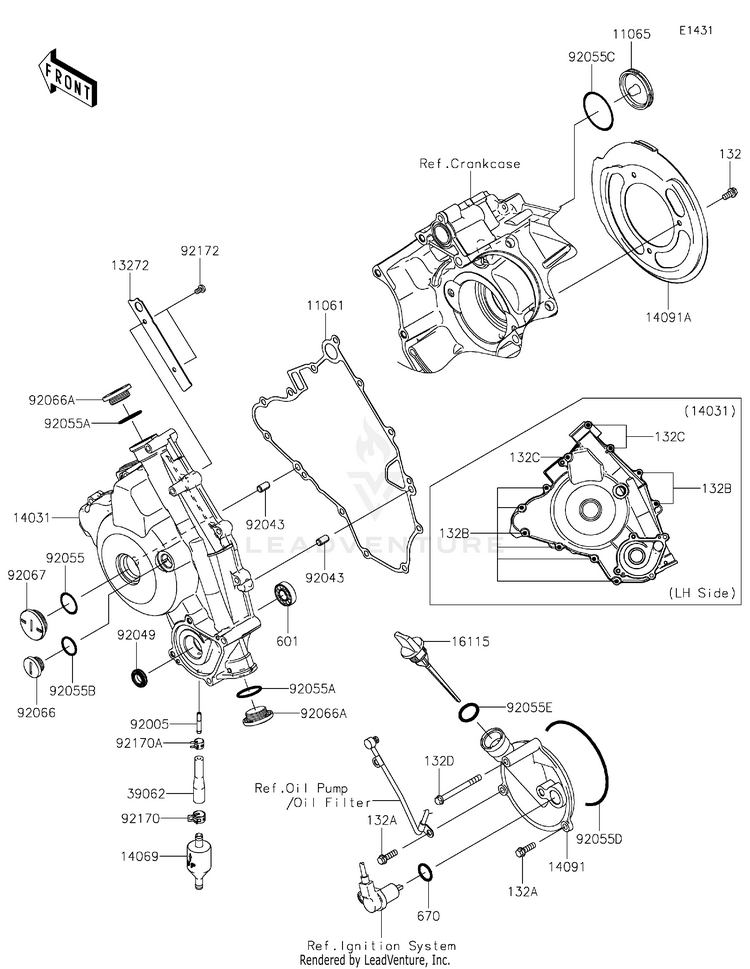

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106111061-1119GASKET
10+ In-Stock
1106511065-1151CAP
Usually ships in 7-10 business days
132132BA0612BOLT-FLANGED-SMALL,6X12
10+ In-Stock
1327213272-1090PLATE
Usually ships in 7-10 business days
132A132BA0620BOLT-FLANGED-SMALL,6X20
10+ In-Stock
132B132BA0630BOLT-FLANGED-SMALL,6X30
10+ In-Stock
132C132BA0655BOLT-FLANGED-SMALL,6X55
9 In-Stock
132D132BA0665BOLT-FLANGED-SMALL,6X65
6 In-Stock
1403114031-0127COVER-GENERATOR
Usually ships in 7-10 business days
1406914069-1051BREATHER
4 In-Stock
1409114091-1365COVER
Usually ships in 7-10 business days
14091A14091-1571COVER,BELT CONVERTER
Usually ships in 7-10 business days
1611516115-0001CAP-OIL FILLER
Usually ships in 7-10 business days
3906239062-1382HOSE-COOLING,CARBURETOR-VALVE
Usually ships in 7-10 business days
601601A6001BEARING-BALL
10+ In-Stock
670670D2018O RING,18MM
10+ In-Stock
9200592005-1264FITTING
Usually ships in 7-10 business days
9204392043-1263PIN,6.2X8X14
10+ In-Stock
9204992049-0783SEAL-OIL,12X22X5
10+ In-Stock
9205592055-091RING-O,27.7X2.4
10+ In-Stock
92055A92055-1136RING-O,25.7X2.4
10+ In-Stock
92055B92055-1146RING-O,20X2
10+ In-Stock
92055C92055-1279RING-O,44.7X2.4
10+ In-Stock
92055D92055-1632RING-O,99.5X2.0
6 In-Stock
92055E92055-2185RING-O,20X3
2 In-Stock
9206692066-0011PLUG,COVER
2 In-Stock
92066A92066-0012PLUG,25X8
5 In-Stock
9206792067-024PLUG,30X8
3 In-Stock
9217092170-1492CLAMP
10+ In-Stock
92170A92170-1493CLAMP
7 In-Stock
9217292172-0119SCREW,5X8
10+ In-Stock
