2020 Kawasaki BRUTE FORCE 750 4x4i Frame Fittings OEM Parts Diagram

Submodel KVF750GLF Brute Force 750 4x4i EPS (2020)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Frame Fittings

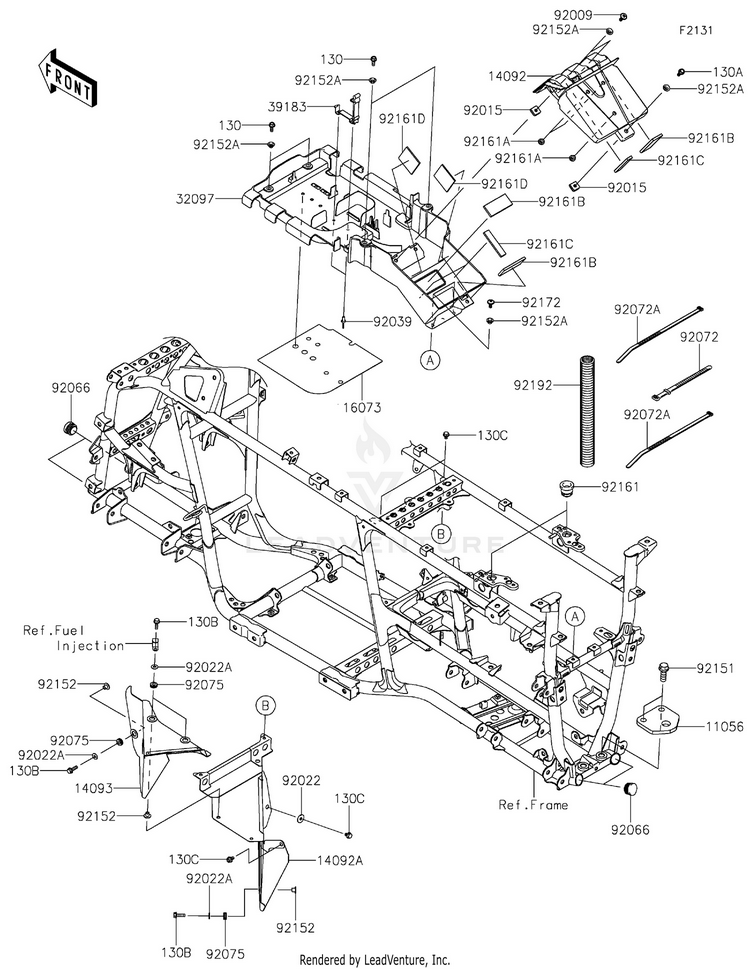

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-0299BRACKET,TRAILER HITCH
2 In-Stock
130130BA0616BOLT-FLANGED,6X16
7 In-Stock
130A130BA0618BOLT-FLANGED,6X18
8 In-Stock
130B130BA0620BOLT-FLANGED,6X20
10+ In-Stock
130C130BD0610BOLT-FLANGED,6X10
Usually ships in 7-10 business days
1409214092-0189COVER,BATTERY
2 In-Stock
14092A14092-0897COVER,HEAT GUARD,FR
Usually ships in 7-10 business days
1409314093-0021COVER,HEAT GUARD
Usually ships in 7-10 business days
1607316073-0809INSULATOR,BATTERY CASE
Usually ships in 7-10 business days
3209732097-0577

(replaces part #
32097-0041)

CASE-BATTERY
Usually ships in 7-10 business days
3918339183-1065BAND-ASSY,TOOL BAG
Usually ships in 7-10 business days
9200992009-1289SCREW,6X20
10+ In-Stock
9201592015-1094NUT,6MM
6 In-Stock
9202292200-0283

(replaces part #
92022-1804)

WASHER,6.5X20X1.6
10+ In-Stock
92022A92022-2373WASHER,6.2X15X1.2
Usually ships in 7-10 business days
9203992039-3719RIVET,4.8MM
Usually ships in 7-10 business days
9206692066-0036PLUG
5 In-Stock
9207292072-056BAND,L=186
10+ In-Stock
92072A92072-3509BAND,L=292.1
9 In-Stock
9207592075-2097DAMPER
Usually ships in 7-10 business days
9215192151-1903BOLT,FLANGED,12X35
2 In-Stock
9215292152-0237COLLAR,6.3X8.3X9.2
10+ In-Stock
92152A92152-1865COLLAR,6.3X8.3X7.2
10+ In-Stock
9216192161-0048DAMPER
4 In-Stock
92161A92161-1084DAMPER
3 In-Stock
92161B92161-1127DAMPER,30X70X5
6 In-Stock
92161C92161-1380DAMPER,15X70X5
Usually ships in 7-10 business days
92161D92161-1386DAMPER,50X50X3
Usually ships in 7-10 business days
9217292172-0401SCREW,6X14
10+ In-Stock
9219292192-1042TUBE,CORRUGATED,25.5X32.25X300
Usually ships in 7-10 business days
