2020 Kawasaki MULE Pro-FXT 820 EPS Air Cleaner OEM Parts Diagram

Submodel KAF820BLF Mule PRO-FXT EPS (2020)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

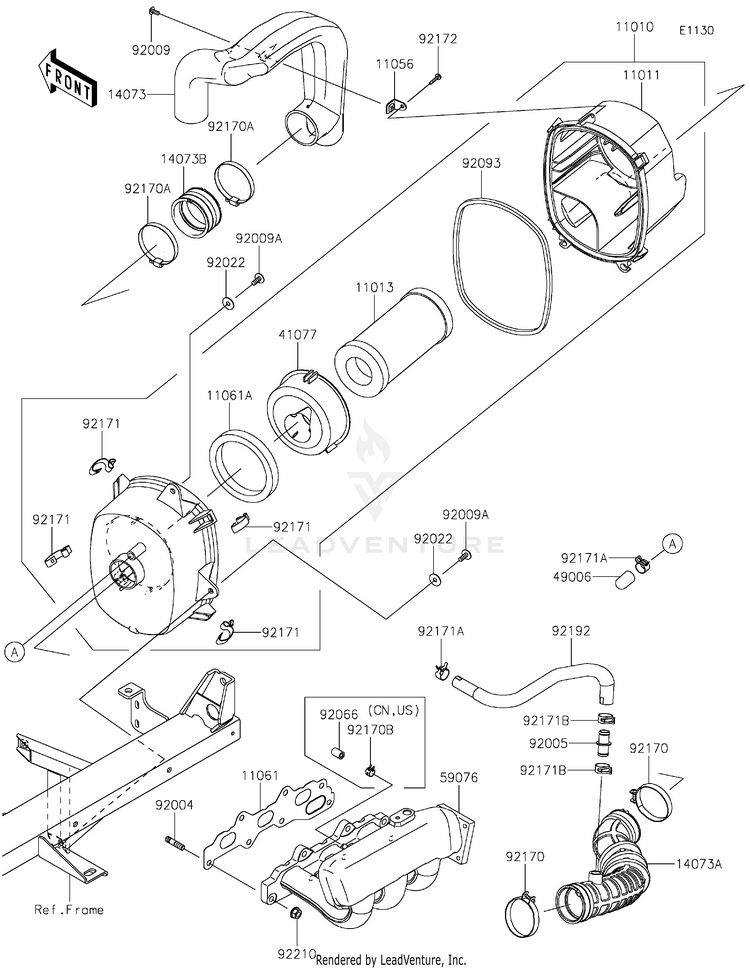

Air Cleaner

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101011010-0979

(replaces part #
11010-0860)

FILTER-ASSY-AIR
Usually ships in 7-10 business days
1101111011-0857CASE-AIR FILTER,UPP
Usually ships in 7-10 business days
1101311013-1290ELEMENT-AIR FILTER
10+ In-Stock
1105611056-3734BRACKET,AIR FILTER
Usually ships in 7-10 business days
1106111061-0956GASKET,INTAKE MANIFOLD
Usually ships in 7-10 business days
11061A11061-0961GASKET,ADAPTER
10+ In-Stock
1407314073-0786DUCT,INTAKE
Usually ships in 7-10 business days
14073A14073-0992DUCT,INTAKE
Usually ships in 7-10 business days
14073B14073-1775DUCT,JOINT
2 In-Stock
4107741077-0719ADAPTER,ELEMENT
Usually ships in 7-10 business days
4900649006-0555BOOT
1 In-Stock
5907659076-0017MANIFOLD-INTAKE
Usually ships in 7-10 business days
9200492004-0734STUD
Usually ships in 7-10 business days
9200592005-0992FITTING,DUCT-BREATHER TUBE
Usually ships in 7-10 business days
9200992009-1154SCREW,5X12
Usually ships in 7-10 business days
92009A92009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
9202292022-165WASHER,PLAIN,6.5X20X1
6 In-Stock
9206692066-0862PLUG | CN,US
Usually ships in 7-10 business days
9209392093-0607SEAL,AIR FILTER
Usually ships in 7-10 business days
9217092170-1448CLAMP
10+ In-Stock
92170A92170-1764CLAMP
10+ In-Stock
92170B92170-2043CLAMP | CN,US
Usually ships in 7-10 business days
9217192171-0225CLAMP
6 In-Stock
92171A92171-0533CLAMP
Usually ships in 7-10 business days
92171B92171-2056CLAMP,18.8MM
Usually ships in 7-10 business days
9217292172-0009SCREW,TAPPING,5X20
5 In-Stock
9219292192-2365TUBE,BREATHER
Usually ships in 7-10 business days
9221092210-0944NUT
Usually ships in 7-10 business days
