2020 Kawasaki Vulcan Classic VN900 Frame Fittings OEM Parts Diagram

Submodel VN900BLF Vulcan 900 Classic (2020)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Frame Fittings

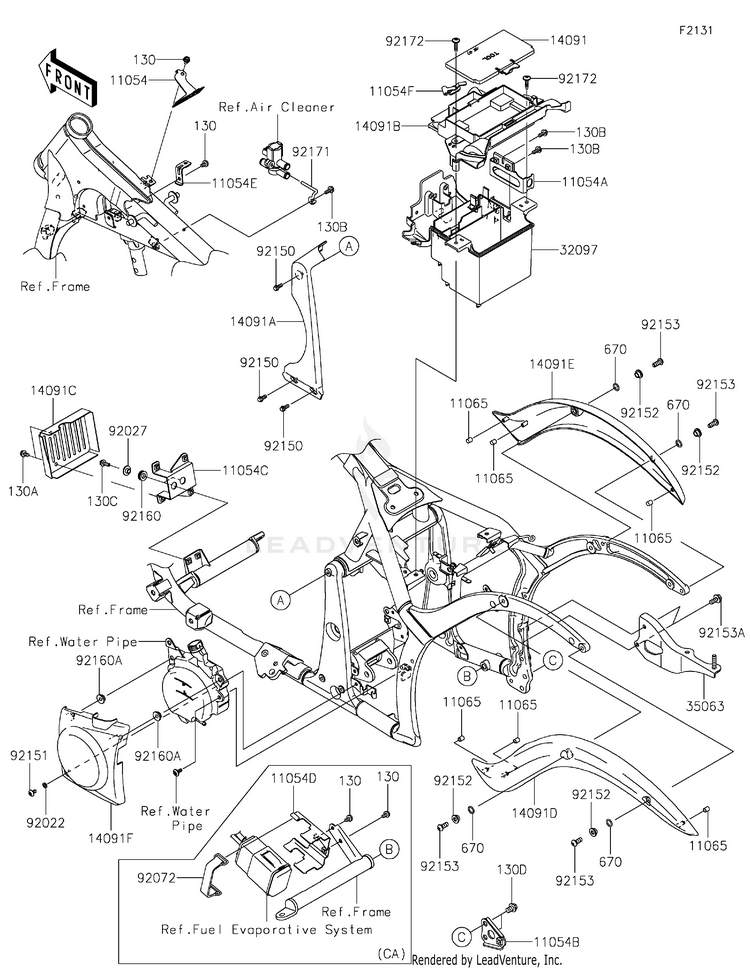

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105411054-0119BRACKET,FRONT COUPLER
Usually ships in 7-10 business days
11054A11054-0120BRACKET,RELAY BOX
1 In-Stock
11054B11054-0122BRACKET,MUFFLER
Usually ships in 7-10 business days
11054C11054-0124BRACKET,REGULATOR
Usually ships in 7-10 business days
11054D11054-0147BRACKET,CANISTER | CA
Usually ships in 7-10 business days
11054E11054-0736BRACKET,BOOST SENSOR
Usually ships in 7-10 business days
11054F11054-0738BRACKET,HELMET LOCK
Usually ships in 7-10 business days
1106511065-0156CAP
Usually ships in 7-10 business days
130130BB0610BOLT-FLANGED,6X10 | CN,US
10+ In-Stock
130A130BB0612BOLT-FLANGED,6X12
10+ In-Stock
130B130BB0614BOLT-FLANGED,6X14
10+ In-Stock
130C130BB0620BOLT-FLANGED,6X20
7 In-Stock
130D130BB1014BOLT-FLANGED,10X14
Usually ships in 7-10 business days
1409114091-0520COVER,TOOL CASE
Usually ships in 7-10 business days
14091A14091-0526COVER,PIVOT
Usually ships in 7-10 business days
14091B14091-0733COVER,BATTERY CASE&TOOL CASE
1 In-Stock
14091C14091-0836COVER,REGULATOR
Usually ships in 7-10 business days
14091D14091-1728COVER,FENDER,LH
Usually ships in 7-10 business days
14091E14091-1729COVER,FENDER,RH
Usually ships in 7-10 business days
14091F14091-1772COVER,RESERVOIR TANK
Usually ships in 7-10 business days
3209732097-0021CASE-BATTERY
1 In-Stock
3506335063-0342-18RSTAY,MUFFLER,F.S.BLACK
Usually ships in 7-10 business days
670670B2012O RING,12MM
10+ In-Stock
9202292022-183WASHER,6.2X11X1.5
8 In-Stock
9202792027-1848COLLAR,L=7.4
Usually ships in 7-10 business days
9207292072-1384BAND | CA
2 In-Stock
9215092150-1689BOLT,FLANGED,6X14
10+ In-Stock
9215192151-1940BOLT,SOCKET,6X12
1 In-Stock
9215292152-0381COLLAR
10+ In-Stock
9215392153-0912BOLT,SOCKET,8X20
Usually ships in 7-10 business days
92153A92153-1704BOLT,FLANGED,8X20
Usually ships in 7-10 business days
9216092160-1278DAMPER
Usually ships in 7-10 business days
92160A92160-1613DAMPER
10+ In-Stock
9217192171-0600CLAMP
Usually ships in 7-10 business days
9217292172-0137SCREW,6X26
Usually ships in 7-10 business days
