2021 Kawasaki MULE Pro-FXT 820 Chassis Electrical Equipment OEM Parts Diagram

Submodel KAF820AMFNL Mule PRO-FXT (2021)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Chassis Electrical Equipment

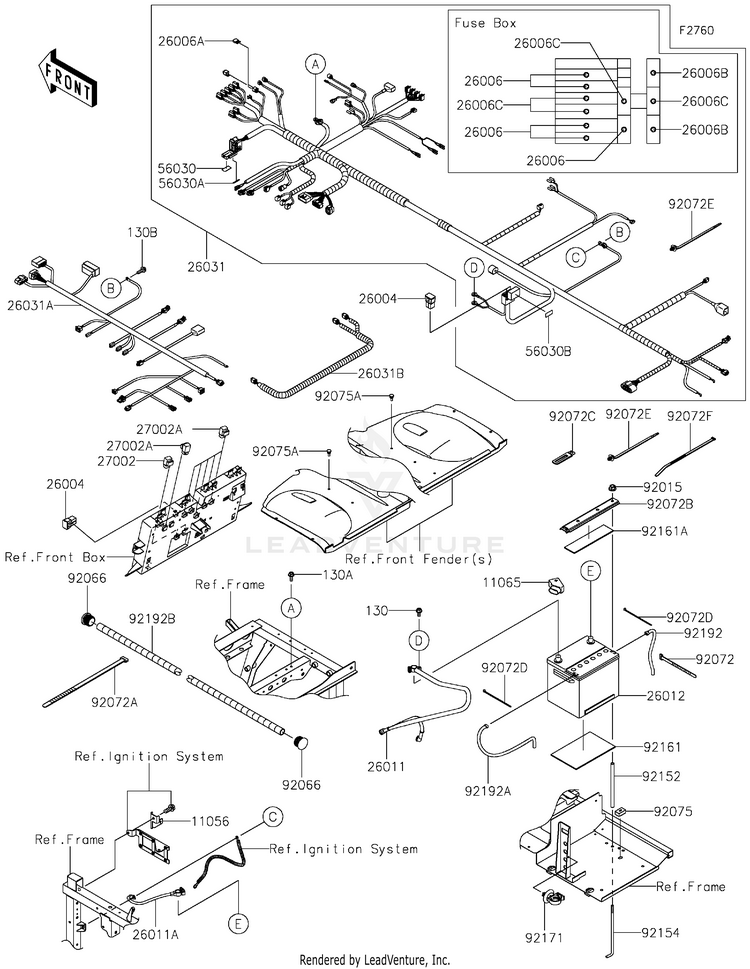

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-4397BRACKET
Usually ships in 7-10 business days
1106511065-0850CAP
Usually ships in 7-10 business days
130130BA0614BOLT-FLANGED,6X14
10+ In-Stock
2600426004-0024FUSE-ASSY,60A
Usually ships in 7-10 business days
2600626006-1078

(replaces part #
26006-0009)

FUSE,MINI BLADE,10A,RED
6 In-Stock
26006A26006-0052FUSE,MINI BLADE,2A,GRAY
Usually ships in 7-10 business days
26006B26006-1080FUSE,MINI BLADE,30A,GREEN
Usually ships in 7-10 business days
26006C26006-3704FUSE,MINI BLADE,20A,YELLOW
Usually ships in 7-10 business days
2601126011-0851WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
26011A26011-0912WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
2601226012-0619BATTERY,12V 32AH
10+ In-Stock
2603126031-2107HARNESS,MAIN
Usually ships in 7-10 business days
26031A26031-2111HARNESS
Usually ships in 7-10 business days
26031B26031-2226HARNESS,SUB
Usually ships in 7-10 business days
2700227002-0022RELAY-ASSY
Usually ships in 7-10 business days
27002A27002-1062RELAY-ASSY
10+ In-Stock
5603056030-0850LABEL,FUSE BOX1
Usually ships in 7-10 business days
56030A56030-0854LABEL,FUSE BOX2
Usually ships in 7-10 business days
56030B56030-0891LABEL,FUSE CASE
Usually ships in 7-10 business days
9201592015-1406NUT,FLANGED,8MM
10+ In-Stock
9206692066-0908PLUG
Usually ships in 7-10 business days
9207292072-030BAND,L=123
7 In-Stock
92072A92072-032BAND,L=218
10+ In-Stock
92072B92072-0767BAND
Usually ships in 7-10 business days
92072C92072-0770BAND
Usually ships in 7-10 business days
92072D92072-0791BAND,92X2.4
Usually ships in 7-10 business days
92072E92072-1414BAND,OS170-FT7(BLACK)
10+ In-Stock
92072F92072-3509BAND,L=292.1 | US
9 In-Stock
9207592075-099DAMPER
10+ In-Stock
92075A92075-1808DAMPER,6X10X15
Usually ships in 7-10 business days
9215292152-1852COLLAR,9.4X12.7X190.8
Usually ships in 7-10 business days
9215492154-1650BOLT,BATTERY
Usually ships in 7-10 business days
9216192161-0578DAMPER
Usually ships in 7-10 business days
92161A92161-1753DAMPER
Usually ships in 7-10 business days
9217192171-0453CLAMP
8 In-Stock
9219292192-1646TUBE,BREATHER,7X10X240
Usually ships in 7-10 business days
92192A92192-1694TUBE,BREATHER,7X10X450
Usually ships in 7-10 business days
92192B92192-1814TUBE,CONVOLUTED
Usually ships in 7-10 business days
