2021 Kawasaki MULE Pro-FXT 820 Drive Shaft-Front OEM Parts Diagram

Submodel KAF820AMFNL Mule PRO-FXT (2021)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Drive Shaft-Front

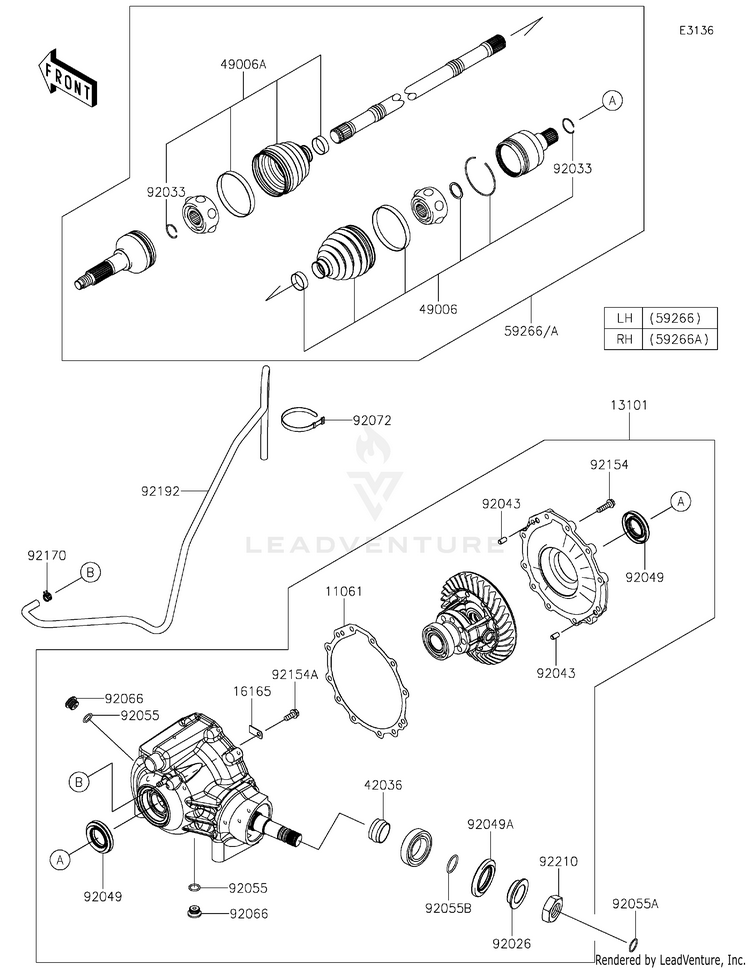

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106111061-1413GASKET,CASE
Usually ships in 7-10 business days
1310113101-0687GEAR-ASSY,FRONT DIFFERENTIAL
Usually ships in 7-10 business days
1616516165-0019SEPARATOR
Usually ships in 7-10 business days
4203642036-0873SLEEVE
Usually ships in 7-10 business days
4900649006-0641BOOT,INSIDE
Usually ships in 7-10 business days
49006A49006-0681

(replaces part #
49006-0642)

BOOT,OUTSIDE
Usually ships in 7-10 business days
5926659266-0757JOINT-BALL,FR,LH
Usually ships in 7-10 business days
59266A59266-0758JOINT-BALL,FR,RH
Usually ships in 7-10 business days
9202692026-0916SPACER
Usually ships in 7-10 business days
9203392033-0849RING-SNAP
Usually ships in 7-10 business days
9204392043-1750PIN,DOWEL,8X14
Usually ships in 7-10 business days
9204992049-0856SEAL-OIL,TC9 35X62X9
Usually ships in 7-10 business days
92049A92049-0857SEAL-OIL,TC7 45X72X7
Usually ships in 7-10 business days
9205592055-0862RING-O
10+ In-Stock
92055A92055-1617RING-O,22.1X1.9
4 In-Stock
92055B92055-1719RING-O
Usually ships in 7-10 business days
9206692066-0982PLUG,M18
Usually ships in 7-10 business days
9207292072-056BAND,L=186
10+ In-Stock
9215492154-4354BOLT,FLANGED,8X30
Usually ships in 7-10 business days
92154A92154-4355BOLT,FLANGED,8X16
Usually ships in 7-10 business days
9217092170-2082CLAMP
Usually ships in 7-10 business days
9219292192-1341TUBE,BREATHER
Usually ships in 7-10 business days
9221092210-1884NUT,M30
Usually ships in 7-10 business days
