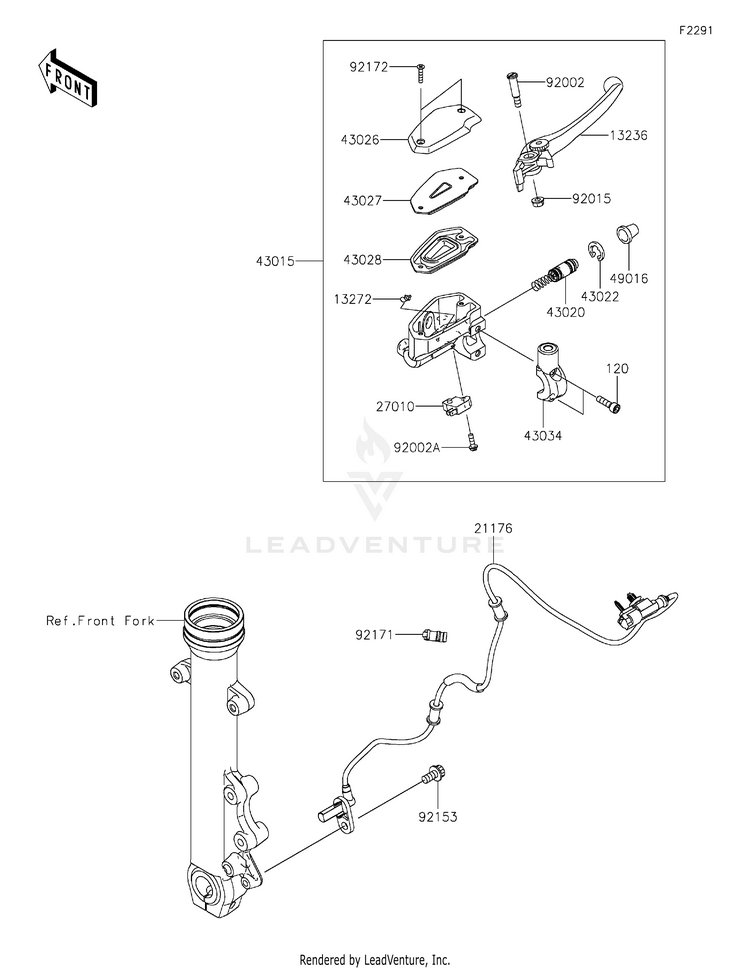

2021 Kawasaki Vulcan S Cafe (ABS) Front Master Cylinder(Emfnn/Emfnl) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	MSRP	Our Price	Stock Status
120	120CB0622	BOLT-SOCKET,6X22			Usually ships in 7-10 business days
13236	13236-0140	LEVER-COMP,FRONT BRAKE			Usually ships in 7-10 business days
13272	13272-0573	PLATE			Usually ships in 7-10 business days
21176	21176-0804	SENSOR,FR WHEEL SPEED			Usually ships in 7-10 business days
27010	27010-0762	SWITCH,BRAKE			Usually ships in 7-10 business days
43015	43015-0606	CYLINDER-ASSY-MASTER,FR			Usually ships in 7-10 business days
43020	43020-1098 (replaces part # 43020-1095)	PISTON-COMP-BRAKE			Usually ships in 7-10 business days
	AFTERMARKET ALTERNATIVE		$29.80	$28.31	10+ In-Stock
43022	43022-1010	STOPPER-BRAKE,PISTON			8 In-Stock
43026	43026-0019	CAP-BRAKE			Usually ships in 7-10 business days
43027	43027-0008	PLATE-DIAPHRAGM			Usually ships in 7-10 business days
43028	43028-0015	DIAPHRAGM			Usually ships in 7-10 business days
43034	43034-0049	HOLDER-BRAKE,MASTER CYLINDER			Usually ships in 7-10 business days
49016	49016-1044	COVER-SEAL,MASTER CYLINDER			6 In-Stock
92002	92002-1322	BOLT,LEVER SET,BLACK			2 In-Stock
92002A	92002-1323	BOLT,SCREW,4X12			5 In-Stock
92015	92015-1528	NUT,FLANGED,6MM			10+ In-Stock
92153	92153-0327	BOLT,SOCKET,8X16			Usually ships in 7-10 business days
92171	92171-1819	CLAMP,BRAKE HOSE			Usually ships in 7-10 business days
92172	92172-0320	SCREW,4X20			Usually ships in 7-10 business days
