2022 Kawasaki KLR650 Adventure ABS Engine Mount OEM Parts Diagram

Submodel KL650HNFAL KLR650 Adventure (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

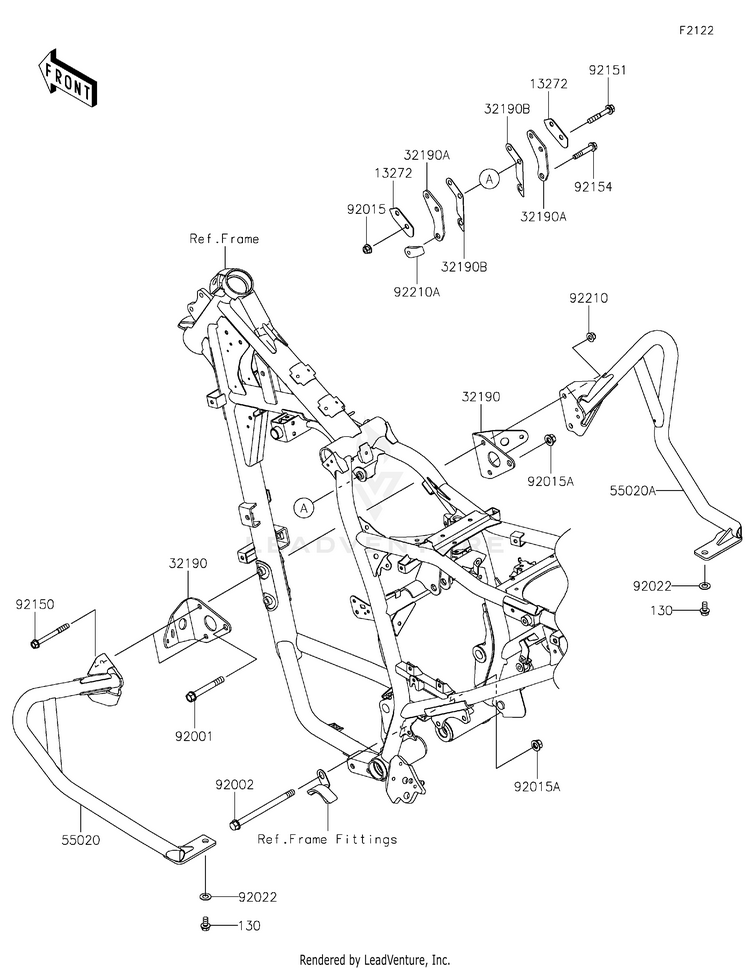

Engine Mount

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA0816BOLT-FLANGED,8X16
10+ In-Stock
1327213272-3910PLATE
Usually ships in 7-10 business days
3219032190-0858BRACKET-ENGINE,LWR
Usually ships in 7-10 business days
32190A32190-0859BRACKET-ENGINE,UPP
Usually ships in 7-10 business days
32190B32190-0860BRACKET-ENGINE
Usually ships in 7-10 business days
5502055020-2341GUARD,LH
Usually ships in 7-10 business days
55020A55020-2342GUARD,RH
1 In-Stock
9200192001-4021BOLT,10X75
1 In-Stock
9200292002-1348BOLT,10X145
1 In-Stock
9201592015-1406NUT,FLANGED,8MM
10+ In-Stock
92015A92015-1415NUT,FLANGED,10MM
10+ In-Stock
9202292022-239WASHER,10.5X20X1
10+ In-Stock
9215092150-1162BOLT,8X80
Usually ships in 7-10 business days
9215192151-1463BOLT,8X50
Usually ships in 7-10 business days
9215492154-3733BOLT,FLANGED,8X45
Usually ships in 7-10 business days
9221092210-0159NUT,FLANGED,LOCK,8MM
10+ In-Stock
92210A92210-0608NUT,PLATE,8MM
Usually ships in 7-10 business days
