2022 Kawasaki MULE 4010 TRANS 4x4 Camo Crankcase OEM Parts Diagram

Submodel KAT620CNFNN Mule 4010 Trans4x4 (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

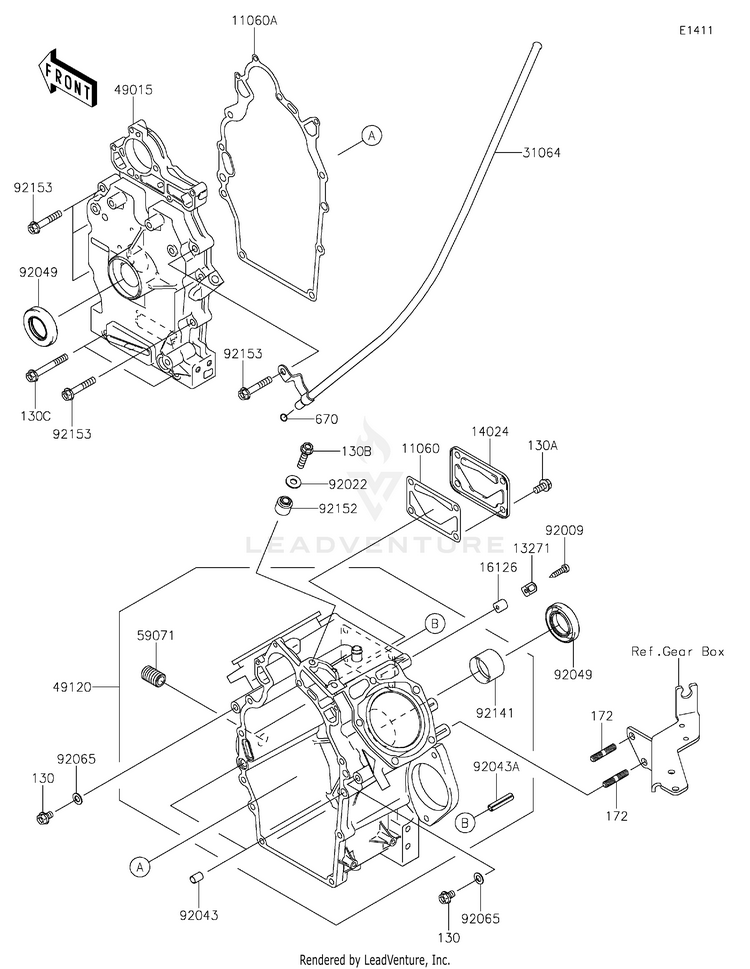

Crankcase

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-2089GASKET,BREATHER,COVER
5 In-Stock
11060A11061-1680

(replaces part #
11060-2449)

GASKET,CRANKCASE COVER
9 In-Stock
130130AB0812BOLT-FLANGED,8X12
Usually ships in 7-10 business days
130A130BA0816BOLT-FLANGED,8X16
10+ In-Stock
130B130BA0835BOLT-FLANGED,8X35
8 In-Stock
130C130CA0860BOLT-FLANGED,8X60
10+ In-Stock
1327113271-2054PLATE
Usually ships in 7-10 business days
1402414024-2292COVER
Usually ships in 7-10 business days
1612616126-2146VALVE
7 In-Stock
172172BA0825BOLT-STUD,8X25
10+ In-Stock
3106431064-0713PIPE-COMP
1 In-Stock
4901549015-6324COVER-CRANKCASE
Usually ships in 7-10 business days
4912049120-0847CRANKCASE-COMP
1 In-Stock
5907159071-0743

(replaces part #
59071-0733)

JOINT,OIL FILTER
1 In-Stock
670670B2010O RING,10MM
10+ In-Stock
9200992009-2308SCREW
3 In-Stock
9202292022-1561WASHER,8.5X20X1.6
10+ In-Stock
9204392043-1037PIN,DOWEL,10X14
10+ In-Stock
92043A92043-2227PIN,2X25
Usually ships in 7-10 business days
9204992049-2112SEAL-OIL
10+ In-Stock
9206592065-023GASKET,8.5X16X1
10+ In-Stock
9214192141-2122BEARING-PLANE
5 In-Stock
9215292152-1901COLLAR
Usually ships in 7-10 business days
9215392153-2130BOLT,FLANGED,8X45
Usually ships in 7-10 business days
